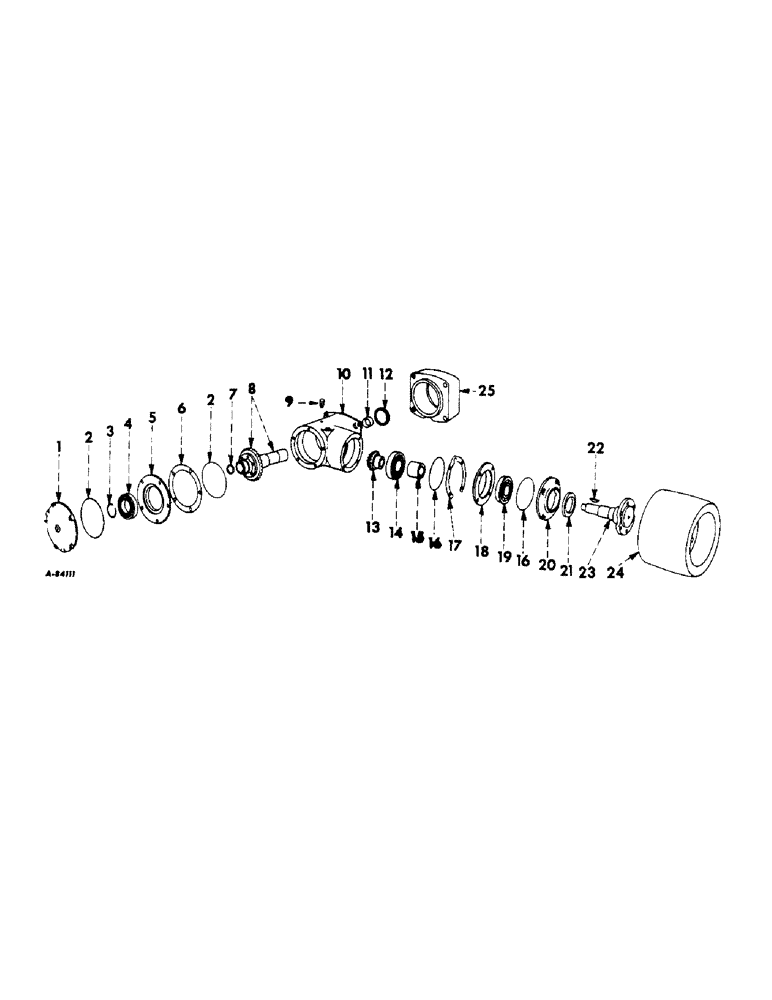

Запчасти Case IH 2544 (B-31) - POWER TRAIN, BELT PULLEY (03) - POWER TRAIN

NSS

NOT SOLD SEPARAT

ATTACHMENT, belt pulley, 389268R91

1шт.

1

373059R1

RETAINER, pulley drive gear brg

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto. Hex Socket

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

5шт.

2

252741R1

O-RING

5-3/4 x 6 x 1/8

2шт.

3

358236R1

RING

pulley drive gear bearing snap

1шт.

4

ST414

BEARING

pulley drive gear ball

1шт.

5

373055R1

CAGE, pulley drive gear bearing

1шт.

6

373058R1

SHIM, pulley drive gear bearing cage, heavy, .030

1шт.

6

373056R1

SHIM, pulley drive gear bearing cage, light, .007

1шт.

6

373057R1

SHIM, pulley drive gear bearing cage, medium, .012

1шт.

7

145201R1

PLUG

cup

1шт.

8

373053R12

GEAR, w/plug, 145201R1, belt pulley drive, 31 T

1шт.

14277R1

RIVET, 5/16 x 1-5/16 rd-hd

6шт.

9

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

PLUG, vent

1шт.

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

BUSHING, 1/4 x 1/8 reducing pipe

1шт.

10

384320R11

HOUSING, assy, pulley drive, composed of (1) bushing 364725R2, (1) housing 384320R1 (NSS), (2) plug 444576, (1) plug 9409949

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4 stl Hex Socket drain

2шт.

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG, 3/4 stl sq-hd pipe filler

1шт.

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

4шт.

11

364725R2

BUSHING, pulley drive gear hub

1шт.

12

365416R91

OIL SEAL

pulley drive gear hub oil

1шт.

13

373060R1

GEAR, pulley shaft, 16 teeth

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, pulley shaft gear retainer

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

358235R1

WASHER, pulley shaft gear retainer

1шт.

14

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

BEARING, pulley shaft inner ball

1шт.

15

373061R1

SPACER, pulley shaft bearing

1шт.

16

293729R1

RING

O-RING, 4-3/4 x 5 x 1/8, pulley shaft bearing cage or retainer

2шт.

17

NSS

NOT SOLD SEPARAT

SHIM, pulley shaft bearing cage, not serviced separately

1шт.

18

364740R1

CAGE, pulley shaft bearing

1шт.

19

ST251

BALL BEARING,45 mm ID x 25 mm

BEARING, pulley shaft outer ball

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER, pulley shaft bearing, not serviced separately

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

4шт.

21

365434R91

OIL SEAL

SEAL, pulley shaft bearing retainer oil

1шт.

22

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 woodruff 127

1шт.

23

384326R1

SHAFT, pulley

1шт.

24

364748R91

PULLEY, belt, 11 inch dia. x 7-1/2 inch face

1шт.

181428

BOLT,Hex, 1/2" - 20 x 1 1/8", Gr 5

SCREW, 1/2-20 x 1-1/8 hex-hd cap

6шт.

25

389970R1

FLANGE, belt pulley housing spacer

1шт.
