(L-13) - WHEELS AND WHEEL WEIGHTS, REAR WHEEL HUB, INTERNATIONAL TRACTORS

Запчасти Case IH 2544 (L-13) - WHEELS AND WHEEL WEIGHTS, REAR WHEEL HUB, INTERNATIONAL TRACTORS Wheels & Wheel Weights

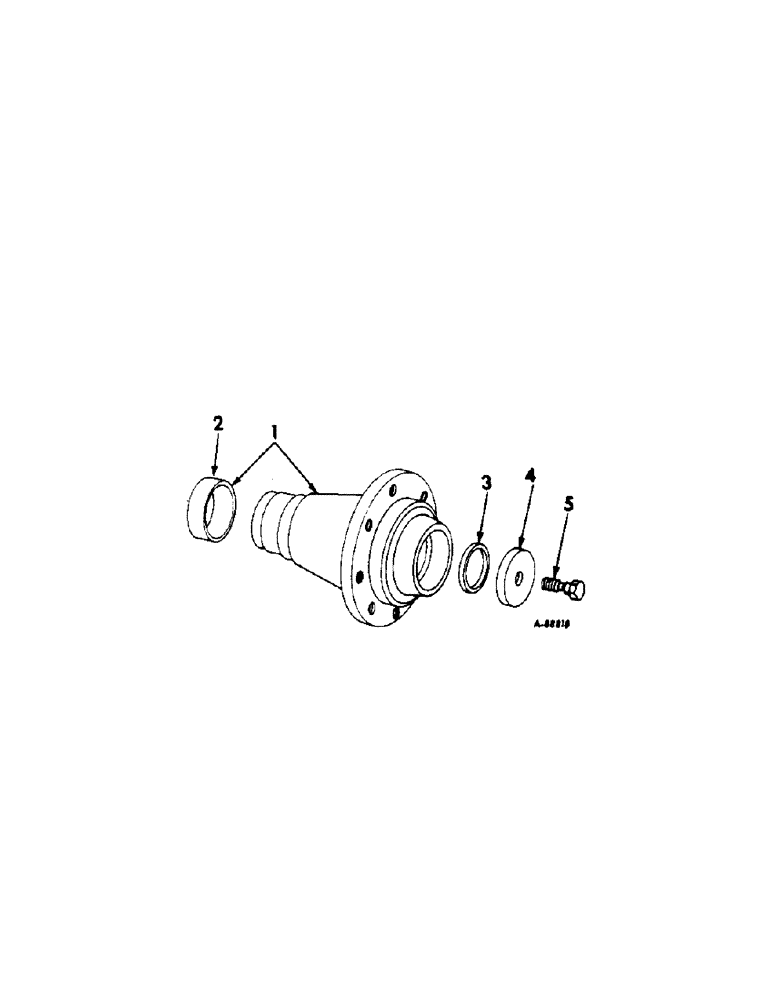

Схема запчастей Case IH 2544 - (L-13) - WHEELS AND WHEEL WEIGHTS, REAR WHEEL HUB, INTERNATIONAL TRACTORS Wheels & Wheel Weights
4
5
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

400619R91

HUB CAP

HUB ASSY, rear wheel

2шт.

522067R2

BOLT,9/16" - 18 x 2 11/32", Grade 5

rear wheel mounting

16шт.

124634

NUT,9/16"-18, G5

16шт.

2

379244R1

RING

WEAR RING, rear wheel

2шт.

3

25024R1

O-RING,Rect, 2.375" ID x 2.75" OD, Cl 5

RING, rear axle sealing

2шт.

4

49793D

WASHER

WASHER, rear wheel hub retainer

2шт.

5

379245R1

BOLT,Hex, 3/4" - 16 x 2"

rear wheel hub retainer

2шт.
