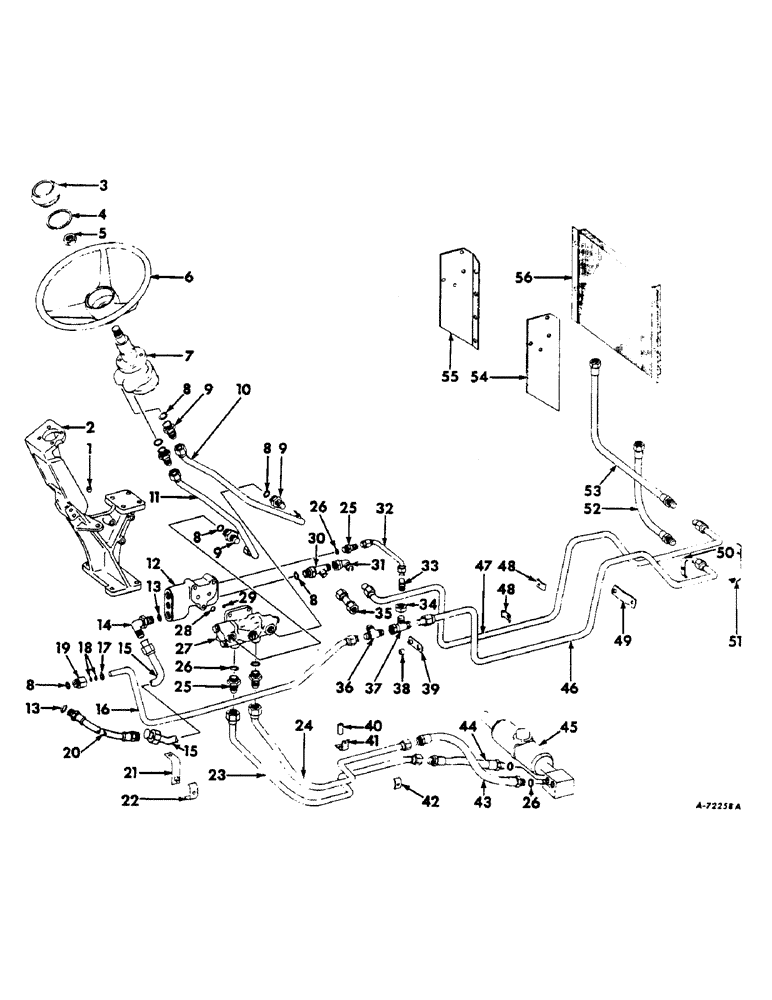

Запчасти Case IH 2504 (176) - STEERING MECHANISM, POWER STEERING, INTERNATIONAL TRACTORS Steering Mechanism

1

373091R1

BUSHING

governor control shaft

1шт.

2

379347R1

SUPPORT, steering

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

6шт.

3

378395R1

CAP

steering wheel monogrammed

1шт.

4

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

RETAINER, steering wheel cap O-ring

1шт.

5

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

6

385156R1

WHEEL (STEERING)

WHEEL, steering 16 in. dia

1шт.

6

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

7

378578R93

HYDRAULIC STEERING

PUMP ASSY, power steering hand, for components see list of parts under details of hydrastatic power steering hand pump

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 5/64, connector

6шт.

9

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, hand pump LH and RH tubes

1шт.

10

379648R11

TUBE ASSY, hand pump LH

1шт.

11

379649R11

TUBE ASSY, hand pump RH

1шт.

12

386910R91

VALVE ASSY, flow divider, will work for 392665R91, for components see list of parts under details of power steering flow divider valve

1шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64, flow divider to transfer block tube

1шт.

14

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

flow divider to transfer block tube

1шт.

115

379646R11

TUBE ASSY, flow divider to transfer block, order hose 383446R91 and tube 383445R11, Serial Range: 501-3953

1шт.

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, transfer block tube

1шт.

15

383445R11

TUBE ASSY, flow divider to transfer block, 3954 up

1шт.

16

381444R21

TUBE W/ADAPTER AND RETAINER RETURN

1шт.

17

381750R1

RETAINER, return tube adapter

1шт.

18

381756R91

PACKAGE, adapter O-ring and back-up washer service

1шт.

19

381748R1

ADAPTER, return tube

1шт.

20

383446R11

HOSE ASSY, flow divider to transfer block, 3954 up

1шт.

21

381764R11

BRACKET ASSY, rear return tube, Serial Range: 501-3953

1шт.

21

383447R11

BRACKET ASSY, rear return tube, 3954 up

1шт.

22

384972R1

CLAMP, return tube bracket

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

23

379651R11

LINE

TUBE ASSY, power steering cylinder no. 2

1шт.

24

379650R11

LINE

TUBE ASSY, power steering cylinder no. 1

1шт.

25

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube

3шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector and hose

5шт.

27

379645R93

VALVE

ASSY, power steering pilot, for components see list of parts under details of power steering pilot valve

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

28

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, pilot valve large

1шт.

29

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pilot valve small

1шт.

30

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

flow divider

1шт.

31

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

oil cooler inlet tube

1шт.

32

381454R11

TUBE ASSY, flow divider return

1шт.

33

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

return tube

1шт.

34

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, return tube

1шт.

35

383887R92

PIPE FITTING

VALVE ASSY, oil cooler relief

1шт.

36

9402982

TEE,3/4"-16, 37 Degree

return tube

1шт.

37

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

oil cooler return tube

1шт.

38

23501S

SPACER, oil cooler tube bracket, carbureted engine tractors, Serial Range: 501-3412

1шт.

38

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

SPACER, oil cooler tube bracket, diesel engine tractors

1шт.

39

382772R11

BRACKET ASSY, oil cooler tube engine mounting rear, carbureted engine tractors

1шт.

39

381449R11

BRACKET ASSY, oil cooler tube engine mounting rear, diesel engine tractors

1шт.

40

616005R1

SPACER, tube support

1шт.

41

379790R11

SUPPORT ASSY, front tubes, carbureted engine tractors

1шт.

41

381894R11

SUPPORT ASSY, front tubes, diesel engine tractors

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

42

381394R1

CLAMP

front tube bracket

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

80682

LOCK WASHER,1/4"

WASHER, lock, 1/4"

1шт.

43

382029R91

HOSE

ASSY, power steering cylinder no. 1

1шт.

44

381210R92

HOSE

ASSY, power steering cylinder no. 2

1шт.

45

391982R91

CYLINDER

ASSY, power steering, for components see list of parts under details of power steering cylinder

1шт.

46

381457R11

TUBE ASSY, oil cooler return, carbureted engine tractors

1шт.

46

381445R11

TUBE ASSY, oil cooler return, diesel engine tractors

1шт.

47

381458R11

TUBE ASSY, oil cooler inlet, carbureted engine tractors

1шт.

47

381446R11

TUBE ASSY, oil cooler inlet, diesel engine tractors

1шт.

48

381448R1

CLAMP

oil cooler tube bracket

2шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

49

382417R11

BRACKET ASSY, oil cooler tube engine mounting front, carbureted engine tractors

1шт.

49

381449R11

BRACKET ASSY, oil cooler tube engine mounting front, diesel engine tractors

1шт.

50

381451R1

CLAMP, oil cooler tube front bracket

1шт.

109084

NUT,1/4"-20, G5

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

51

381450R1

BRACKET, oil cooler tube front

1шт.

52

384183R91

HOSE ASSY, oil cooler outlet

1шт.

53

381452R91

HOSE ASSY, oil cooler inlet

1шт.

54

380710R11

BRACKET ASSY, oil cooler RH

1шт.

55

380709R11

BRACKET ASSY, oil cooler LH

1шт.

56

380485R91

COOLER ASSY, oil

1шт.

377681R1

SCREW, 5/16-18 x 3/8 slt-hex, washer hd cap, oil cooler mounting

4шт.
