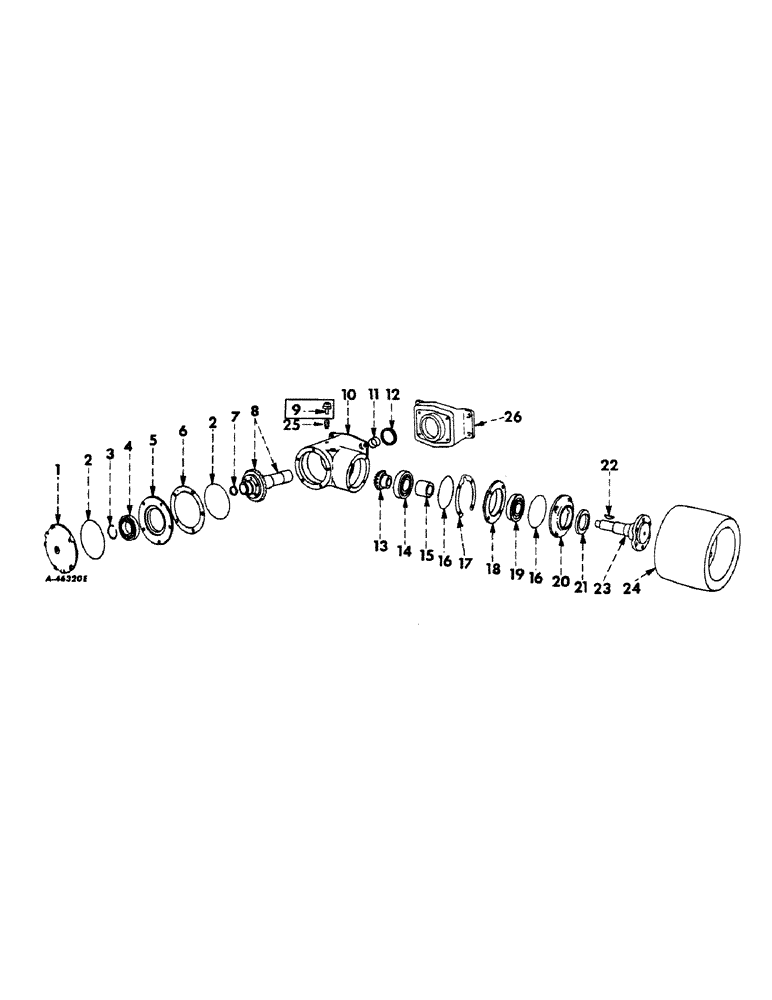

Запчасти Case IH 2504 (165) - REAR FRAME AND DRIVING MECHANISMS, BELT PULLEY Rear Frame & Driving Mechanisms

NSS

NOT SOLD SEPARAT

ATTACHMENT, belt pulley unit, 364702R92, for tractors equipped with independent PTO, when it is desired to mount this belt pulley unit on a PTO w/o provision for mounting the belt pulley, order separately and install the following parts

1шт.

1

373059R1

RETAINER, pulley drive gear bearing

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto. Hex Socket

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

5шт.

2

252741R1

O-RING

5-3/4 x 6 x 1/8, bearing retainer or cage

1шт.

3

358236R1

RING

pulley drive gear bearing snap

1шт.

4

ST382

BEARING, BALL

BEARING, pulley drive gear ball

1шт.

5

373055R1

CAGE, pulley drive gear bearing

1шт.

6

373058R1

SHIM, pulley drive gear bearing cage heavy, .030

1шт.

6

373056R1

SHIM, pulley drive gear bearing cage light, .007

1шт.

6

373057R1

SHIM, pulley drive gear bearing cage medium, .012

1шт.

7

145201R1

PLUG

cup

1шт.

8

364727R91

GEAR W/PLUG, 145201R1, belt pulley drive, 28T

1шт.

9

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

10

384320R11

HOUSING ASSY, pulley drive, composed of (1) bushing 364725R2, (1) housing 384320R1 (NSS), (2) plug 444576, (1) plug 9409949

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto. Hex Socket

2шт.

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG, 3/4-14 auto. sq-soc pipe

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

11

364725R2

BUSHING, pulley drive gear hub

1шт.

12

365416R91

OIL SEAL

pulley drive gear hub oil

1шт.

13

364736R1

GEAR, pulley shaft, 16 teeth

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, pulley shaft gear retainer

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

358235R1

WASHER, pulley shaft gear retainer

1шт.

14

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

BEARING, pulley shaft inner ball

1шт.

15

364744R1

SPACER, pulley shaft bearing

1шт.

16

293729R1

RING

O-RING, 4-3/4 x 5 x 1/8, pulley shaft bearing cage or retainer

2шт.

17

364743R2

SHIM, pulley shaft bearing cage heavy, .030

1шт.

17

364742R2

SHIM, pulley shaft bearing cage medium, .012

1шт.

17

364741R2

SHIM, pulley shaft bearing cage light, .007

1шт.

18

364740R1

CAGE, pulley shaft bearing

1шт.

19

ST294

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

BEARING, pulley shaft outer ball

1шт.

20

364737R1

RETAINER, pulley shaft bearing

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

365434R91

OIL SEAL

SEAL, pulley shaft bearing retainer oil

1шт.

22

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 Woodruff 127

1шт.

23

384326R1

SHAFT, pulley

1шт.

24

364748R91

PULLEY, belt, 11 inch dia x 7-1/2 inch face

1шт.

181429

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

SCREW, 1/2-20 x 1-1/4 hex-hd cap

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

25

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

PLUG, vent

1шт.

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

BUSHING, 1/4 x 1/8 reducing pipe

1шт.

26

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.
