(079[A]) - LUBRICATION SYSTEM, OIL FILTER, CARBURETED ENGINE TRACTORS

Запчасти Case IH 2504 (079[A]) - LUBRICATION SYSTEM, OIL FILTER, CARBURETED ENGINE TRACTORS Lubrication System

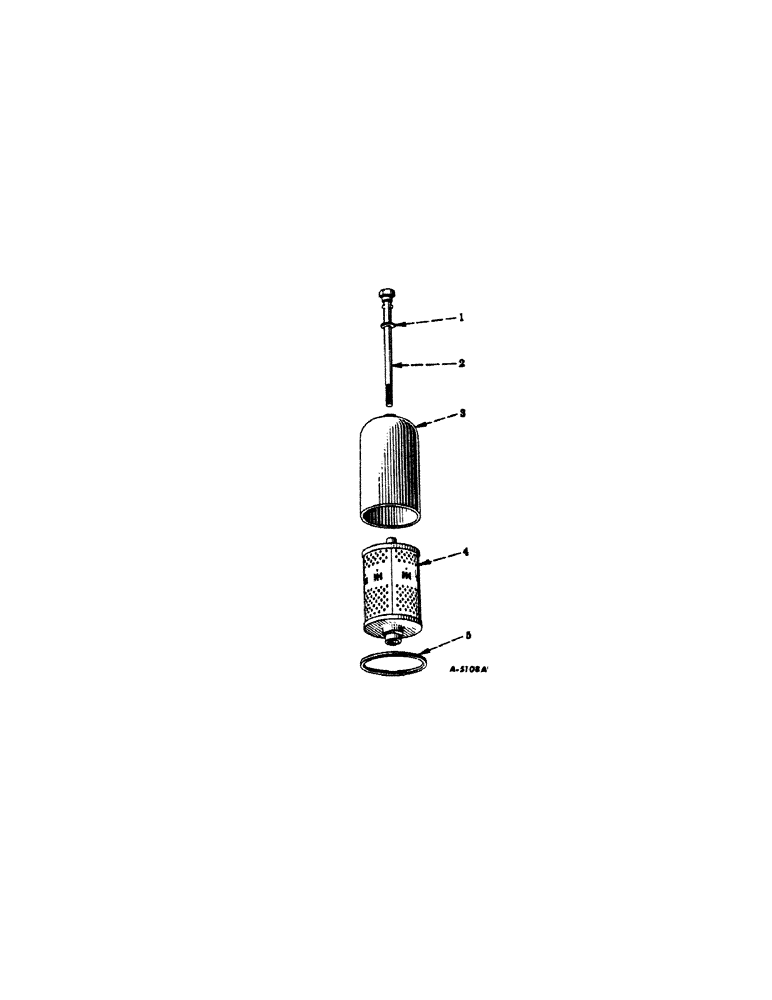

Схема запчастей Case IH 2504 - (079[A]) - LUBRICATION SYSTEM, OIL FILTER, CARBURETED ENGINE TRACTORS Lubrication System
1
4
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13727D

GASKET

GASKET, oil filter retaining unit

1шт.

2

63857DA

BOLT

BAR, oil filter retaining

1шт.

3

63856D

CASE

oil filter

1шт.

4

376374R91

FILTER, ENGINE OIL

ELEMENT, oil filter

1шт.

4

376374R91GV

FILTER

Value, Oil Filter

1шт.

5

13728D

GASKET

oil filter case

1шт.
