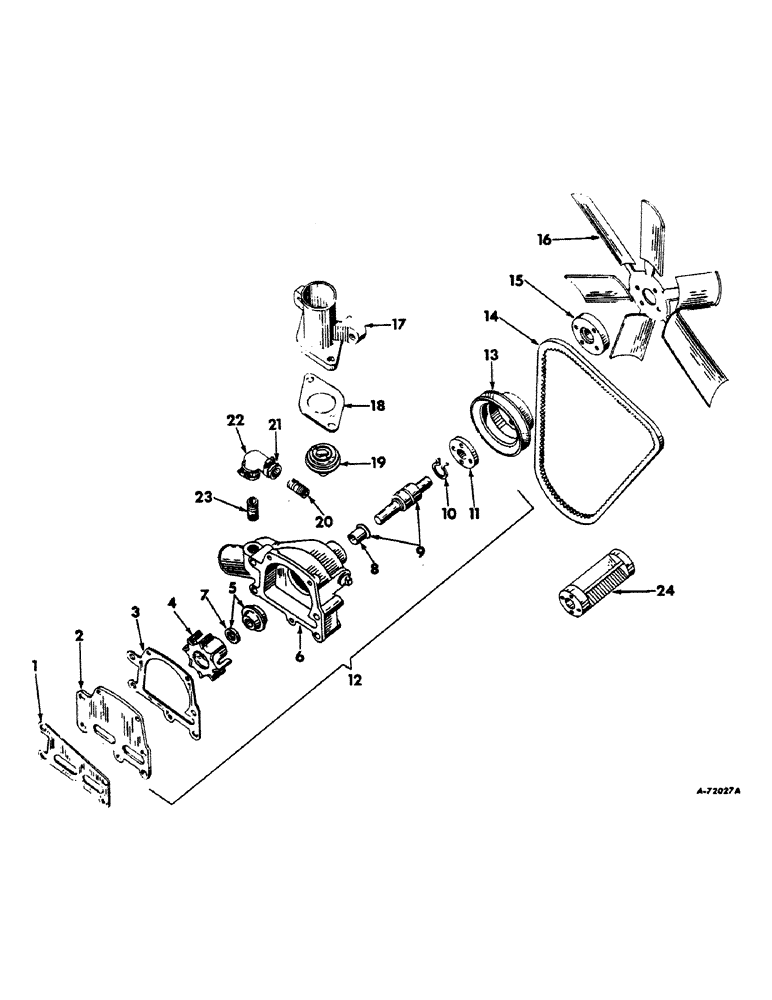

Запчасти Case IH 2504 (068) - COOLING SYSTEM, FAN, THERMOSTAT AND WATER PUMP, DIESEL ENGINE TRACTORS COOLING SYSTEM

1

69676R1

GASKET

GASKET, water pump

1шт.

2

69675R1

PLATE

PLATE, water pump

1шт.

441444

SPARE PART

SCREW, 1/4 x 1/2 slt-pan-hd mach

3шт.

3

69674R1

GASKET

GASKET, water pump plate

1шт.

4

387931R1

TORQ CONV IMPELLER

IMPELLER, water pump, also order seal package 607467C91

1шт.

5

607467C91

SEAL KIT

PACKAGE, water pump seal

1шт.

6

318118R21

BODY

BODY ASSY, water pump

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 auto. sq-hd pipe

1шт.

7

265164C91

PACKING RING

RETAINER & SEAL ASSY, water pump

1шт.

8

71351R1

SLINGER

SLINGER, water pump

1шт.

9

ST680

SHAFT

SHAFT ASSY, w/bearing

1шт.

10

102069H

RING

RETAINER, bearing

1шт.

11

368501R2

HUB CAP

HUB, pulley

1шт.

12

601816C91

WATER PUMP

PUMP ASSY, water

1шт.

12

749170C91

REMAN-WATER PUMP

Remanufactured, Water Pump

1шт.

12

1928129C1

CORE-WATER PUMP

Return Part Number

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/2", G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

308384R1

PULLEY

PULLEY, water pump

1шт.

14

315969R1

BELT

Fan, Water pump and generator

1шт.

15

316169R1

SPARE PART SPACER, fan, International tractors

1шт.

16

377989R91

SPARE PART BLADE ASSY, fan, 6 blade, Farmall tractors, Serial Range: 501-4241

1шт.

16

377367R91

FAN

BLADE ASSY, fan, 6 blade, Farmall tractors 4242 up

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

377367R91

FAN

BLADE ASSY, fan, 6 blade, International tractors

1шт.

181321

BOLT,Hex, 1/4" - 28 x 1 3/4", Gr 5

SCREW, 1/4-28 x 1-3/4 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

368504R1

OUTLET

OUTLET, water

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, 7/16-14 x 2-1/2 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

18

368505R1

GASKET

GASKET, water outlet

1шт.

19

108120R91

THERMOSTAT

THERMOSTAT, 168-172 deg opening

1шт.

20

169193R1

PIPE

NIPPLE, water by-pass, in cylinder head

1шт.

21

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, hose

2шт.

22

169192R1

HOSE

ELBOW, water by-pass

1шт.

23

169193R1

PIPE

NIPPLE, water by-pass, in water pump

1шт.

24

377055R2

SPACER

EXTENSION, fan hub, Farmall tractors

1шт.

181315

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5, Full Thd

4шт.

374544R94

KIT

PACKAGE, water pump service, consists of (1) impeller 387931R1 (1) retainer 265164C91 (1) retainer 265158C2 (NSS) (1) seal 968917R1 (NSS) (1) seal 73296R93 (1) shaft ST680 (1) shaft 368500R91 (NSS) (1) slinger 71351R1 (1) retainer 102069H

1шт.
