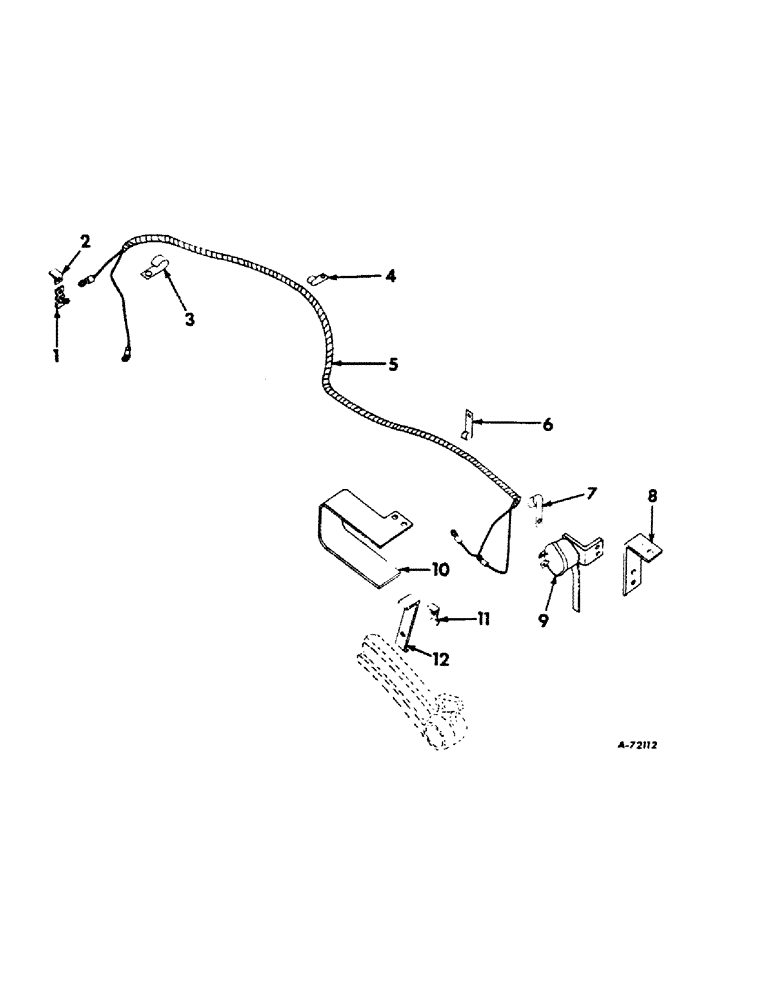

Запчасти Case IH 2504 (139) - ELECTRICAL SYSTEM, SAFETY STARTING SWITCH, FARMALL TRACTORS (06) - ELECTRICAL SYSTEMS

1

42915D

BLOCK

junction

1шт.

110633

NUT,#10-24

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

10-24 x 1/2 slt-rd-hd mach

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

2

42916D

BRACKET, junction block

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

359562R1

CLIP, cable harness, on cranking motor RH mounting bolt

1шт.

4

355097R1

CLIP, cable, on rear steering shaft support LH rear mounting bolt

1шт.

5

375478R91

HARNESS ASSY, safety starting switch

1шт.

6

351913R1

CLIP, cable harness, on LH platform rear mounting bolt

1шт.

7

362121R1

CLIP

cable harness, on safety starting switch bracket

1шт.

8

379406R1

BRACKET, safety starting switch mounting

1шт.

109084

NUT,1/4"-20, G5

2шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

9

375477R91

SWITCH

ASSY, safety starting

1шт.

125981

SCREW, 10-32 x 5/16 hex-hd mach

2шт.

10

379407R1

SHIELD, safety starting switch

1шт.

110633

NUT,#10-24

2шт.

106695

SCREW, 10-24 x 1/2 slt-tr-hd mach

2шт.

11

379408R1

CLAMP, safety starting switch

1шт.

12

379409R1

CLAMP, safety starting switch

1шт.

18306R1

LOCK NUT,1/4"-20, GB

NUT, 1/4-20 ESNA stop

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.
