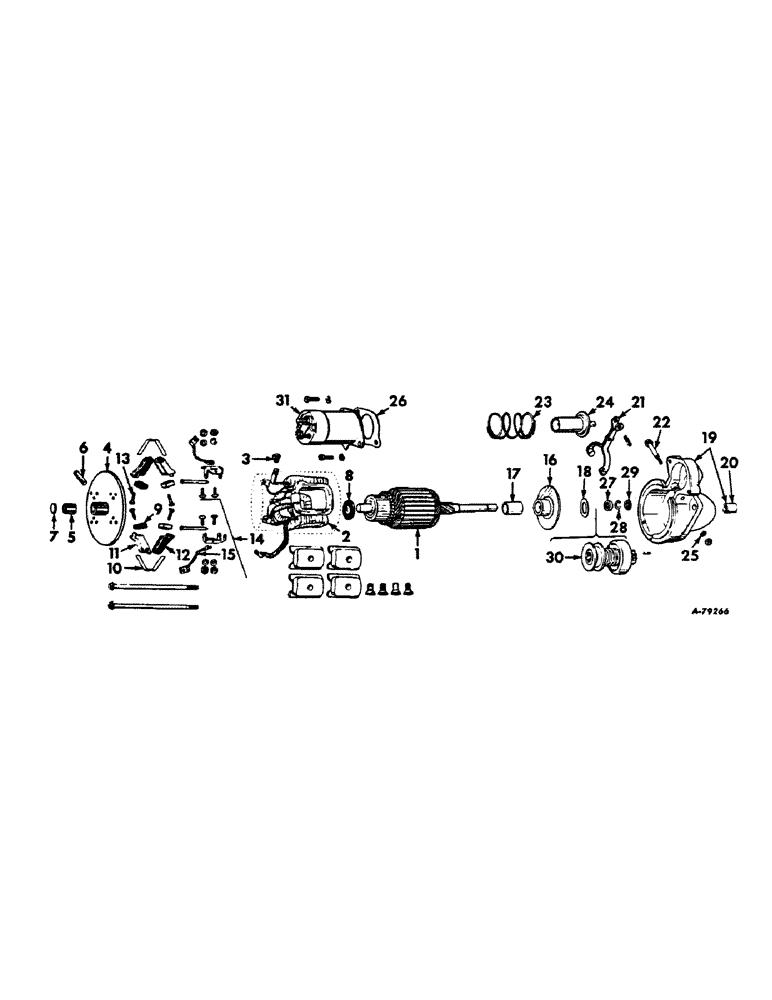

Запчасти Case IH 2504 (095) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1107543

STARTING MOTOR

MOTOR ASSY, cranking, 378335R91 12 volt, Farmall tractors w/serial no. 15260 & below, International tractors w/serial no. 17829 & below

1шт.

1107854

SPARE PART MOTOR ASSY, cranking, 396459R91 12 volt, Farmall tractors w/serial no. 15261 & above, International tractors w/serial no. 17830 & above

1шт.

104196A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104196A1C

CORE-STARTER

Return Number

1шт.

104197A1R

REMAN-STARTER

504 Farmall, 504 International, Both Diesel Tractor (1/60-12/68), 2504 International Tractor

1шт.

104197A1C

CORE-STARTER

Return Number

1шт.

104204A1R

REMAN-STARTER

25MT Heavy Duty ---- Delco 1108657

1шт.

104204A1C

CORE-STARTER

Return Number

1шт.

NLS

NO LONGER SERVICED

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

1947296

ARMATURE

ARMATURE

1шт.

2

1956384

COIL

COIL ASSY, field

1шт.

3

1955946

GROMMET

GROMMET, in field frame

1шт.

4

1940385

FUNNEL

FRAME, commutator end

1шт.

5

1872678

BUSHING

BUSHING, commutator end

1шт.

6

1919851

WICK

WICK, commutator end

1шт.

7

810819

PLUG

PLUG, expansion

1шт.

8

1914842

WASHER

WASHER, commutator end brake

1шт.

9

1946434

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

10

1926622

VALVE SPRING

SPRING, brush

2шт.

11

1940477

HOLDER

HOLDER, ground brush

2шт.

12

1938587

BRUSH HOLDER

HOLDER, insulated brush, used with motor 1107543

2шт.

12

1926618

HOLDER

HOLDER, insulated brush, used with motor 1107854

2шт.

13

1959514

SCREW

SCREW, brush attaching

4шт.

14

1928015

BRACKET

PACKAGE, brush holder support

2шт.

15

1926605

ELECTRICAL WIRE

WIRE LEAD, brush ground

2шт.

16

820149

PLATE

PLATE, center bearing

1шт.

17

1938596

BUSHING

BUSHING, center bearing

1шт.

18

NLS

NO LONGER SERVICED

brake, between center brg & motor drive

1шт.

19

1950306

HOUSING

HOUSING, drive, used with motor 1107543

1шт.

19

1966914

HOUSING

HOUSING, drive, used with motor 1107854

1шт.

20

1862383

BUSHING

BUSHING, drive end

1шт.

21

1932205

LEVER

LEVER, shift, used with motor 1107543

1шт.

21

1951567

LEVER

LEVER, shift, used with motor 1107854

1шт.

22

1932197

SCREW

STUD, shift lever

1шт.

23

1958679

SPRING

SPRING, plunger return

1шт.

24

1941113

PLUNGER

PLUNGER, solenoid switch

1шт.

25

1953479

WASHER, shift lever stud sealing lock

2шт.

26

1952427

GASKET

GASKET, between switch and housing

1шт.

27

1928021

COLLAR

COLLAR, drive end pinion stop

1шт.

28

1928022

SNAP RING

RING, drive end pinion stop retainer

1шт.

29

1928023

WASHER

WASHER, drive end thrust

1шт.

30

1939109

PINION

DRIVE ASSY, motor, used with motor 1107543

1шт.

30

1968705

DRIVE

DRIVE ASSY, motor, used with motor 1107854

1шт.

31

1114356

SOLENOID,Starter

SWITCH ASSY, solenoid

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

120622

NUT,#8-32

NUT, #8-32

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

1шт.
