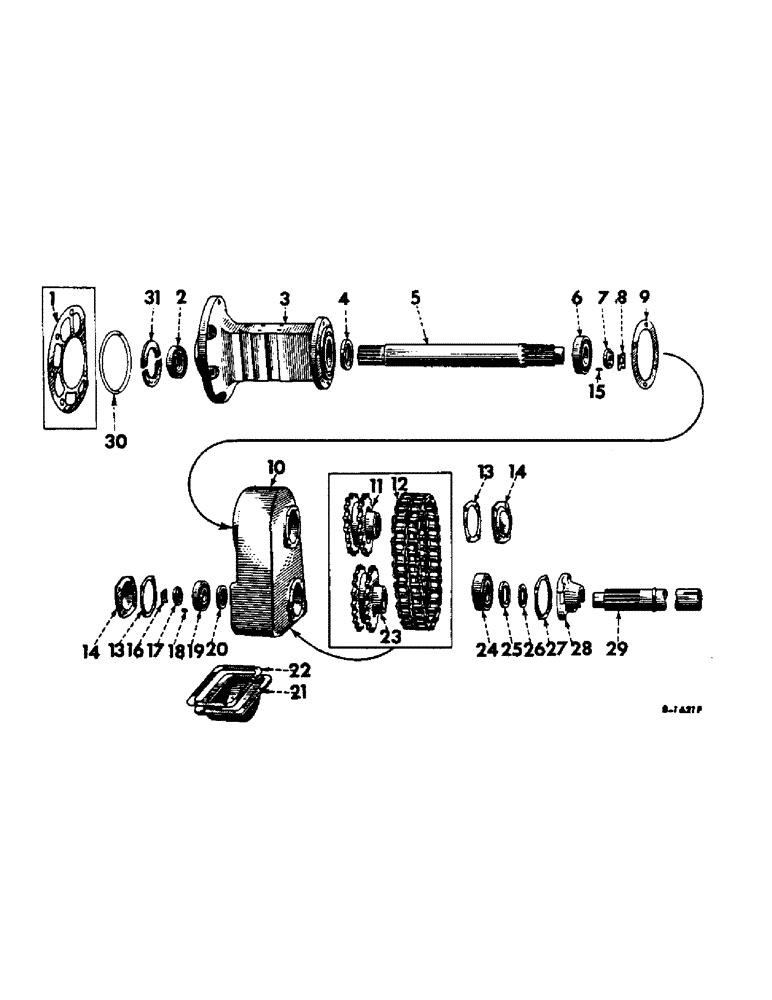

Запчасти Case IH 2504 (194) - REAR AXLE, FARMALL HI-CLEAR TRACTORS (05) - REAR AXLE

1

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

2

ST218A

BALL BEARING,65mm ID x 120mm OD x 23mm W

BEARING, rear axle drive sprocket shaft inner ball

2шт.

3

360546R3

CARRIER, rear axle housing LH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

6шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 2-1/2 hex-hd cap

5шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

13шт.

3

360547R3

CARRIER, rear axle housing RH

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/2 hex-hd cap

6шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 hex-hd cap

7шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

13шт.

4

658137R91

SEAL, rear axle drive sprocket shaft oil

2шт.

5

360548R2

SHAFT, rear axle drive sprocket

2шт.

6

ST229

BALL BEARING,130 mm OD x 31 mm

BEARING, rear axle drive sprocket shaft outer ball

2шт.

7

64228DX

WASHER ASSY, rear axle drive sprocket shaft outer brg retainer

2шт.

271630

WHEEL GEAR,Hex, 3/4" - 16 x 1 1/2", Gr 5

SCREW, 3/4-16 x 1-1/2 hex-hd cap

2шт.

8

63206D

LOCK WASHER

LOCK, rear axle drive sprocket shaft outer brg retainer washer

2шт.

9

64938D

GASKET, rear axle housing

2шт.

10

395506R1

HOUSING, rear axle, will work for 350345R21

2шт.

444676

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG, 1-11-1/2 auto. sq-soc-hd pipe

2шт.

444590

PLUG

1-11-1/2 auto. sq-hd pipe

2шт.

11

64936D

SPROCKET, rear axle drive, 17T

2шт.

12

354005R91

CHAIN (AG)

CHAIN, rear axle drive

2шт.

13

64939D

GASKET

rear axle housing cover

4шт.

14

9488D

COVER, rear axle housing

4шт.

NLS

NO LONGER SERVICED

16шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

15

33659D

PIN, rear axle drive sprocket shaft outer brg retainer washer

2шт.

16

63206D

LOCK WASHER

LOCK, rear axle inner brg retainer washer

2шт.

17

67399DX

WASHER ASSY, rear axle inner brg retainer

2шт.

271630

WHEEL GEAR,Hex, 3/4" - 16 x 1 1/2", Gr 5

SCREW, 3/4-16 x 1-1/2 hex-hd cap

2шт.

18

33659D

PIN, rear axle inner brg retainer washer

2шт.

19

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

BEARING, rear axle inner ball

2шт.

20

65073D

SPACER, rear axle brg

2шт.

21

350346R11

PAN ASSY, rear axle housing

2шт.

445686

PLUG

3/8-16 auto. sq-hd pipe

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

8шт.

NLS

NO LONGER SERVICED

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

22

350347R1

GASKET

rear axle housing pan

2шт.

23

65074DA

SPROCKET, rear axle, 18T

2шт.

24

73653R91

BEARING ASSY,75 mm ID x 130 mm OD x 1.628"

rear axle outer ball

2шт.

25

377788R91

OIL SEAL

SEAL, rear axle oil

2шт.

26

45085D

SEALING WASHER

WASHER, rear axle felt

2шт.

27

65076D

GASKET

rear axle housing cap

2шт.

28

9490DXA

HOUSING

CAP ASSY, rear axle housing

2шт.

179887

CABLE

SCREW, 1/2-13 x 1-3/4 hex-hd cap

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

29

368919R1

AXLE, rear

2шт.

30

290064R1

RING

O-RING, 6-1/4 x 6-1/2 x 1/8, rear axle hsg carrier

2шт.

31

360545R1

SUPPORT

RETAINER, rear axle drive sprocket shaft inner ball brg

4шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

354003R91

LINK, connecting, service for chain 354005R91

1шт.

354004R91

LINK, roller, service for 354005R91

1шт.
