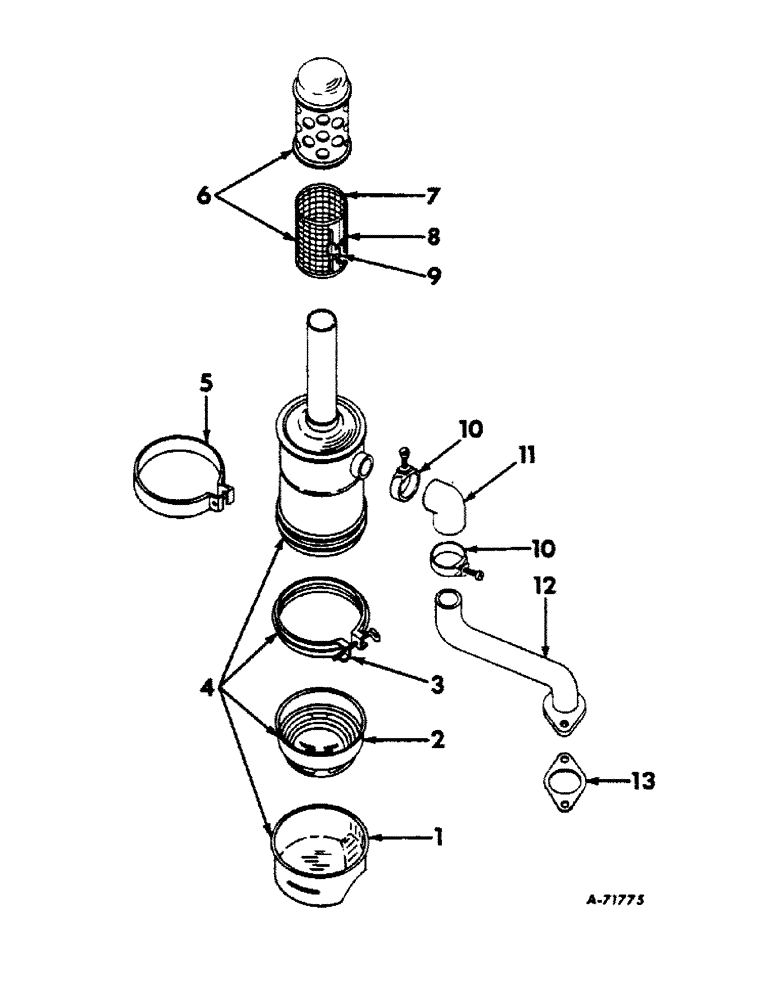

Запчасти Case IH 2504 (045) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, FARMALL DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

378623R1

CUP, oil

1шт.

2

378622R1

CUP, inner oil

1шт.

3

378621R1

CLAMP, oil cup

1шт.

4

377174R91

CLEANER ASSY, air

1шт.

5

377160R1

BAND, air cleaner bracket

1шт.

105605

NUT

5/16-18 sq

1шт.

NLS

NO LONGER SERVICED

5/16-18 x 1-3/4 slt-fil-hd mach

1шт.

6

353411R92

FILTER ASSY

PRE-SCREENER ASSY

1шт.

7

353637R91

SCREEN

W/CLIP, 353758R1 and two springs 353639R1, pre-screener

1шт.

8

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

9

353758R1

CLIP

screen lock tension spring

1шт.

10

46364H

CLAMP

air cleaner hose

2шт.

11

377172R1

HOSE, air cleaner connecting

1шт.

12

377171R21

PIPE ASSY, air cleaner outlet

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-18 x 1 hex-hd cap

2шт.

13

369497R2

GASKET

air cleaner outlet pipe

1шт.
