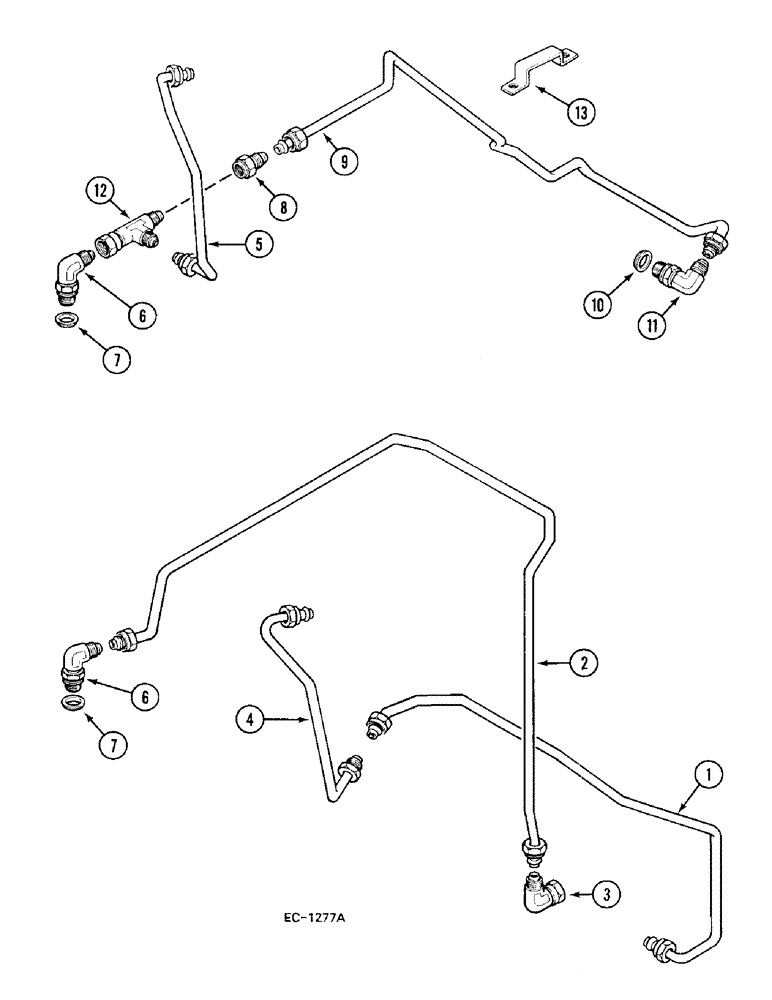

Запчасти Case IH 248 (5-300) - STEERING PIPES REAR - 4 WHEEL DRIVE, 258, 485, 585: 18001- (05) - STEERING

1

99777C3

PIPE

TUBE pressure

1шт.

2

99778C1

TUBE

return, rear

1шт.

3

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90°

1шт.

4

99824C1

HOSE

TUBE, version with cab

1шт.

4

99797C1

TUBE

pressure, version without cab

1шт.

5

99823C1

HOSE

TUBE, version with cab

1шт.

99798C1

PIPE

TUBE return, rear, version without cab

1шт.

6

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

90°

2шт.

7

570828C1

O-RING

SPARE PART

2шт.

8

99799C1

FITTING

ADAPTOR

1шт.

9

94365C2

PIPE

TUBE

1шт.

11

99865C1

ELBOW

1шт.

12

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

13

99953C1

CLAMP

BRACKET

1шт.

306132C1

CABLE TIE,14.5" L

CABLE STRAP not illustrated

2шт.

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve, Not illustrated

2шт.

9403373

CAP,37 Degree, 7/8"-14

not illustrated

1шт.

10

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.
