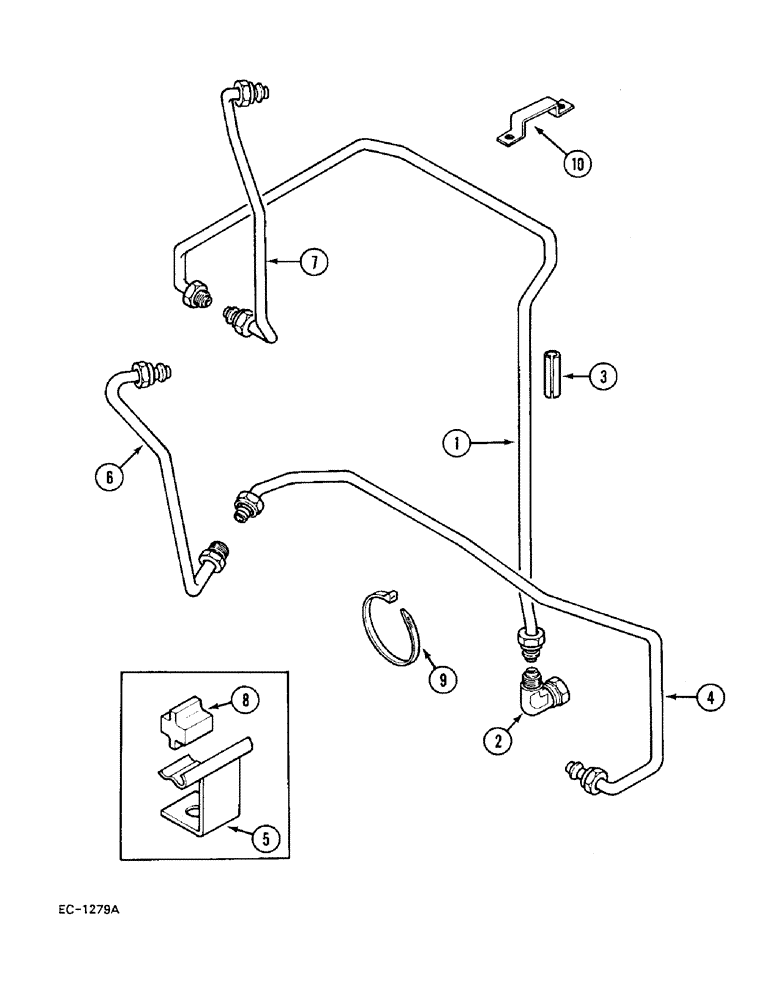

Запчасти Case IH 248 (5-294) - STEERING PIPES REAR - 2 WHEEL DRIVE (WITHOUT CAB) (05) - STEERING

1

99800C1

TUBE

return, rear

1шт.

2

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90°

1шт.

3

536009

SLEEVE

2шт.

4

99777C3

PIPE

TUBE pressure

1шт.

5

529638R1

BRACKET

if so equipped

1шт.

6

99824C1

HOSE

TUBE, version with cab

1шт.

6

99797C2

TUBE

pressure, version without cab

1шт.

7

99823C1

HOSE

TUBE, version with cab

1шт.

7

99798C1

PIPE

TUBE return, rear, version without cab

1шт.

8

529637R1

GUIDE

GUIDE, if so equipped

1шт.

9

306132C1

CABLE TIE,14.5" L

CABLE STRAP

2шт.

10

99953C1

CLAMP

BRACKET

1шт.
