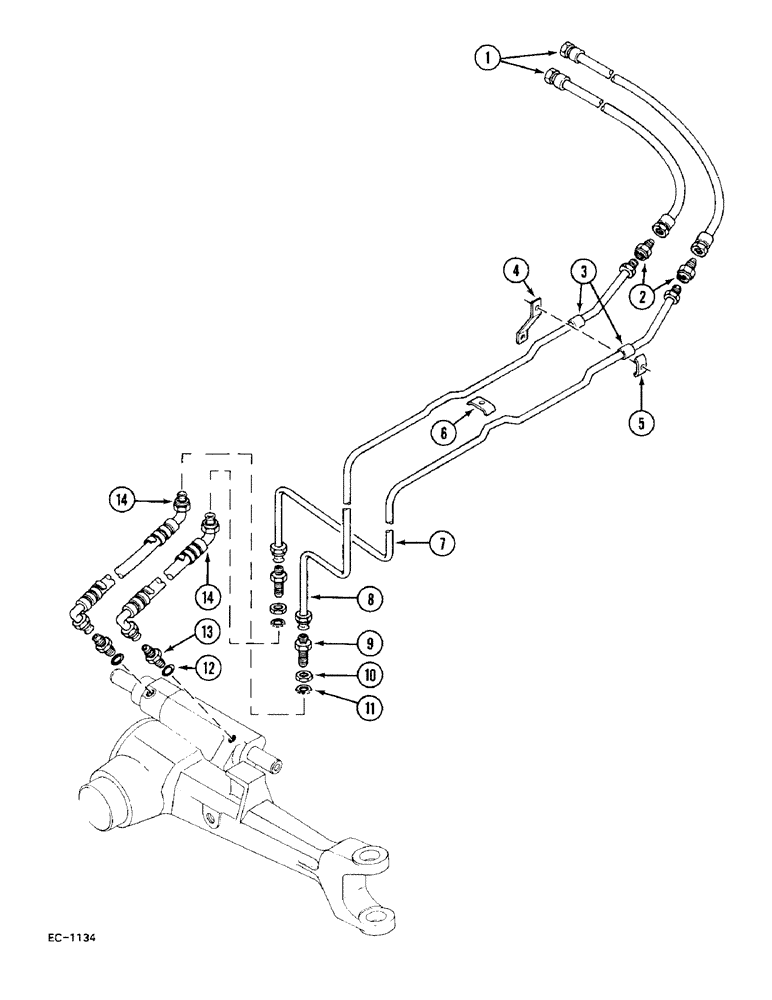

Запчасти Case IH 248 (5-292) - STEERING PIPES FRONT - 4 WHEEL DRIVE, 258, 485, 585: 18001- (05) - STEERING

1

99784C1

HOSE

1шт.

2

99713C1

FITTING

UNION

1шт.

3

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve

1шт.

4

1500311C1

BRACKET

model 258 and 585 tractor

1шт.

1500309C1

SUPPORT

BRACKET, model 485 tractor

1шт.

5

529644R1

CLAMP

1шт.

930609R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

M6 x 25 mm

1шт.

933833R1

LOCK WASHER,M6

1шт.

6

529644R1

CLAMP

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

7

99425C1

PIPE

TUBE ASSEMBLY, model 258 and 585 tractor

1шт.

7

99557C1

PIPE

TUBE ASSEMBLY, right, model 485 tractor

1шт.

8

99426C1

PIPE

TUBE ASSEMBLY, model 258 and 585 tractor

1шт.

8

99556C1

PIPE

TUBE ASSEMBLY, left, model 485 tractor

1шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

10

9403293

LOCK NUT,Blkhd, 9/16"-18

1шт.

11

115553

LOCK WASHER,Int Tooth, 5/8"

1шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

83357C1

FITTING

UNION

1шт.

14

87884C1

HOSE,9.53mm ID x 711mm L, SAE 100R1

1шт.
