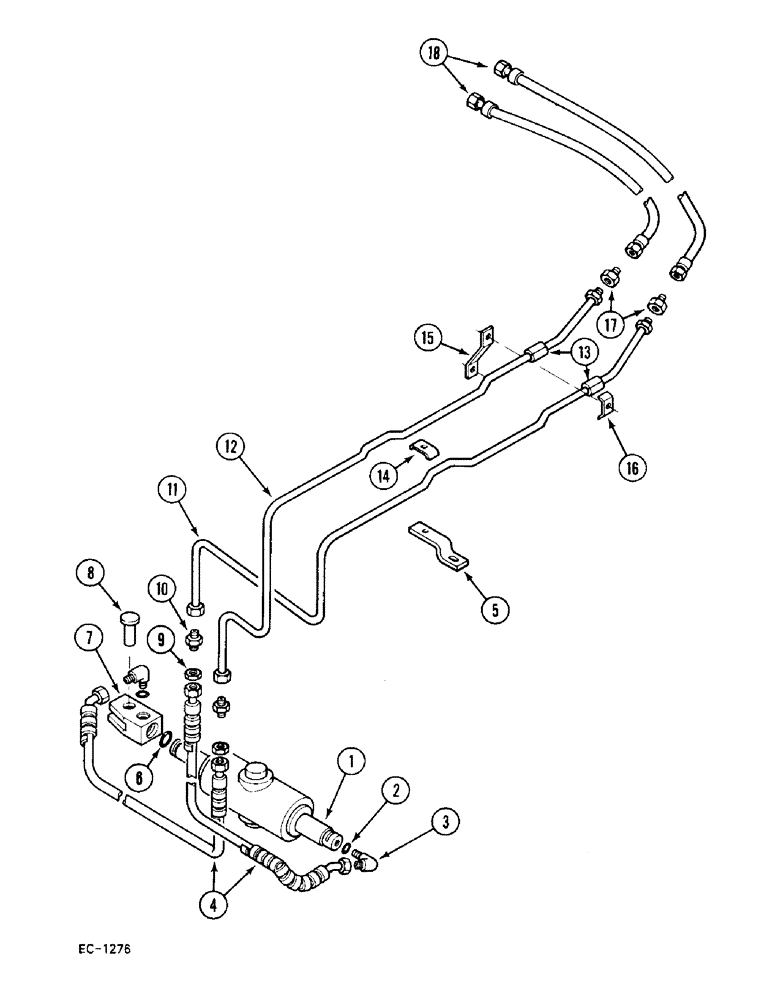

Запчасти Case IH 248 (5-288) - STEERING PIPES FRONT - 2 WHEEL DRIVE (05) - STEERING

1

CYLINDER ASSEMBLY, see power steering cylinder

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

2шт.

4

3121235R1

HOSE

ASSEMBLY

2шт.

5

99790C1

SUPPORT

BRACKET

1шт.

109084

NUT,1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

3125306R1

CLEVIS,9/16" - 18

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

LUBRICATOR

1шт.

8

3125305R1

PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

9

9403293

LOCK NUT,Blkhd, 9/16"-18

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

2шт.

10

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

11

1282988C2

HYD TUBE

TUBE ASSEMBLY, left, models 248, 385, 485 tractor

1шт.

11

1282990C1

TUBE

left, model 258 and 585 tractor

1шт.

12

1282989C2

HYD TUBE

TUBE ASSEMBLY, right, models 248, 358, 485 tractor

1шт.

12

1282991C1

TUBE

right, model 258 and 585 tractor

1шт.

13

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve

2шт.

14

529644R11

CLAMP

ASSEMBLY

1шт.

NLS

NO LONGER SERVICED

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

95-11028

WASHER,1/4"

1шт.

15

1500309C1

SUPPORT

BRACKET, models 248, 385, 485 tractor

1шт.

1500311C1

BRACKET

model 258 and 585 tractor

1шт.

16

529644R1

CLAMP

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

933833R1

LOCK WASHER,M6

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

930609R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

M6 x 25 mm

1шт.

17

99713C1

FITTING

UNION

2шт.

18

99784C1

HOSE

2шт.
