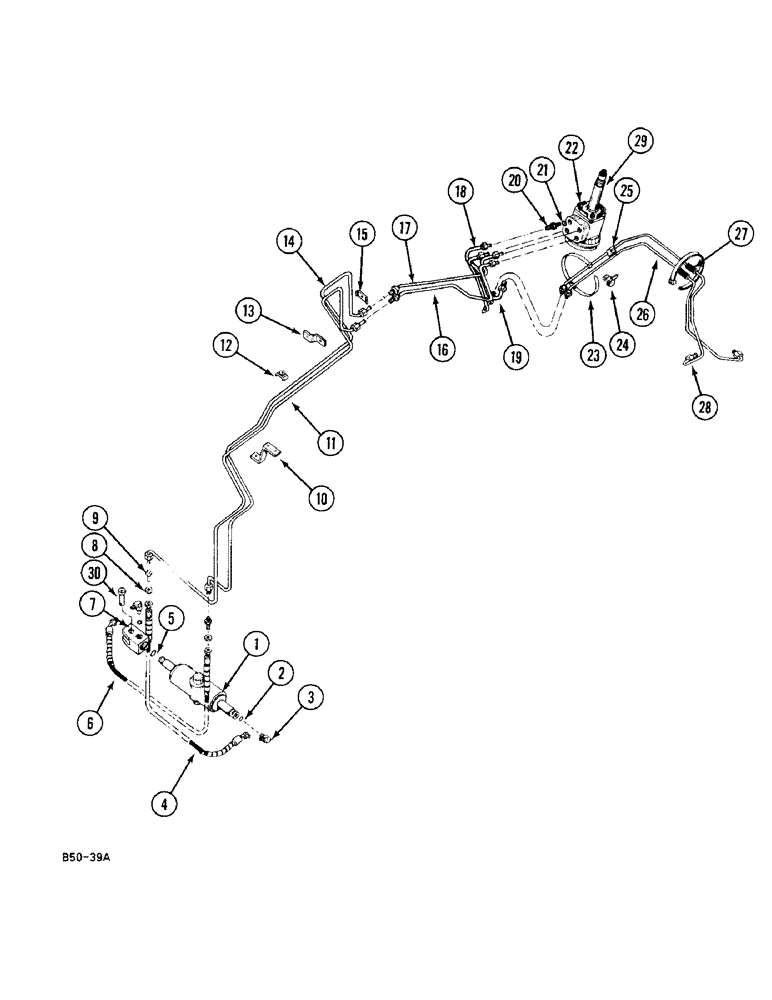

Запчасти Case IH 248 (5-282) - POWER STEERING (05) - STEERING

1

CYLINDER ASSEMBLY, see power steering cylinder

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

2шт.

4

3121235R1

HOSE

ASSEMBLY

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

3121235R1

HOSE

ASSEMBLY

1шт.

7

3125306R1

CLEVIS,9/16" - 18

1шт.

8

9403293

LOCK NUT,Blkhd, 9/16"-18

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

2шт.

10

529646R1

BRACKET

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

66109C1

PIPE

TUBE ASSEMBLY, model 258 and 585 tractor

1шт.

11

66109C1

PIPE

TUBE ASSEMBLY, model 585 tractor

1шт.

11

3121237R1

TUBE ASSY.

front, RH, models 248, 385, 485 tractor

1шт.

12

529644R11

CLAMP

ASSEMBLY

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1шт.

95-11028

WASHER,1/4"

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

13

529642R1

BRACKET

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

1шт.

14

66107C1

PIPE

ASSEMBLY, model 258 and 585 tractor

1шт.

14

3121236R1

TUBE ASSY.

front, LH, models 248, 385, 485 tractor

1шт.

15

384891R11

CLAMP

ASSEMBLY

1шт.

16

3116268R2

TUBE ASSY.

rear, RH

1шт.

17

3116267R1

TUBE ASSY.

rear, LH

1шт.

18

3116272R2

TUBE ASSY.

return front, version without cab

1шт.

18

3116829R91

HOSE ASSY.

return front, version with cab

1шт.

19

3116271R2

TUBE ASSY.,0.375" OD, 12.44, 4.28" Length

pressure, version without cab

1шт.

19

3116830R91

HOSE ASSY.

pressure, version with cab

1шт.

20

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

4шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

22

VALVE ASSEMBLY, see integral power steering valve

1шт.

23

306132C1

CABLE TIE,14.5" L

CABLE STRAP

2шт.

24

529638R1

BRACKET

1шт.

25

529637R1

GUIDE

GUIDE

1шт.

26

1502293C1

TUBE

ASSEMBLY, pressure

1шт.

27

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve

2шт.

28

3129257R1

TUBE ASSY.

return rear, version without cab

1шт.

28

3129273R1

TUBE ASSY.

return rear, version with cab

1шт.

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

37°

1шт.

29

3121187R91

SHAFT

with nut

1шт.

F19646

LOCK NUT,13/16"-20, Thin

1шт.

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

30

3125305R1

PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

1шт.

3129261R1

BRACKET

not illustrated

1шт.
