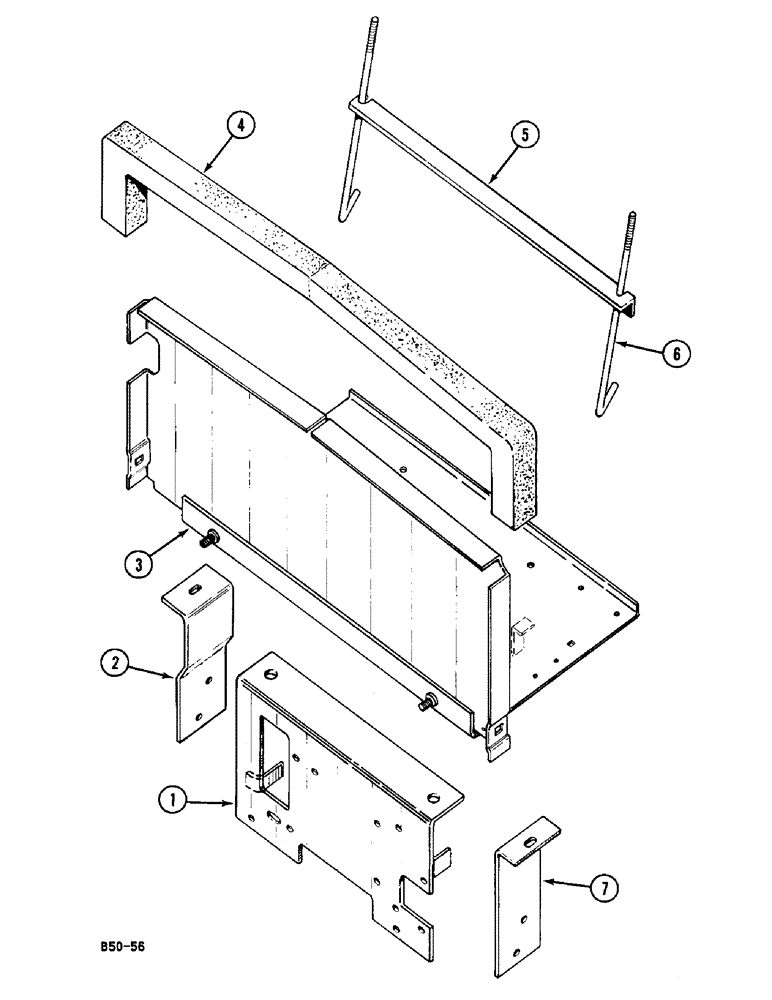

Запчасти Case IH 248 (4-270) - BATTERY TRAY, VERSION WITH CAB (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
3123057R2
SUPPORT ASSY.
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
2
1287804C2
SUPPORT
right
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
1шт.
21872R1
WASHER
1шт.
3
3123055R2
TRAY ASSY.
1шт.
181356
BOLT,Hex, 3/8" - 24 x 5/8", Gr 5
1шт.
103321
LOCK WASHER,3/8"
1шт.
20893R1
WASHER
2шт.
80681
LOCK WASHER,5/16"
2шт.
120376
NUT,5/16"-18, G5
2шт.
3121629R1
NUT
2шт.
120393
BEARING WASHER,5/16", SAE
2шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
4
73217C1
FILLING STRIP
1220 mm, bulk length
1шт.
5
3121178R1
BRACKET
1шт.
6
527605R1
ROD
mounting
2шт.
120393
BEARING WASHER,5/16", SAE
2шт.
120376
NUT,5/16"-18, G5
2шт.
7
3116892R1
SUPPORT
left
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
1шт.
21872R1
WASHER
1шт.
103319
LOCK WASHER,1/4"
Not Illustrated
1шт.
109084
NUT,1/4"-20, G5
Power Steering Pipe Clamp, Not Illustrated
1шт.
3125822R1
CABLE CLIP
SPARE PART not illustrated
1шт.
3125823R1
CLIP
cable, optional, not illustrated
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
Not Illustrated
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
Not Illustrated
1шт.
492-11025
LOCK WASHER,1/4"
Not Illustrated
1шт.
528217R2
BATTERY, DRY
BATTERY DRY Chloride, not illustrated
1шт.
245299C1
WET BATTERY
dry charge, Sonnak, optional, not illustrated
1шт.
1502296C1
BATTERY, DRY
BATTERY DRY Chloride, Not illustrated
1шт.
245301C1
WET BATTERY
dry charge, heavy duty, Sonnak, optional, not illustrated
1шт.
245300C1
WET BATTERY
wet charged, Sonnak, not illustrated
1шт.
1502297C1
BATTERY, WET
BATTERY WET Chloride, not illustrated
1шт.
245302C1
WET BATTERY
wet charged, heavy duty, Sonnak, optional, not illustrated
1шт.
Выбрано товаров: 43
