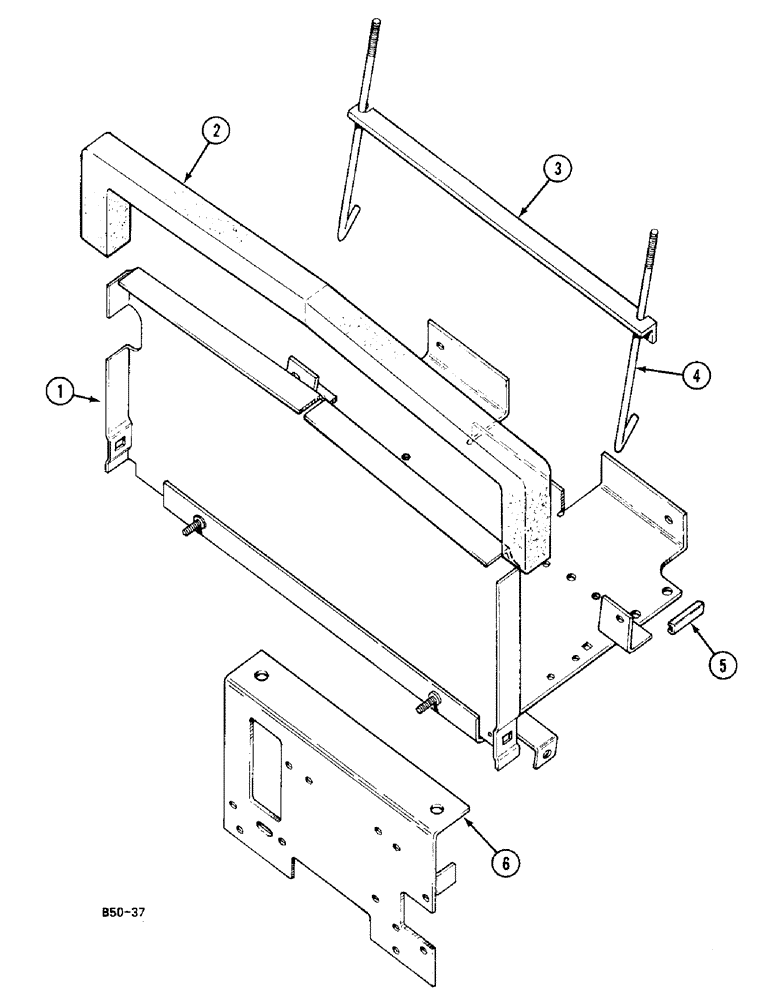

Запчасти Case IH 248 (4-266) - BATTERY TRAY, BATTERY AND CONNECTIONS, VERSION WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

3121626R1

TRAY ASSY.

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

20893R1

WASHER

2шт.

80681

LOCK WASHER,5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120394

WASHER,3/8", SAE

2шт.

3121629R1

NUT

2шт.

2

73217C1

FILLING STRIP

1220 mm, bulk length

1шт.

3

3121178R1

BRACKET

1шт.

4

527605R3

ROD

2шт.

120393

BEARING WASHER,5/16", SAE

2шт.

120376

NUT,5/16"-18, G5

2шт.

5

3113841R1

MOLDING

1шт.

6

538054R2

SUPPORT

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

103319

LOCK WASHER,1/4"

Not Illustrated

1шт.

109084

NUT,1/4"-20, G5

Power Steering Pipe Clamp, Not Illustrated

1шт.

528217R2

BATTERY, DRY

BATTERY DRY Chloride, not illustrated

1шт.

245299C1

WET BATTERY

dry charge, Sonnak, optional, not illustrated

1шт.

1502296C1

BATTERY, DRY

BATTERY DRY Chloride, Model 258 and 585 tractor, Not illustrated

1шт.

245301C1

WET BATTERY

dry charge, heavy duty, Sonnak, optional, model 258 and 585 tractor, not illustrated

1шт.

245300C1

WET BATTERY

wet charged, Sonnak, not illustrated

1шт.

1502297C1

BATTERY, WET

BATTERY WET Chloride, model 258 and 585 tractor, not illustrated

1шт.

245302C1

WET BATTERY

wet charged, heavy duty, Sonnak optional, model 258 and 585 tractor, not illustrated

1шт.

A186026

BATTERY, DRY

dry charge, maintenance, not illustrated

1шт.
