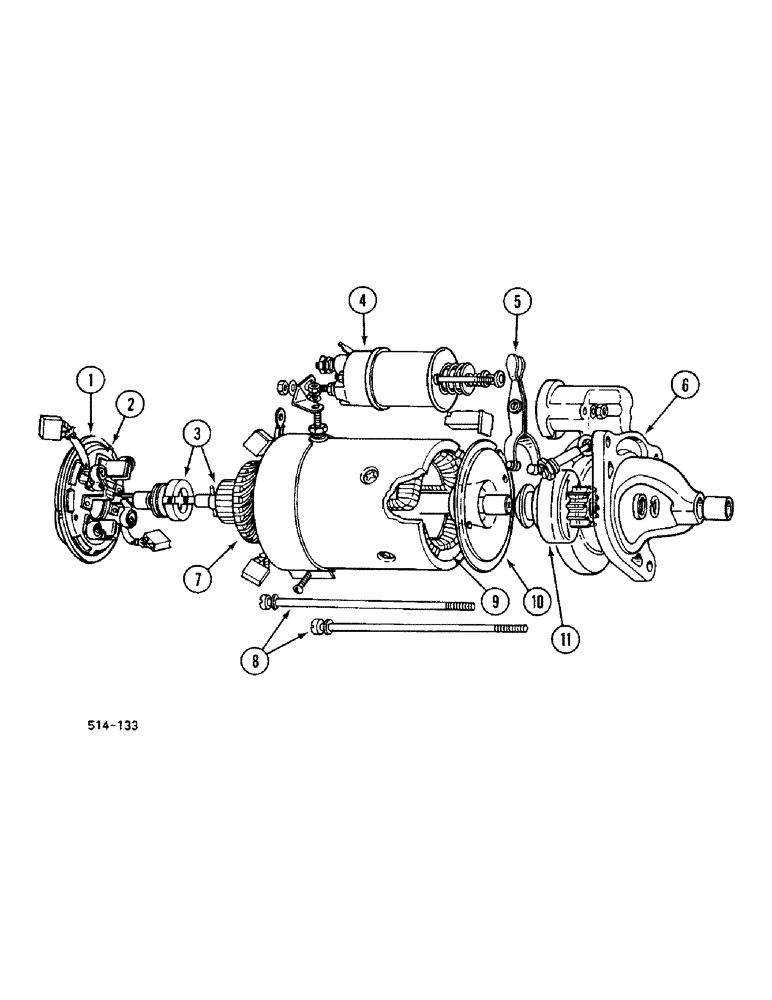

Запчасти Case IH 248 (4-262) - STARTER MOTOR - "LUCAS" (04) - ELECTRICAL SYSTEMS

537140R95

STARTER MOTOR

27508

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

537143R1

TERMINAL CONNECTOR,Male

3шт.

1

3206511R91

BRACKET

PACKAGE, commutator end

1шт.

2

3113026R91

PLATE ASSY.

1шт.

3118371R91

BRUSH, COMMUTATOR

BRUSH

1шт.

3206523R91

SPRING KIT

1шт.

3

3206531R91

BRAKE PACKAGE

1шт.

4

84060C1

SOLENOID SWITCH

SWITCH

1шт.

5

84061C1

KIT

LEVER engaging

1шт.

6

BRACKET ASSEMBLY, not available separately

1шт.

7

84059C1

ARMATURE

ASSEMBLY

1шт.

8

3129088R1

BOLT

2шт.

3129089R1

WASHER

2шт.

9

84058C1

KIT

field coils

1шт.

10

3119902R91

SUPPORT

BRACKET ASSEMBLY

1шт.

11

84209C1

DRIVE ASSY.

1шт.

3113029R91

BUSHING

PACKAGE, not illustrated

1шт.

3206528R91

SEAL KIT

not illustrated

1шт.

3206529R91

KIT

sundry parts, not illustrated

1шт.

78986C1

PACKAGE

retention, not illustrated

1шт.
