(4-254) - REGISTRATION NUMBER PLATE AND LIGHT

Запчасти Case IH 248 (4-254) - REGISTRATION NUMBER PLATE AND LIGHT (04) - ELECTRICAL SYSTEMS

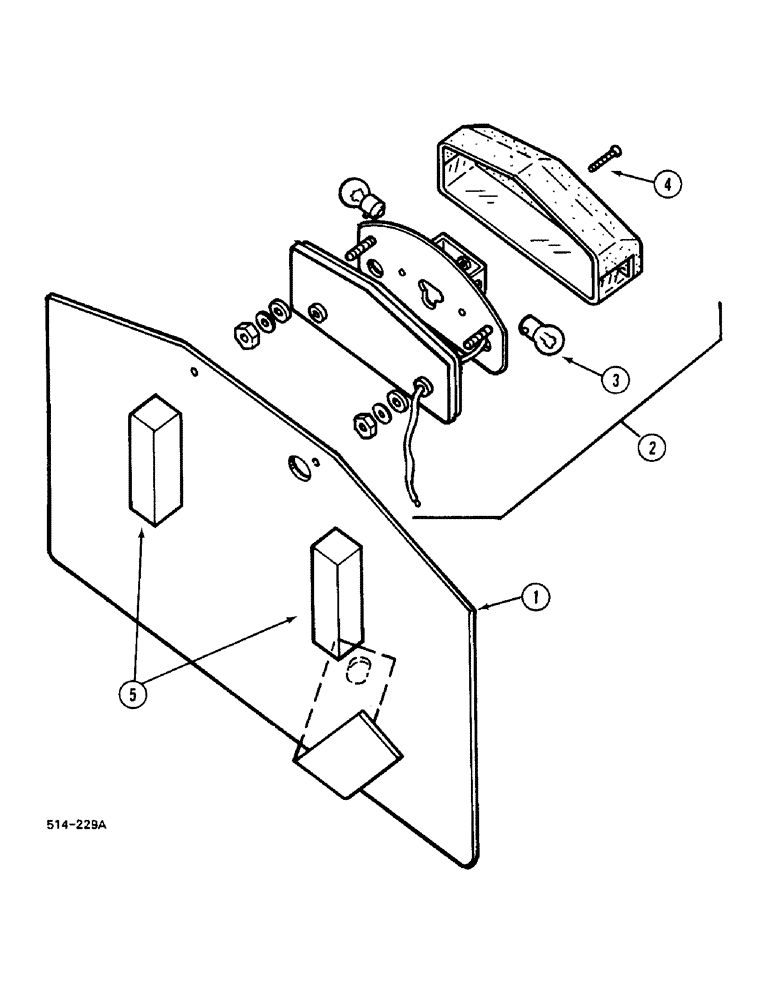

Схема запчастей Case IH 248 - (4-254) - REGISTRATION NUMBER PLATE AND LIGHT (04) - ELECTRICAL SYSTEMS
1
5
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3113438R93

TYPE PLATE

ASSEMBLY, version with deluxe lighting

1шт.

1

3125295R91

TYPE PLATE

ASSEMBLY, version with basic lighting, models 385, 485, 585 tractor

1шт.

619856R1

WASHER

1шт.

2

3113443R91

LIGHT ASSY.

with Ref. 3 and 4

1шт.

3

705757R91

LAMP

12 V, 5 W

2шт.

4

3115524R1

SCREW

SPARE PART

1шт.

5

3113442R1

BUMPER

2шт.
