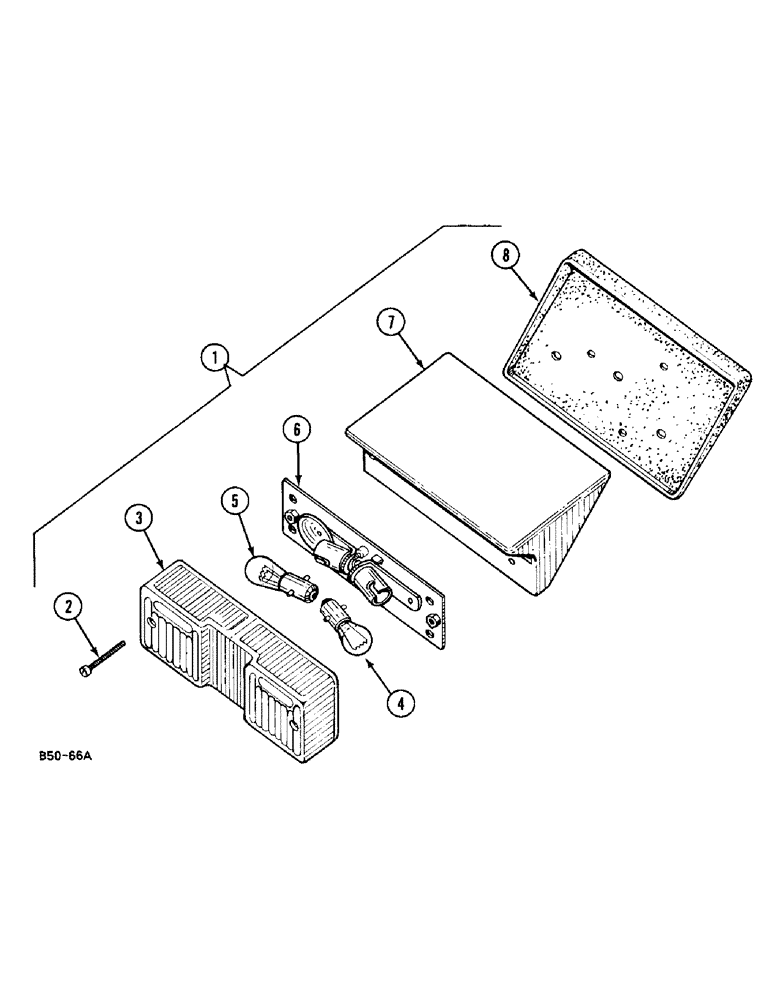

Запчасти Case IH 248 (4-246) - STOP TAIL AND FLASHER LIGHTS, VERSION WITH CAB (04) - ELECTRICAL SYSTEMS

1

3123163R91

LAMP, TAIL

LIGHT, TAIL left

1шт.

1

3123164R91

LAMP, TAIL

LIGHT, TAIL right, consists of: Ref. 2 thru 8

1шт.

2

3125156R1

SCREW

4шт.

3112786R1

WASHER

4шт.

3

3115359R1

LENS

LENS

2шт.

4

3025210R91

BULB

LAMP, 12 V / 21 W

2шт.

5

894878H1

BULB

LAMP, 12 V, 21/5 W

2шт.

6

PLATE, order: P/N 3123163R91

2шт.

3125157R1

WASHER

4шт.

3125158R1

NUT

6шт.

121801

LOCK WASHER,Int Tooth, #10

2шт.

7

HOUSING, order: P/N 3123163R91

2шт.

8

3125154R1

CUSHION

left

1шт.

8

3125155R1

CUSHION

right

1шт.
