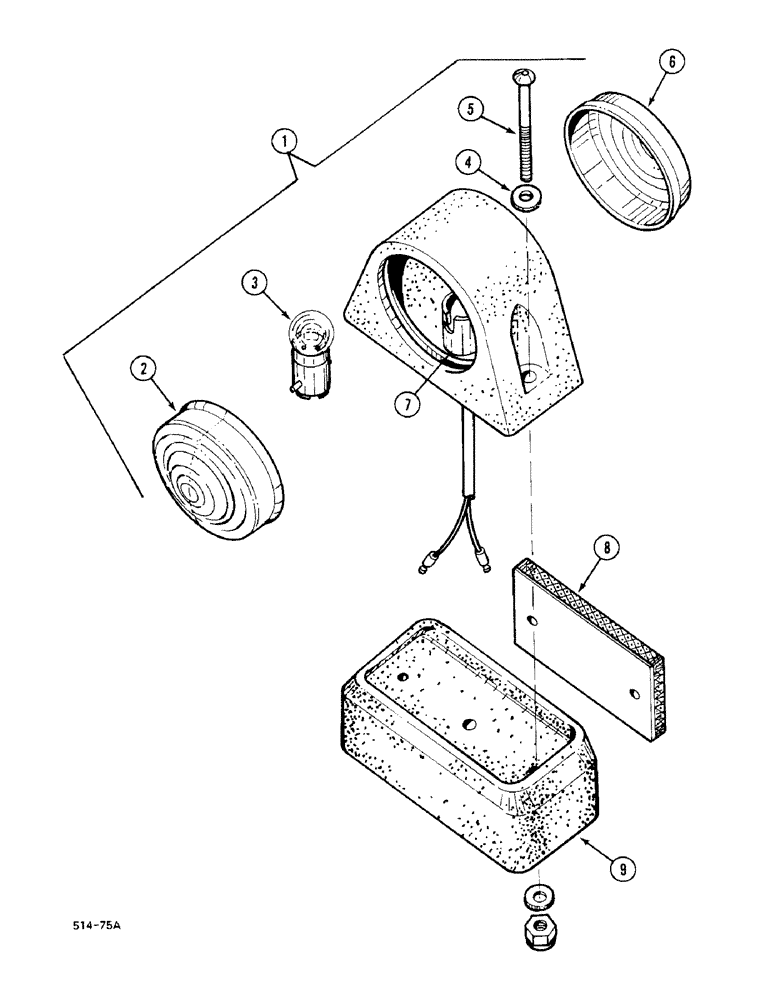

Запчасти Case IH 248 (4-240) - FENDER WIRING AND LIGHTS, VERSION WITH CROWN TOP FENDERS, 385, 485, 585 (04) - ELECTRICAL SYSTEMS

1

3123175R91

LIGHT ASSY.

consists of: Ref. 2 thru 9

2шт.

2

3113396R1

LENS

LENS clear

2шт.

3

894879H1

BULB

LAMP, 12 V / 5 W

2шт.

4

446152

HYD CONNECTOR

8шт.

5

3121291R1

SCREW

4шт.

3062475R1

NUT

NUT

4шт.

121801

LOCK WASHER,Int Tooth, #10

4шт.

6

3112860R1

LENS

red

2шт.

7

3074005R91

HOLDER

2шт.

8

530041R1

REFLECTOR

2шт.

9

BASE, order: P/N 3123175R91

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR not illustrated

6шт.

705896R1

CONNECTOR, ELEC

CONNECTOR not illustrated

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR for number plate light, not illustrated

1шт.

3123188R1

HARNESS

not illustrated

1шт.
