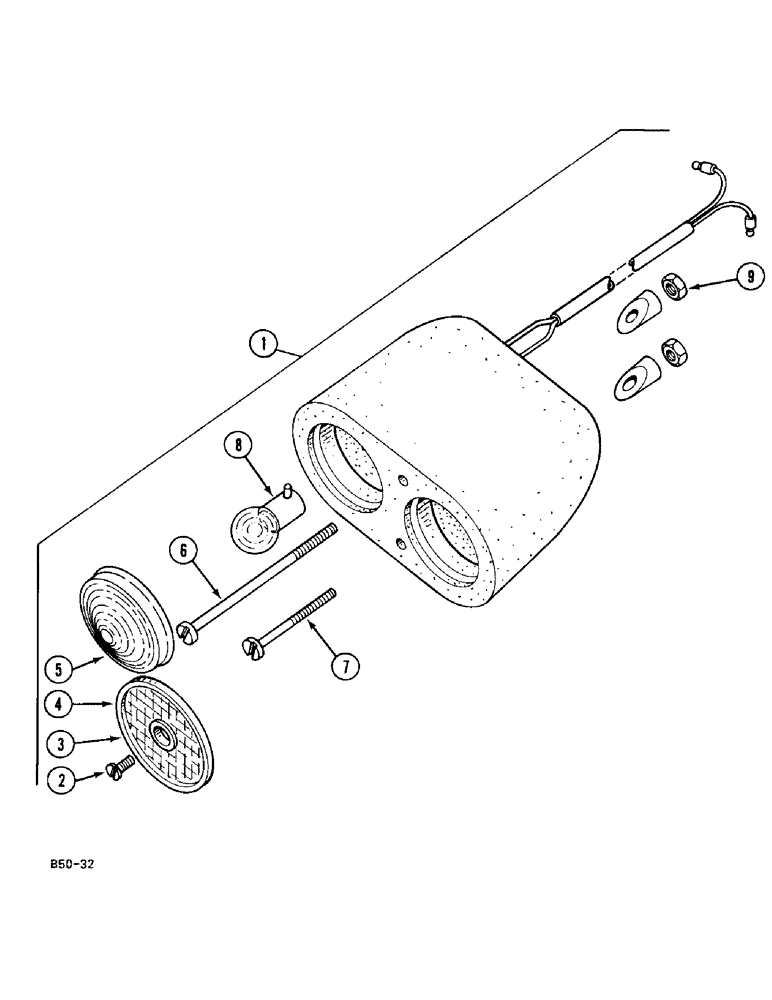

Запчасти Case IH 248 (4-236) - STOP/TAIL LIGHTS, VERSION WITH FLAT TOP FENDERS, 385, 485, 585 (04) - ELECTRICAL SYSTEMS

1

3123173R91

LAMP, TAIL

LIGHT, TAIL left

1шт.

1

3123174R91

LAMP, TAIL

LIGHT, TAIL right, consists of: Ref. 2 thru 9

1шт.

2

24446R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

2шт.

3

3112698R1

WASHER

2шт.

4

3118665R1

REFLECTOR

Hella

2шт.

5

3112696R1

LENS

red

2шт.

6

25945R1

SCREW

SPARE PART

2шт.

3112700R1

WASHER

2шт.

7

445998

SCREW

SPARE PART

2шт.

3112700R1

WASHER

2шт.

8

894878H1

BULB

LAMP, 12 V, 21/5 W

2шт.

9

86625061

NUT,1/4"-20, GB

4шт.
