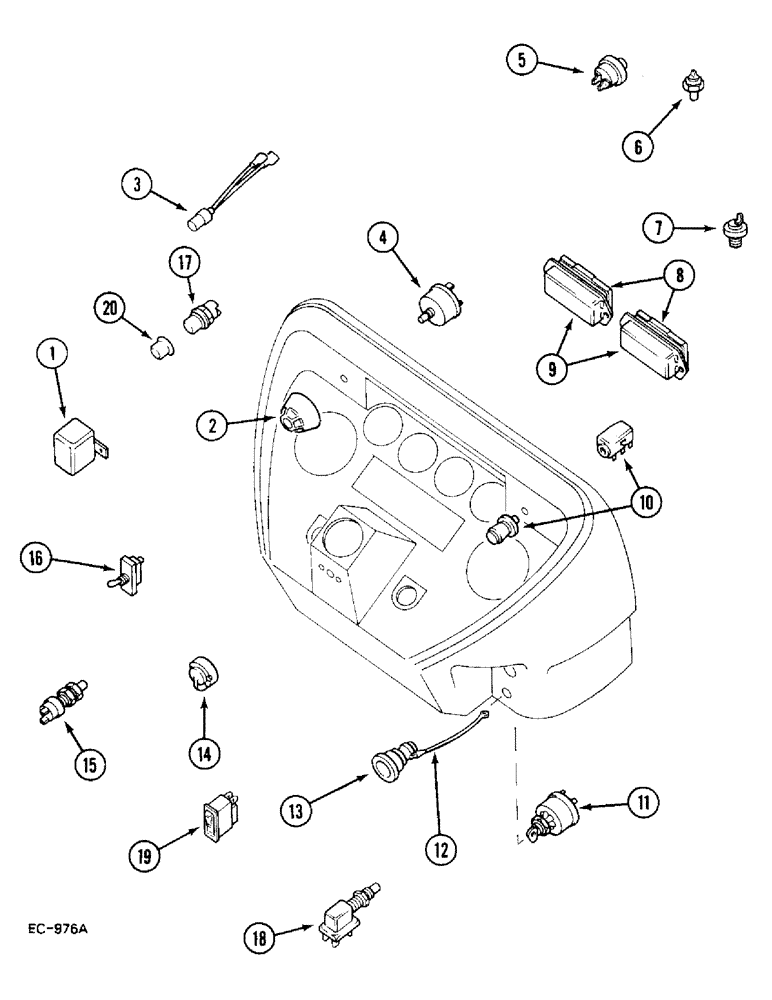

Запчасти Case IH 248 (4-228) - ELECTRICAL SWITCHES AND FUSES (04) - ELECTRICAL SYSTEMS

1

3118909R2

FLASHER UNIT

1шт.

2

1502379C1

KNOB

light switch with horn

1шт.

3

3125984R2

FLASHER UNIT

parking brake warning

1шт.

539015R1

CLIP

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

1шт.

4

1502378C1

LIGHT SWITCH

light, with horn

1шт.

5

3224405R91

RESTRICTION SWITCH

SWITCH air cleaner, service indicator, optional

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

6

3073787R91

TRANSMITTER

water temp., Ac Delco, used with P/N 3121240R1

1шт.

6

3127956R1

TEMPERATURE SENDER

water temp., Icknield, used with P/N 3127959R2

1шт.

7

91450C1

SWITCH, PRESSURE

PRESSURE SWITCH ASSY, Engine oil

1шт.

8

3123157R1

COVER

fuse box

2шт.

9

BOX fuse

1шт.

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

120217

LOCK WASHER,#10

4шт.

3118918R1

FUSE

10 amp.

4шт.

3118918R1

FUSE

5 amp., optional

4шт.

3115813R1

FUSE

35 amp.

6шт.

3121403R1

FUSE

35 amp., optional

6шт.

10

3118917R92

FLASHER SWITCH

hazard warning

1шт.

11

3107556R92

SWITCH ASSY

1шт.

92388C1

KEY

ignition

1шт.

534211R1

SPRING WASHER

1шт.

12

3123432R1

CABLE

1шт.

13

3121407R92

LIGHTER, CIGARETTE

cigar

1шт.

14

3072070R91

FLASHER SWITCH

indicator

1шт.

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

2шт.

3121717R1

LOCK NUT

2шт.

15

92161C2

PARK BRAKE SWITCH

parking brake warning, Mesmer

1шт.

16

3125854R1

SWITCH

1шт.

16

3121406R1

SWITCH

plough light, optional

1шт.

120395

WASHER

1шт.

17

705266R91

HORN

horn

1шт.

18

83907C1

SWITCH

2 speed power shift tranmission, models 385, 485, 585 tractor

1шт.

19

245909C1

SWITCH ASSY

for 4 wheel drive tractors, 30 km/h, model 485 and 585 tractor

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

Model 485 and 585 tractor

1шт.

82525C1

DECAL

SYMBOL model 485 and 585 tractor

1шт.

20

1288026C1

COVER

horn switch

1шт.
