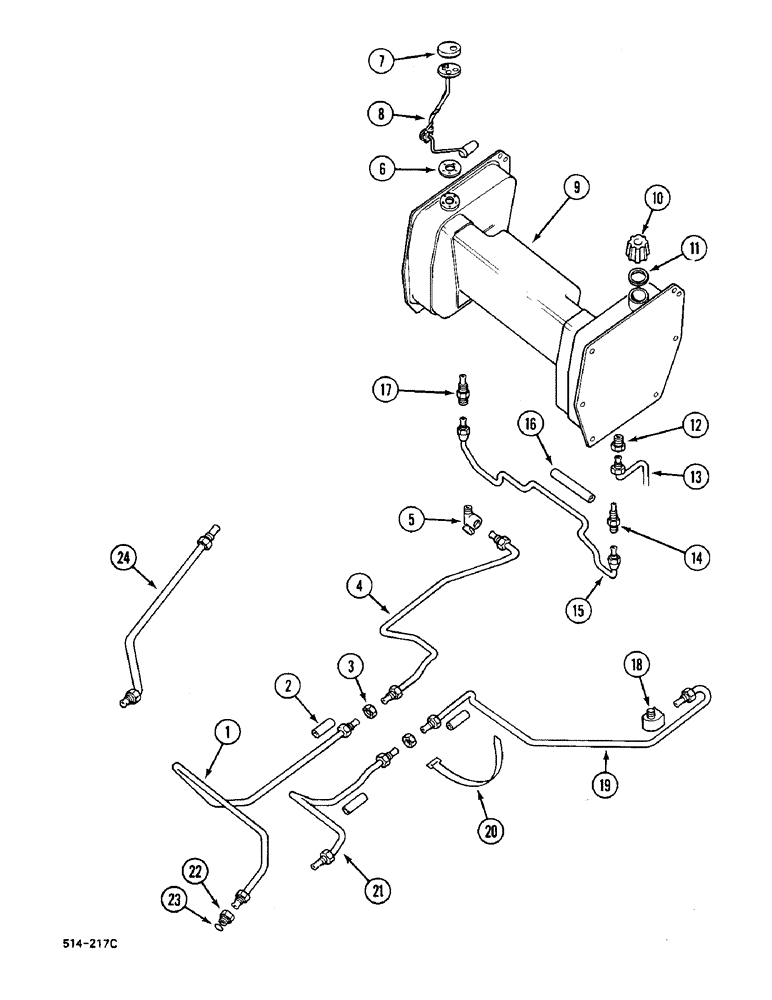

Запчасти Case IH 248 (3-184) - FUEL TANK AND PIPING, 258, 585 (03) - FUEL SYSTEM

1(a)

99837C1

PIPE

ASSEMBLY, Start Serial: 18001

1шт.

1(b)

3125866R1

PIPE ASSY.,7.92 mm OD, 1020, 119 mm Length

model 258 tractor

1шт.

1(b)

3125846R1

PIPE ASSY.

model 585 tractor

1шт.

2

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve

3шт.

3

442337

NUT

UNION

2шт.

3

442395

FITTING

UNION

2шт.

4

3129561R1

PIPE,8 mm OD, 932.2, 259.1 mm Length

TUBE ASSEMBLY

1шт.

5

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

ASSEMBLY

1шт.

6

528359R1

GASKET

1шт.

7

528360R1

CAP

1шт.

8

529790R1

SENDER UNIT

Ac Delco

1шт.

8

3129841R91

FUEL GAUGE

TRANSMITTER, Icknield, optional

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

Course threads

4шт.

451625

SCREW

1шт.

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

1шт.

533199R1

SEALING WASHER

4шт.

796002R1

COPPER WASHER

1шт.

9

536035R93

FUEL TANK

with Ref. 10

1шт.

120376

NUT,5/16"-18, G5

8шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

BOLT

6шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

BOLT

4шт.

80681

LOCK WASHER,5/16"

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, 5/16 x 3/4 inch

2шт.

10

536845R1

PLUG

CAP ASSEMBLY

1шт.

10

538063R1

PLUG

CAP ASSEMBLY

1шт.

11

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

1шт.

12

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

1шт.

13

539938R1

VENTILATION PIPE

version with underslung exhaust

1шт.

539940R1

CLIP

1шт.

NLS

NO LONGER SERVICED

BOLT

1шт.

14

1502069C1

PIPE

ASSEMBLY

1шт.

15

1502067C1

TUBE ASSY.

1шт.

16

530107R1

FUEL HOSE,0.31" ID x 10.00"

1шт.

17

1502069C1

PIPE

ASSEMBLY

1шт.

18

137422

ELBOW

1шт.

19

3129262R1

PIPE

TUBE ASSEMBLY

1шт.

20

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

3шт.

21

3112790R1

PIPE

ASSEMBLY

1шт.

22

3056600R1

ADAPTER

ADAPTOR

1шт.

23

933610R1

SEALING RING,M14 x 18 x 1.8

1шт.

24

99838C1

PIPE

TUBE

1шт.

538393R1

FILLER CAP

PLUG blanking, vent pipe flange, version with vertical exhaust, not illustrated

1шт.

366460R1

CABLE CLIP

not illustrated

2шт.

3116908R1

CLIP,ELECTRICAL

CABLE, not illustrated

2шт.
