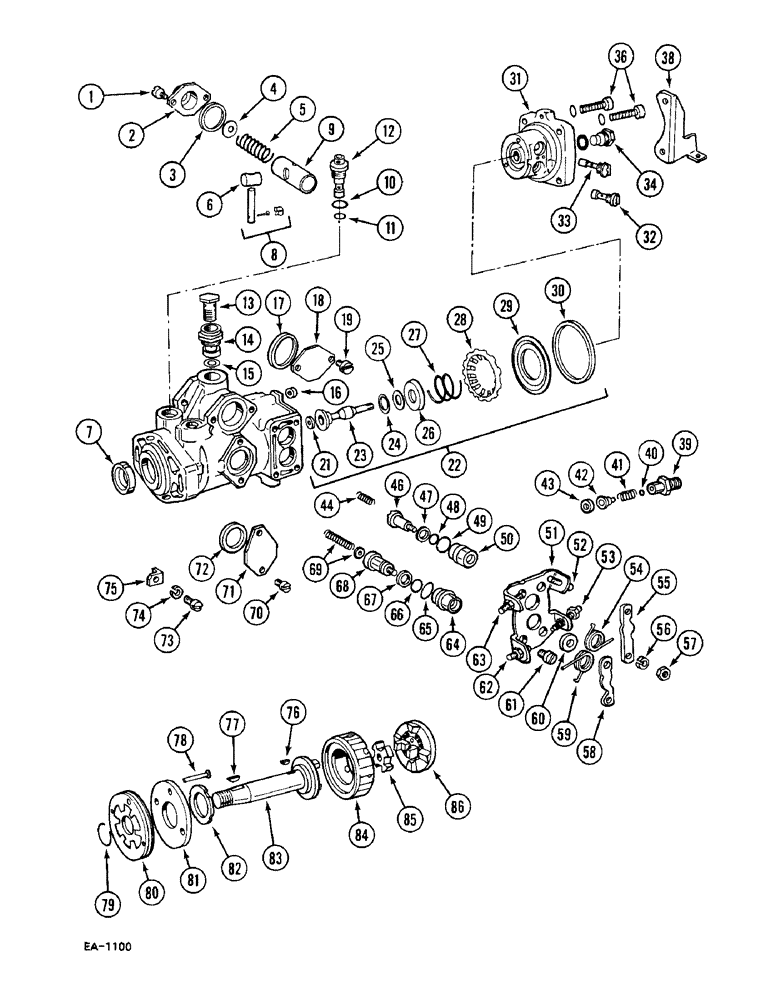

Запчасти Case IH 248 (3-156) - FUEL INJECTION PUMP - V.A. (03) - FUEL SYSTEM

3144270R91

PUMP

model 385 tractor

1шт.

3144222R93

PUMP, FUEL INJECTION

PUMP, INJECTION model 248 and 485 tractor

1шт.

3218604R91

PUMP

model 258 and 585 tractor

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

2шт.

103320

LOCK WASHER,5/16"

2шт.

1

931585R1

BOLT,M6 x 15mm, Cl 10.9

M6 x 16 mm, model 385 tractor

1шт.

1

439189C1

SCREW

M6 x 15 mm, models 248, 258, 485, 585 tractor

2шт.

2

3078489R1

COVER

1шт.

3

3078488R1

RING

1шт.

4

3078528R1

THRUST WASHER

0.6 mm

1шт.

4

3078529R1

THRUST WASHER

0.8 mm

1шт.

4

3078530R1

THRUST WASHER

1.0 mm

1шт.

4

3078531R1

THRUST WASHER

1.2 mm

1шт.

4

3078532R1

THRUST WASHER

1.4 mm

1шт.

4

3078533R1

THRUST WASHER

3.0 mm

1шт.

5

3078602R1

SPRING

model 385 tractor

1шт.

5

3078552R1

SPRING

model 248 and 485

1шт.

5

3078558R1

BRACKET

model 258 and 585

1шт.

6

3078482R1

SLIDE

SLIDE

1шт.

7

3078355R2

OIL SEAL

1шт.

8

3078481R1

PIN

1шт.

9

3078572R91

HOUSING

models 248, 385. 485 tractor

1шт.

9

3078472R91

HOUSING

SPARE PART model 258 and 585 tractor

1шт.

10

3078358R1

O-RING

1шт.

11

3078535R1

O-RING

1шт.

12

3078646R1

VALVE

models 248, 385. 485 tractor

1шт.

12

3078614R91

VALVE

model 258 and 585 tractor

1шт.

3078942R1

PLATE

model 258 and 585 tractor

1шт.

13

3059086R1

BANJO BOLT

SCREW hollow

1шт.

14

3078484R1

VALVE

1шт.

15

3078483R1

O-RING,2.5mm Thk x 15mm ID

1шт.

16

3078487R1

O-RING

1шт.

17

3078488R1

RING

1шт.

18

3078486R1

COVER

1шт.

19

931585R1

BOLT,M6 x 15mm, Cl 10.9

M6 x 16 mm

2шт.

20

not used

1шт.

21

3078761R2

WASHER

1.80 mm

1шт.

21

3078763R2

WASHER

1.84 mm

1шт.

21

3078765R2

WASHER

1.88 mm

1шт.

21

3078767R2

WASHER

1.92 mm

1шт.

21

3078769R2

WASHER

1.96 mm

1шт.

21

3078771R2

WASHER

2.0 mm

1шт.

21

3078773R2

WASHER

2.04 mm

1шт.

21

3078775R2

WASHER

2.08 mm

1шт.

21

3078777R2

WASHER

2.12 mm

1шт.

21

3078779R2

WASHER

2.16 mm

1шт.

21

3078781R2

WASHER

2.20 mm

1шт.

21

3078783R2

WASHER

2.24 mm

1шт.

21

3078785R2

WASHER

2.28 mm

1шт.

21

3078787R2

WASHER

2.32 mm

1шт.

21

3078789R2

WASHER

2.36 mm

1шт.

21

3078791R2

WASHER

2.40 mm

1шт.

21

3078793R2

WASHER

2.44 mm

1шт.

21

3078795R2

WASHER

2.48 mm

1шт.

21

3078797R2

WASHER

2.52 mm

1шт.

21

3078799R2

WASHER

2.56 mm

1шт.

21

3078801R2

WASHER

2.60 mm

1шт.

21

3078803R2

WASHER

2.64 mm

1шт.

21

3078805R2

WASHER

2.68 mm

1шт.

21

3078807R2

WASHER

2.72 mm

1шт.

21

3078809R2

WASHER

2.76 mm

1шт.

21

3078811R2

WASHER

2.80 mm

1шт.

21

3078813R2

WASHER

2.84 mm

1шт.

21

3078815R2

WASHER

2.88 mm

1шт.

22

head, order: P/N 3218604R91, model 258 and 585 tractor

1шт.

22

3078702R91

HEAD

model 385 tractor

1шт.

22

3078701R91

HEAD

model 248 and 485 tractor

1шт.

23

SPOOL, order: P/N 3078701R91, model 248 and 485 tractor

1шт.

SPOOL, order: P/N 3078702R91, model 385 tractor

1шт.

SPOOL, order: P/N 3218604R91, model 258 and 585 tractor

1шт.

24

3078540R1

WASHER

1. 35 mm

1шт.

24

3078541R1

WASHER

1.60 mm

1шт.

24

3078542R1

WASHER

1.85 mm

1шт.

25

3078537R1

WASHER

1.65 mm

1шт.

25

3078571R1

WASHER

2.35 mm

1шт.

26

3078516R1

SEAT

1шт.

27

3078515R1

SPRING

1шт.

28

3078576R1

SPRING WASHER

1шт.

29

3078578R1

FILTER, FUEL

1шт.

30

3078366R1

O-RING

1шт.

31

HEAD, order: P/N 3078702R91

1шт.

32

SPOOL, order: P/N 3078702R91

1шт.

33

SPOOL, order: P/N 3078702R91

1шт.

34

3078514R1

PLUG

1шт.

3132407R1

O-RING

models 248, 385. 485 tractor

1шт.

3078915R1

RING

model 258 tractor

1шт.

3078915R1

RING

model 385 and 585 tractor

1шт.

36

3078600R1

SCREW

4шт.

37

not used

1шт.

38

3078549R1

SUPPORT

BRACKET

1шт.

39

3059067R2

HYD CONNECTOR

models 248, 385. 485 tractor

3шт.

39

3059067R2

HYD CONNECTOR

model 258 and 585 tractor

4шт.

3079097R2

CAP

models 248, 385. 485 tractor

3шт.

3079097R2

CAP

model 258 and 585 tractor

4шт.

40

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

models 248, 385. 485 tractor

3шт.

40

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

model 258 and 585 tractor

4шт.

41

3132408R1

SPRING

models 248, 385. 485 tractor

3шт.

41

3132408R1

SPRING

model 258 and 585 tractor

4шт.

42

3136144R1

VALVE

model 385 tractor

3шт.

42

3059064R1

VALVE

model 248 and 485 tractor

3шт.

42

3079145R1

VALVE

model 258 and 585 tractor

4шт.

43

3078362R1

SEALING WASHER

model 385 tractor

3шт.

43

3079378R1

WASHER

model 248 and 485 tractor

3шт.

43

3079378R1

WASHER

model 258 and 585 tractor

4шт.

44

3078555R1

SPRING

models 248, 385. 485 tractor

3шт.

44

3078555R1

SPRING

model 258 and 585 tractor

4шт.

46

3078517R1

SHAFT

1шт.

47

3078519R1

WASHER

1шт.

48

3078354R1

O-RING,2mm Thk x 6.5mm ID

1шт.

49

785602R1

O-RING

1шт.

50

3078556R1

BUSHING

1шт.

51

3078557R1

PLATE

1шт.

52

3132885R1

BOLT

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

53

3132251R1

STOP LOCK

1шт.

3079141R1

NUT

1шт.

54

3132588R1

SPRING

1шт.

55

3132590R1

LEVER

1шт.

55

3132591R1

LEVER

optional

1шт.

56

933987R1

LOCK WASHER,M6

6 mm

2шт.

57

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

58

3059077R1

LEVER

1шт.

58

3059078R1

LEVER

optional

1шт.

59

3132589R1

SPRING

1шт.

60

3059076R1

WASHER

1шт.

61

931320R1

SCREW,M6 x 12mm, Cl 8.8

M6 x 12 mm

4шт.

62

3059074R1

SCREW

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

63

3136136R1

SCREW

models 248, 385. 485 tractor

1шт.

63

3079404R1

BOLT

model 258 and 585 tractor

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

64

3078524R1

BUSHING

1шт.

65

785602R1

O-RING

1шт.

66

3078363R1

O-RING

1шт.

67

3078523R1

WASHER

1шт.

68

3078521R1

SHAFT

1шт.

69

3078610R91

KIT

PACKAGE, models 248, 385. 485 tractor

1шт.

69

3079144R91

PACKAGE

model 258 and 585 tractor

1шт.

70

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

2шт.

71

3078486R1

COVER

1шт.

72

3078485R1

RING

model 248 and 258 tractor

1шт.

72

3078485R1

RING

model 258 tractor

1шт.

73

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

M4 x 5 mm

1шт.

74

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

4 mm

1шт.

75

3132598R1

INDICATOR

1шт.

76

3132395R1

KEY

1шт.

77

3079101R1

WOODRUFF KEY

1шт.

78

3078477R1

BOLT,CSK

2шт.

79

3078474R1

RING

1шт.

80

3078475R91

PUMP

1шт.

81

3078476R1

RING

1шт.

82

3078479R1

THRUST WASHER

1шт.

83

3078473R1

SHAFT

1шт.

84

3078550R91

PUMP

SPARE PART RING, models 248, 385. 485 tractor

1шт.

84

3078478R91

RETAINER

model 258 and 585 tractor

1шт.

85

3059007R1

DISC

1шт.

86

3078696R1

CAM

model 248, 385, 485 tractor

1шт.

86

3078480R1

CAM

model 258 and 585 tractor

1шт.

3078526R91

GASKET KIT

PACKAGE, not illustrated

1шт.

3078485R1

RING

not illustrated

1шт.

3078488R1

RING

not illustrated

2шт.

3078358R1

O-RING

not illustrated

1шт.

3078535R1

O-RING

not illustrated

1шт.

3078966R1

O-RING, not illustrated

1шт.

3078354R1

O-RING,2mm Thk x 6.5mm ID

not illustrated

1шт.

785602R1

O-RING

not illustrated

2шт.

3078363R1

O-RING

not illustrated

1шт.
