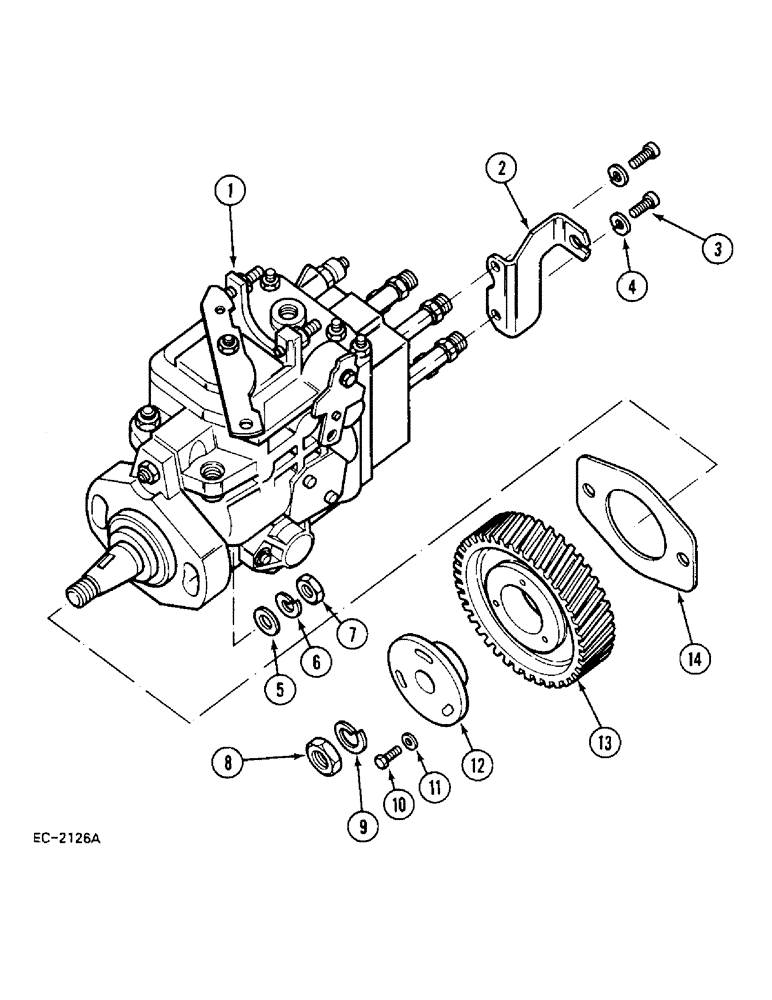

Запчасти Case IH 248 (3-152) - FUEL INJECTION PUMP - VE, 248, 385, 485 (03) - FUEL SYSTEM

1

1329100C91

PUMP, FUEL INJECTION

PUMP, INJECTION model 248 and 485 tractor

1шт.

1

1329101C91

PUMP, FUEL INJECTION

PUMP, INJECTION model 385 tractor

1шт.

2

3218939R1

BRACKET

1шт.

3

930679R1

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

4

905176R1

WAVE WASHER,M6.4 ID x 11 OD x .5 Thk

2шт.

5

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

2шт.

6

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

933981R1

NUT,M12 x 1.75, Cl 5

1шт.

9

933834R1

LOCK WASHER,M12

12 mm

1шт.

10

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

BOLT, 5/16 x 3/4 inch

3шт.

11

30183R1

WASHER,M8 x 21.5 x 2.5, HT

5/16 inch

3шт.

12

3055067R2

HUB

1шт.

13

3056885R3

PINION

GEAR, model 248 and 485 tractor

1шт.

13

3055066R3

GEAR

66 T, model 385 tractor

1шт.

14

3055384R1

GASKET

1шт.
