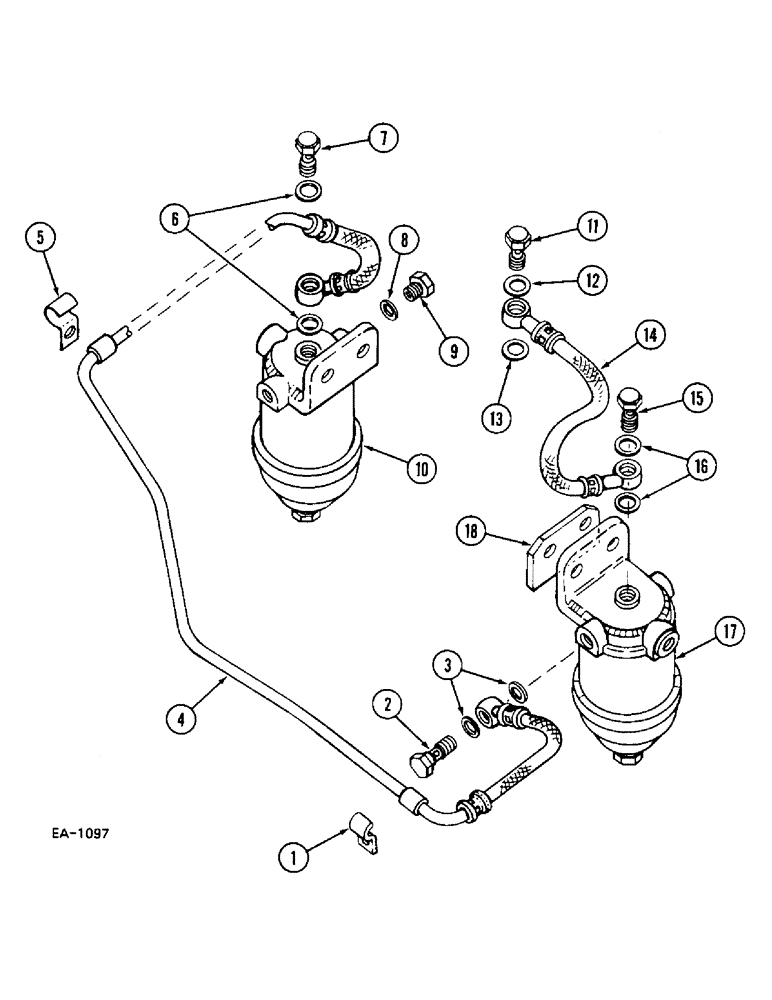

Запчасти Case IH 248 (3-148) - FUEL FILTER AND CONNECTIONS- VA INJECTION PUMP, 248, 385, 485 (03) - FUEL SYSTEM

1

3056927R1

CLAMP

1шт.

2

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

1шт.

3

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

4

3228065R1

FUEL HOSE

1шт.

5

711733R1

CLIP

1шт.

6

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

7

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

1шт.

8

933610R1

SEALING RING,M14 x 18 x 1.8

1шт.

9

3056600R1

ADAPTER

ADAPTOR

1шт.

10

3228064R91

FILTER

1шт.

712616R1

PLUG,Hex, M14 x 1.5

2шт.

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

2шт.

11

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

HOLLOW

1шт.

12

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

13

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

14

3132324R1

HOSE,8mm ID x 275mm L

1шт.

15

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

HOLLOW

1шт.

16

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

17

3228064R91

FILTER

1шт.

712616R1

PLUG,Hex, M14 x 1.5

2шт.

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

18

3059289R1

PLATE

1шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

2шт.

179840R1

SPARE PART WASHER lock

2шт.
