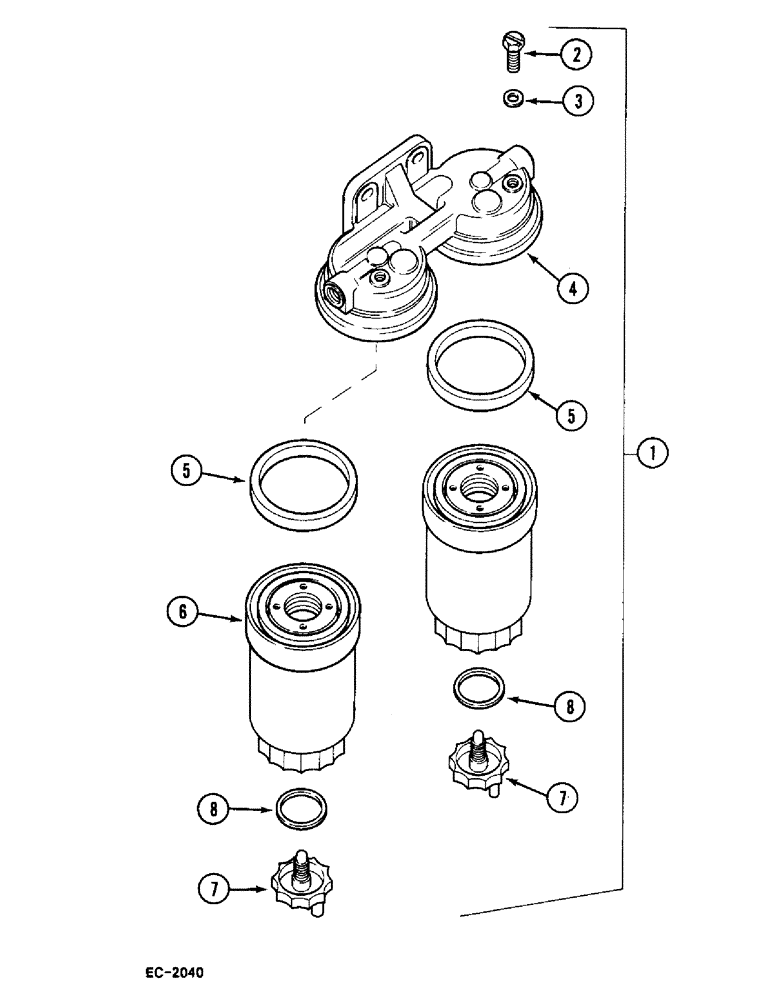

Запчасти Case IH 248 (3-142) - FUEL FILTER - "BOSCH", 258, 585 (03) - FUEL SYSTEM

1

3144992R91

FILTER, FUEL

consists of: Ref. 2 thru 8

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

2шт.

2

3144780R1

SCREW

2шт.

3

757760R1

RING

2шт.

4

3218072R1

HEAD

1шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

sealing

2шт.

6

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

element, with Ref. 5

2шт.

7

3228407R1

PLUG

2шт.

8

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

sealing

2шт.
