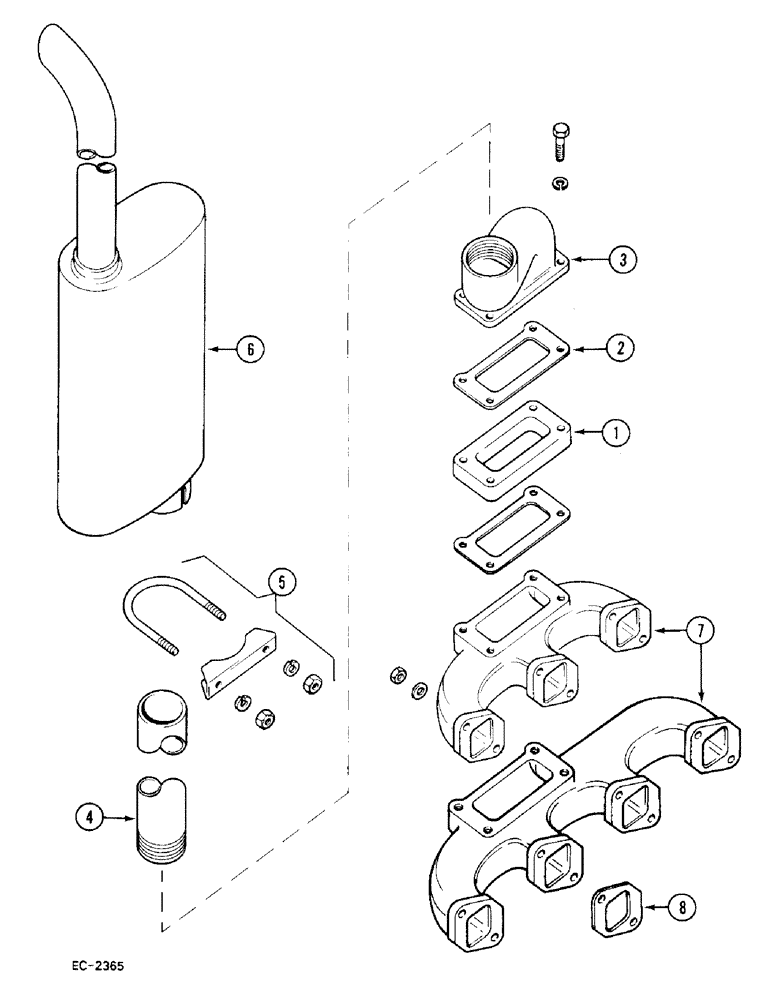

Запчасти Case IH 248 (2-138) - VERTICAL EXHAUST (02) - ENGINE

1

3125792R1

SPACER

models 248, 385, 485 tractor

1шт.

2

3136248R1

MANIFOLD GASKET,0.5mm Thk

models 248, 385, 485 tractor

2шт.

2

3136248R1

MANIFOLD GASKET,0.5mm Thk

models 258 and 585 tractor

1шт.

3

3136250R1

ELBOW

models 248, 385, 485 tractor

1шт.

3136668R1

ELBOW

model 258 and 585 tractor

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Models 248, 385, 485 tractor

4шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Model 258 and 585 tractor

4шт.

103321

LOCK WASHER,3/8"

4шт.

4

80547C1

TUBE

PACKAGE service, for exhaust pipes 96-196MM

1шт.

5

1502294C1

CLAMP

1шт.

6

83027C1

MUFFLER

Burgess

1шт.

6

83028C1

MUFFLER

Chillcott, optional

1шт.

6

82713C1

MUFFLER

Burgess, for version with low profile roof, models 385, 485, 585 tractor

1шт.

7

3121373R3

MANIFOLD

models 248, 385, 485 tractor

1шт.

7

3136066R12

MANIFOLD ASSY

model 258 and 585 tractor

1шт.

20285H

WASHER

models 248, 385, 485 tractor

6шт.

20285H

WASHER

model 258 and 585 tractor

8шт.

103026

NUT,3/8"-24, G5

Models 248, 385, 485 tractor

6шт.

103026

NUT,3/8"-24, G5

Model 258 and 585 tractor

8шт.

8

3132434R1

MANIFOLD GASKET,0.5mm Thk

models 248, 385, 485 tractor

3шт.

8

3132434R1

MANIFOLD GASKET,0.5mm Thk

model 258 and 585 tractor

4шт.
