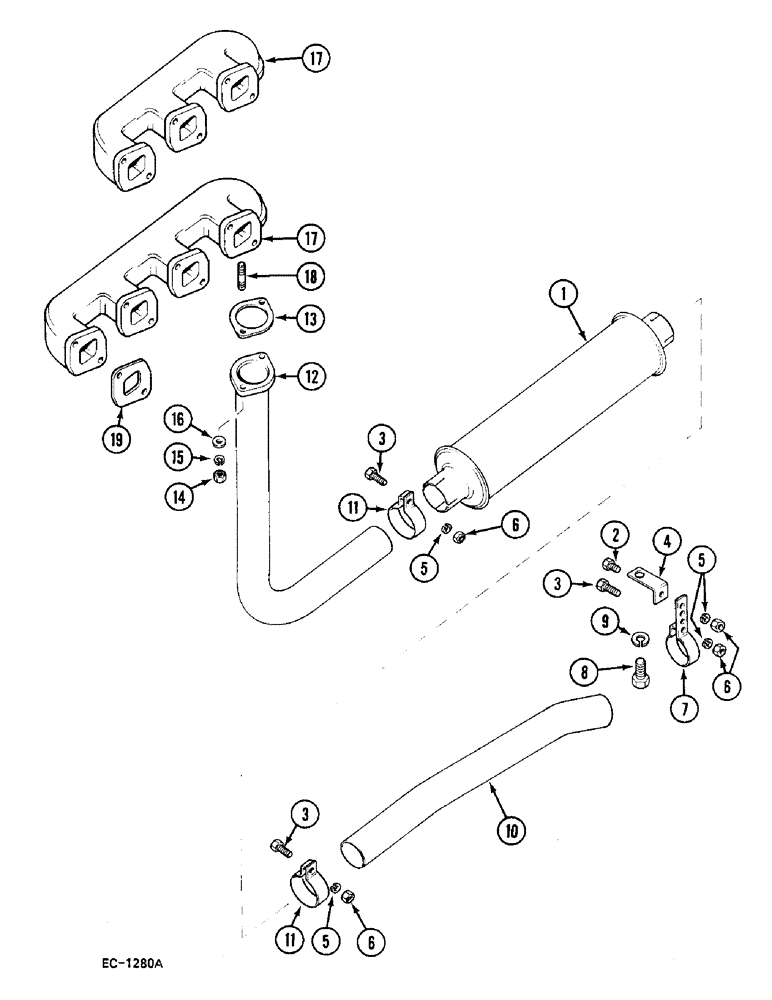

Запчасти Case IH 248 (2-136) - UNDERSLUNG EXHAUST AND MANIFOLD, 248, 258, 385, 485: 180001-; 585: 1800- (02) - ENGINE

1

401489R2

MUFFLER

1шт.

2

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

7/8 inch

1шт.

3

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

BOLT, 1-1/8 inch

3шт.

4

90156C1

GUARD

BRACKET

1шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

3шт.

6

120377

NUT,3/8" - 16, Gr 5

3шт.

7

90157C1

SUPPORT

1шт.

8

271714

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

1шт.

9

492-11062

BEARING WASHER,5/8"

1шт.

10

90155C1

EXHAUST SYSTEM PIPE

1шт.

11

67672C1

CLAMP

2шт.

12

82864C1

TUBE,546.5 mm Length

1шт.

13

401486R1

MANIFOLD GASKET

1шт.

14

103026

NUT,3/8"-24, G5

Models 248, 385, 485 tractor

8шт.

14

103026

NUT,3/8"-24, G5

Model 258 and 585 tractor

10шт.

15

103321

LOCK WASHER,3/8"

2шт.

16

20285H

WASHER

lock, models 248, 385, 485 tractor

6шт.

16

20285H

WASHER

lock, models 258 and 585 tractor

8шт.

17

3005124R12

MANIFOLD ASSEMBLY, models 248, 385, 485 tractor

1шт.

17

3005276R12

MANIFOLD

ASSEMBLY, model 258 and 585 tractor

1шт.

18

3055663R1

STUD

3/8 x 38 mm

2шт.

19

3132434R1

MANIFOLD GASKET,0.5mm Thk

models 248, 385, 485 tractor

3шт.

19

3132434R1

MANIFOLD GASKET,0.5mm Thk

model 258 and 585 tractor

4шт.
