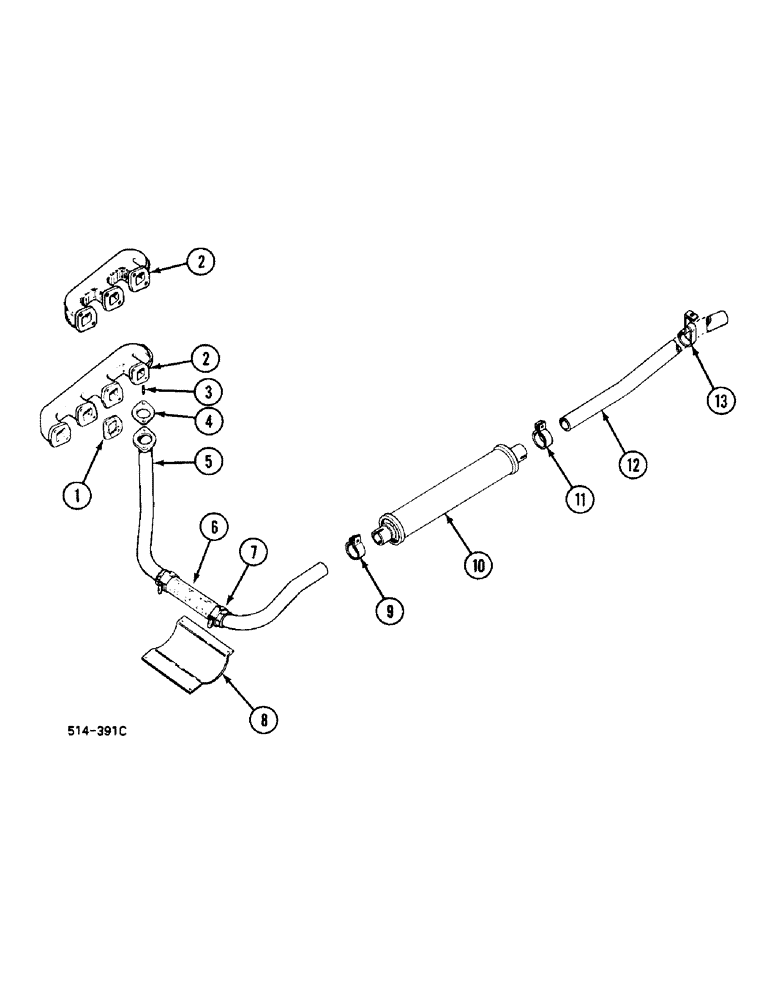

Запчасти Case IH 248 (2-132) - UNDERSLUNG EXHAUST, 248: -1730, 258: -957, 385: -5287, 485: -9129, 585: -12313 (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

models 248, 258, 385 tractor

3шт.

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

model 258 and 585 tractor

4шт.

2

3005276R12

MANIFOLD

ASSEMBLY, model 258 and 585 tractor

1шт.

2

3005124R12

MANIFOLD ASSEMBLY, models 248, 385, 485 tractor

1шт.

3

3055663R1

STUD

3/8 x 28 mm

2шт.

103026

NUT,3/8"-24, G5

Models 248, 258, 385 tractor

8шт.

103026

NUT,3/8"-24, G5

Model 258 and 585 tractor

10шт.

103321

LOCK WASHER,3/8"

2шт.

20285H

WASHER

models 248, 385, 485 tractor

6шт.

20285H

WASHER

model 258 and 585 tractor

8шт.

4

401486R1

MANIFOLD GASKET

1шт.

5

401485R12

PIPE ASSY.

models 248, 258, 485, 585 tractor

1шт.

5

1287964C91

PIPE

PIPE ASSEMBLY, model 385 tractor

1шт.

6

114614C1

SHIELD

1шт.

7

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

2шт.

8

401488R1

GUARD

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

4шт.

9

67672C1

CLAMP

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

BOLT, 1-1/8 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

10

401489R2

MUFFLER

PIPE

1шт.

11

67672C1

CLAMP

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

1-1/8 inch

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12

401490R2

PIPE

1шт.

13

3125262R1

SUPPORT

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

BOLT, 1-1/8 inch

1шт.

271714

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.
