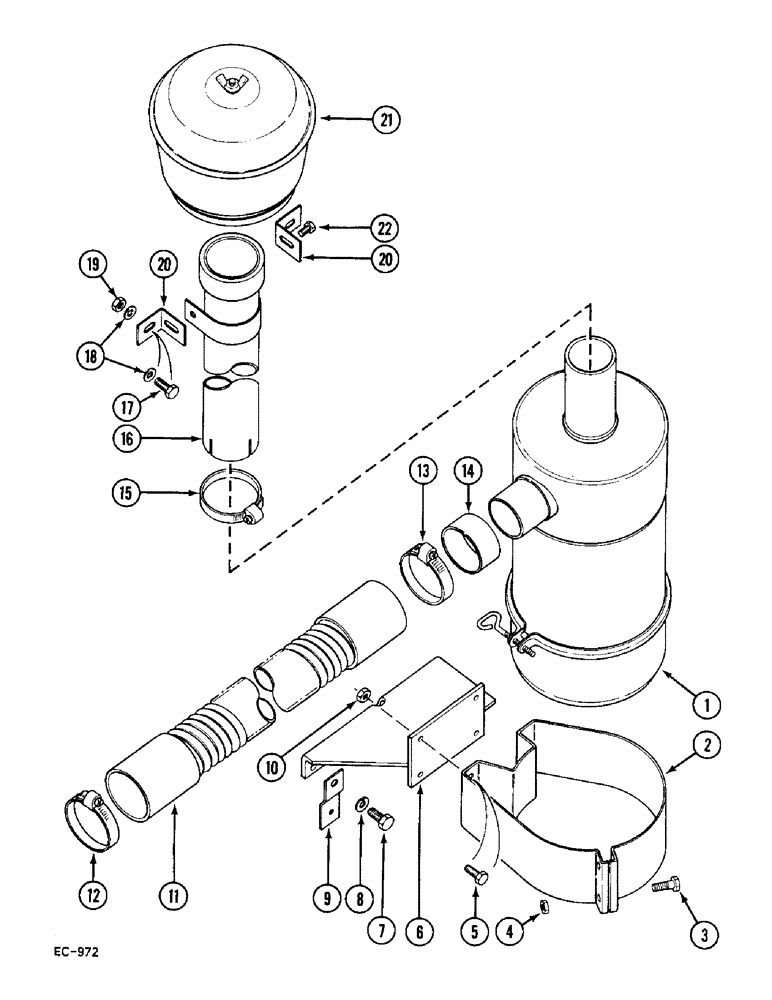

Запчасти Case IH 248 (2-128) - OIL BATH AIR CLEANER, 585 (02) - ENGINE

1

3129578R91

AIR CLEANER

Burgess

1шт.

2

3048024R1

SUPPORT

BRACKET

1шт.

3

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

4

120376

NUT,5/16"-18, G5

2шт.

5

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, 5/16 x 3/4 inch

4шт.

6

3129573R1

SUPPORT

BRACKET

1шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

8

120382

LOCK WASHER,Helical Spring, 3/8"

3шт.

9

3129567R1

SUPPORT

BRACKET

1шт.

10

120376

NUT,5/16"-18, G5

4шт.

11

3129568R1

INTAKE AIR HOSE,698.00 mm

1шт.

12

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

1шт.

13

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

1шт.

14

3129577R1

SLEEVE

1шт.

15

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

1шт.

16

3129569R1

TUBE,70 mm Length

1шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

18

120392

WASHER,1/4", SAE

6шт.

19

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

20

3129579R1

SUPPORT

BRACKET

2шт.

21

3120985R1

AIR PRE-CLEANER ASSY

1шт.

22

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

100700H

BOLT

1шт.
