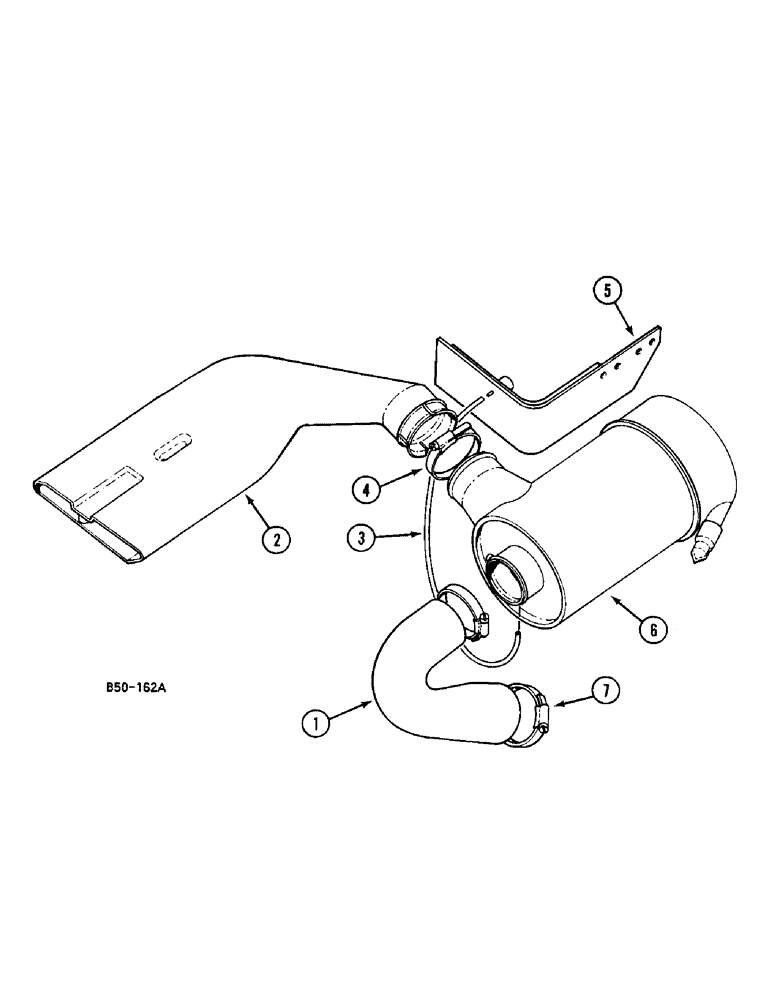

Запчасти Case IH 248 (2-120) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

1

1502062C1

INTAKE AIR HOSE,63.50 mm ID, 71.12 mm ID x 170.94 mm

models 248, 385, 485 tractor

1шт.

1

3113612R1

INTAKE AIR HOSE,63.50 mm ID, 69.85 mm ID x 228.60 mm

Model 258 and 585 tractor

1шт.

2

529864R1

DUCT

1шт.

3

3123825R2

TUBE

1шт.

4

21423R1

CLAMP

1шт.

5

1502064C1

SUPPORT

BRACKET, models 248, 385, 485 tractor

1шт.

5

3121420R1

SUPPORT

BRACKET, model 258 and 585 tractor

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

6

CLEANER air, see Figure 2-122, 126, 124

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

7

539994R1

CLAMP

2шт.
