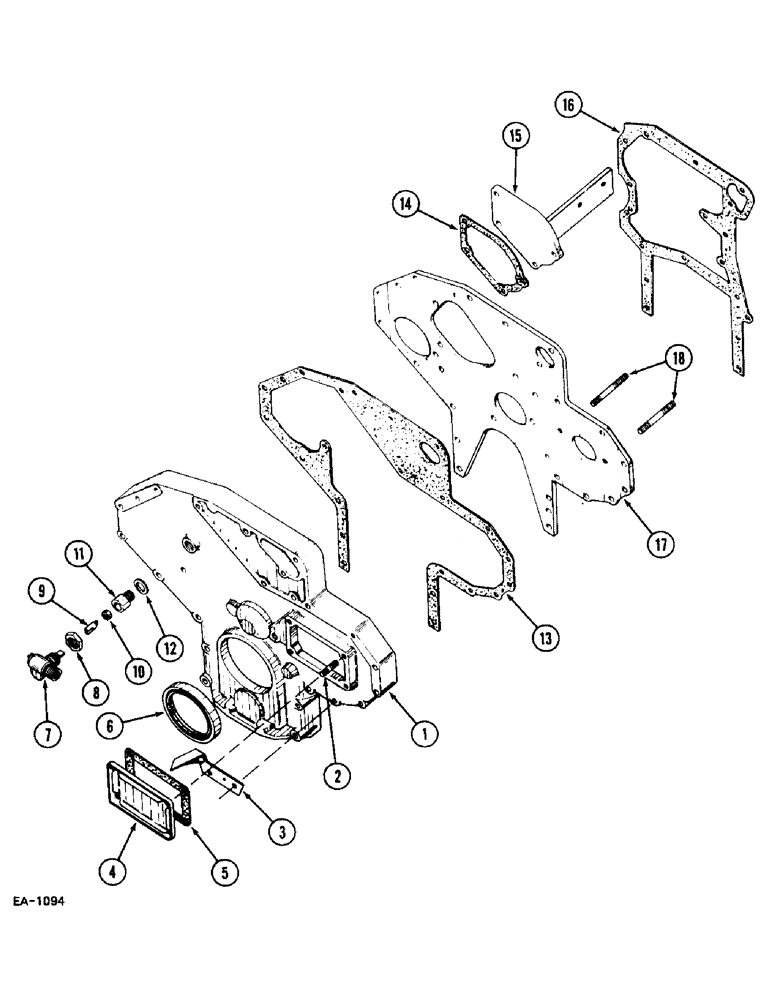

Запчасти Case IH 248 (2-116) - CYLINDER BLOCK FRONT COVER (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
3136057R14
COVER ASSY
with Ref. 2
1шт.
179826
BOLT,Hex, 5/16" - 18 x 2", Gr 5
Models 248, 258, 485 tractor
8шт.
179826
BOLT,Hex, 5/16" - 18 x 2", Gr 5
9шт.
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
2шт.
9635082
NUT,5/16" - 18, Gr 5
6шт.
3050129R1
LOCK WASHER
WASHER lock, 5/16 inch
4шт.
3218395R1
BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk
Lock (5/16")
6шт.
179828
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
Models 248, 385, 485 tractor
2шт.
179828
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
Model 258 and 585 tractor
1шт.
2
3055242R1
STUD
5/16 x 30 mm
4шт.
3
3136252R11
INDICATOR
models 248, 385, 485 tractor
1шт.
3
3136040R21
ADJUSTER
INDICATOR, model 258 and 585 tractor
1шт.
4
3055140R1
COVER
1шт.
80681
LOCK WASHER,5/16"
4шт.
9635082
NUT,5/16" - 18, Gr 5
4шт.
131402H
WASHER
4шт.
5
3138640R1
GASKET
1шт.
6
3228133R93
SEAL KIT
PACKAGE seals, consists of: 1 retainer and 1 seal
1шт.
713778R1
O-RING,3mm Thk x 55mm ID
1шт.
932681R1
DOWEL,4mm OD x 24mm L
Pin
1шт.
932224R1
DOWEL,M4 x 32, Oval
1шт.
932652R1
DOWEL,4mm OD x 28mm L
1шт.
MANUAL
1шт.
7
3055982R93
DRIVE, ANGLE
1шт.
8
3132116R1
NUT
1шт.
9
3056986R1
SUPPORT
COUPLING, "VDO"
1шт.
10
3052295R91
SEAL,6mm ID x 16mm OD x 7mm Thk
1шт.
11
3055983R1
REDUCER FITTING
SPACER
1шт.
12
3051337R1
SEALING RING,M18 x 24mm OD x 1.5mm Thk
1шт.
13
3055994R1
GASKET
1шт.
14
3132541R1
GASKET
1шт.
15
3138776R91
COVER
ASSEMBLY, models 248, 385, 485 tractor
1шт.
15
3136049R1
COVER ASSY
model 258 and 585 tractor
1шт.
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
4шт.
9635082
NUT,5/16" - 18, Gr 5
4шт.
16
3055239R1
GASKET
1шт.
17
3055996R11
PLATE ASSY.
1шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
7шт.
3050129R1
LOCK WASHER
WASHER lock
7шт.
20990R1
PLUG
1шт.
18
3055065R1
STUD
2шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
Выбрано товаров: 44
