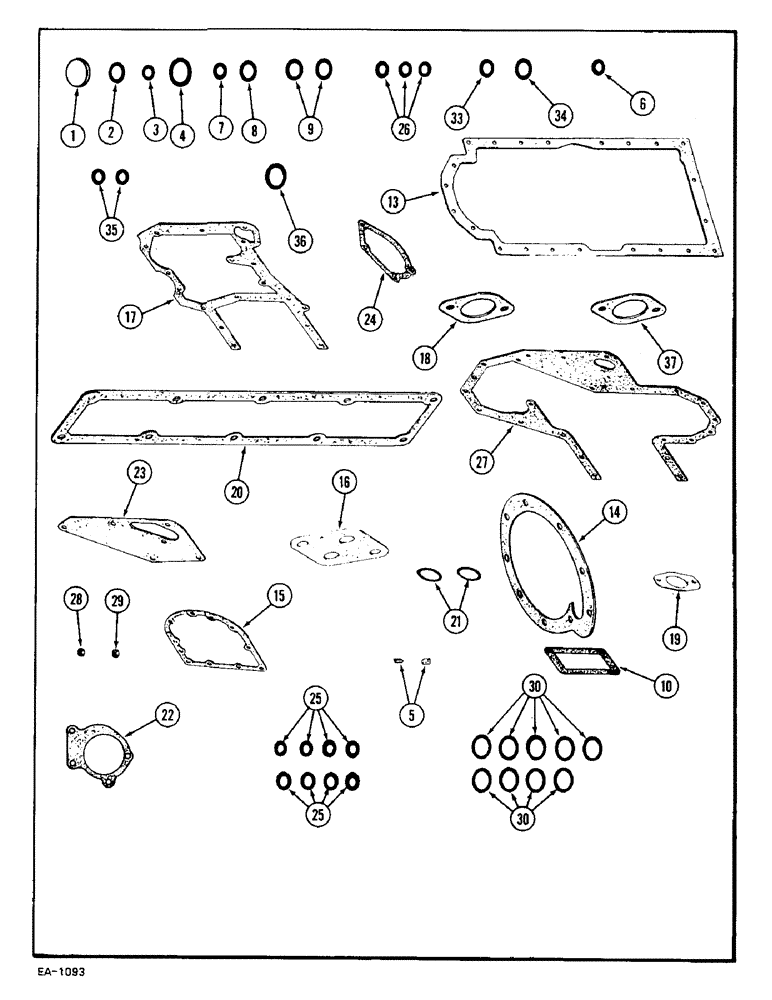

Запчасти Case IH 248 (2-110) - CYLINDER BLOCK GASKET KIT (02) - ENGINE

3136802R98

GASKET KIT

consists of: Ref. 1 thru 37, model 385 tractor

1шт.

3136813R99

GASKET KIT

consists of: Ref. 1 thru 37, model 258 and 585 tractor

1шт.

3136803R97

GASKET KIT

consists of: Ref. 1 thru 37, model 248 and 485 tractor

1шт.

1

41-3044

PLUG,Exp, 2 3/4"

1шт.

2

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

model 258 and 585 tractor

1шт.

3

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing

1шт.

4

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

5

714868R1

SEALING STRIP

2шт.

6

717222R1

O-RING

1шт.

7

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

Models 248, 258, 485, 585 tractor

1шт.

8

933608R1

SEALING RING,M26 x 31 x 2

1шт.

9

3138687R1

RING

2шт.

10

3138640R1

GASKET

1шт.

13

3055161R1

GASKET

model 258 and 585 tractor

1шт.

14

3055177R1

GASKET

1шт.

15

3055215R1

GASKET

1шт.

16

3055237R1

GASKET

1шт.

17

3055239R1

GASKET

1шт.

18

3138639R1

GASKET

models 258, 385, 585 tractor

1шт.

19

3055384R1

GASKET

1шт.

20

3055393R3

GASKET

model 258 and 585 tractor

1шт.

21

3055952R2

O-RING

model 258 and 585 tractor

2шт.

22

3055961R1

GASKET

model 258 and 585 tractor

1шт.

23

3055999R1

GASKET

models 248, 258, 485, 585 tractor

1шт.

24

3132541R1

GASKET

models 248, 258, 485, 585 tractor

1шт.

25

933610R1

SEALING RING,M14 x 18 x 1.8

8шт.

26

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

3шт.

27

3055994R1

GASKET

models 248, 258, 485, 585 tractor

1шт.

28

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

optional with P/N 784162R91

1шт.

29

784162R91

SEALING RING

optional with P/N 3052295R91, model 258 and 585tractor

1шт.

30

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

9шт.

33

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

34

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

models 248, 258, 485, 585 tractor

1шт.

35

3132869R1

O-RING

models 248, 258, 485, 585 tractor

2шт.

36

933155R1

SEALING RING,M16 x 20 x 1.5

Models 258, 385, 585 tractor

1шт.

37

3136406R1

GASKET

model 258 and 585 tractor

1шт.

37

3136248R1

MANIFOLD GASKET,0.5mm Thk

models 248, 485, 585 tractor

1шт.

3055143R1

GASKET

model 385 tractor, not illustrated

1шт.

3055160R1

OIL PAN GASKET SET

model 385 tractor, not illustrated

1шт.

3055240R1

GASKET

model 385 tractor, not illustrated

1шт.

3136766R2

SEALING WASHER

model 385 tractor, not illustrated

1шт.

3055246R1

GASKET

model 385 tractor, not illustrated

1шт.

3055394R2

GASKET

model 385 tractor, not illustrated

1шт.

3057397R3

GASKET

model 385 tractor, not illustrated

1шт.

3144072R2

GASKET

model 385 tractor, not illustrated

1шт.

3144657R91

PACKAGE

consists of: 1 tube, 1 hose, 1 clamp, 1 clip, 1 plate, 1 bolt, 2 rings, 1 ring and 1ring

1шт.
