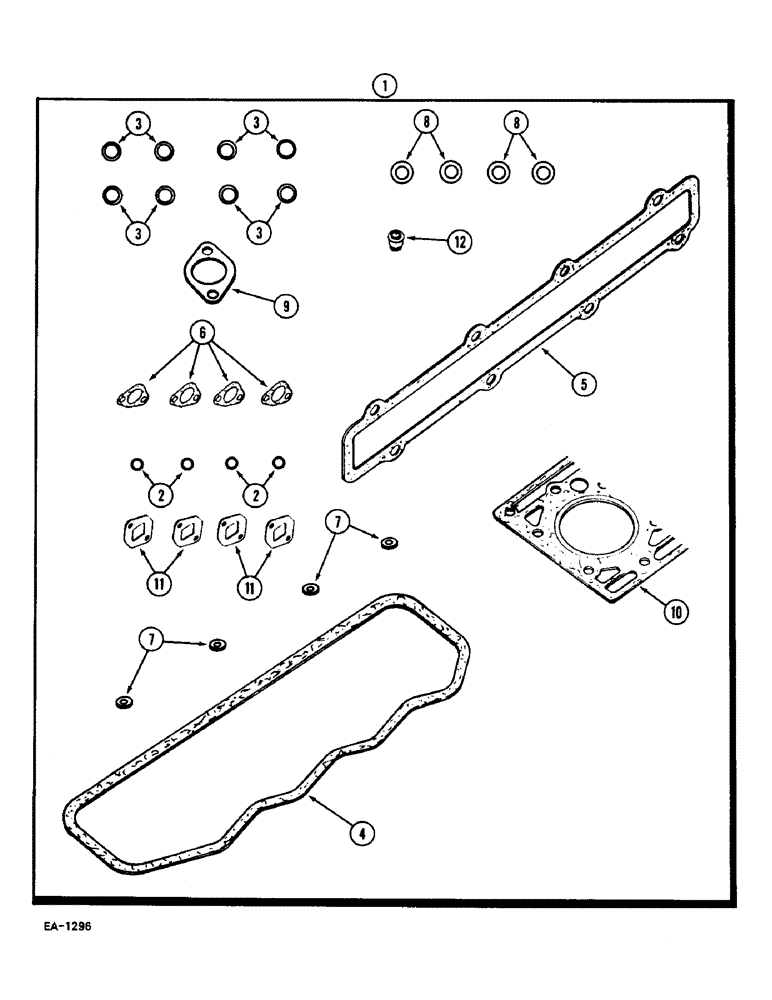

Запчасти Case IH 248 (2-108) - SERVICE KIT, 258, 585 (02) - ENGINE

1

3136799R99

GASKET KIT

consists of: Ref. 2 thru 12

1шт.

2

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

4шт.

3

3053133R1

SEALING RING,M8 x 11.5 x 1

8шт.

4

3138642R1

GASKET

1шт.

5

3055398R1

GASKET

1шт.

6

3055306R1

GASKET

4шт.

7

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

4шт.

8

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

4шт.

9

3132143R1

GASKET

1шт.

10

3228362R1

CYLINDER HEAD GASKET

1шт.

11

3132434R1

MANIFOLD GASKET,0.5mm Thk

4шт.

12

3228677R91

SEAL

PACKAGE

1шт.
