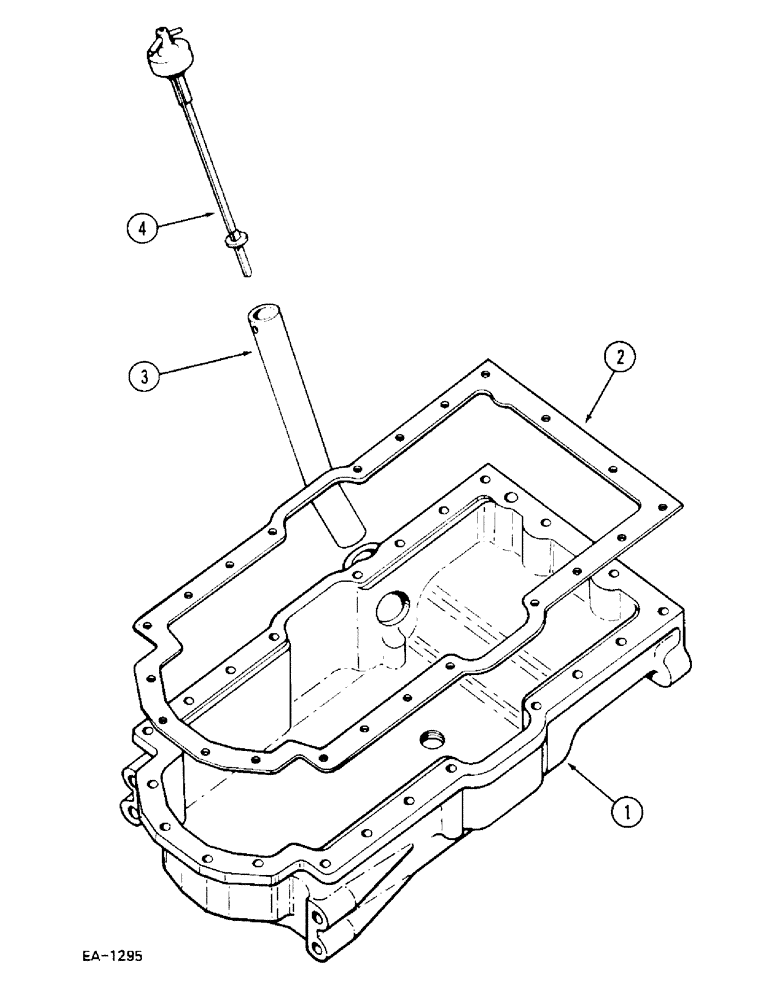

Запчасти Case IH 248 (2-098) - CYLINDER BLOCK OIL PAN, 258, 585 (02) - ENGINE

1

3136055R95

PAN, ENGINE OIL

PAN, OIL, Start Serial: 18000

1шт.

1

1806777C91

PAN, ENGINE OIL

PAN, OIL, Serial Range: -18001

1шт.

181089

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

5/16 x 1 inch

18шт.

181088

BOLT (SPREADER),Hex, 5/16" - 18 x 1", Gr 5

2шт.

181101

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

27326R1

WASHER,.344" x 11/16" x .089", HDN

22шт.

3132544R2

PLUG

1шт.

933608R1

SEALING RING,M26 x 31 x 2

1шт.

2

3055161R1

GASKET

1шт.

3

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE

1шт.

4

3136242R2

DIPSTICK

, Start Serial: 18000

1шт.

4

1329040C1

DIPSTICK

, Serial Range: -18001

1шт.
