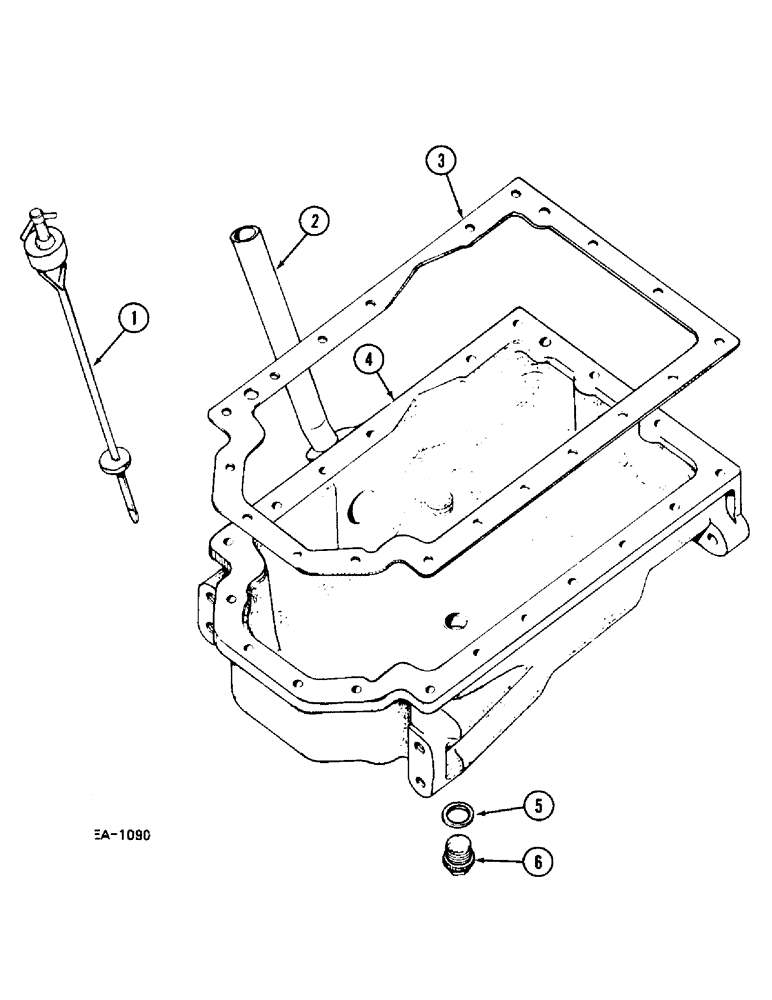

Запчасти Case IH 248 (2-096) - OIL PAN, 248, 385, 485 (02) - ENGINE

1

3136242R2

DIPSTICK

, Start Serial: 18000

1шт.

1

1329040C1

DIPSTICK

, Serial Range: -18001

1шт.

2

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE

1шт.

3

3055160R1

OIL PAN GASKET SET

1шт.

4

3136042R95

SUMP

PAN oil, Start Serial: 18000

1шт.

4

1806866C91

PAN, ENGINE OIL

PAN, OIL, Serial Range: -18001

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16")

4шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

11шт.

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

15шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

BOLT, 5/16 x 3/8 inch

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

5

933608R1

SEALING RING,M26 x 31 x 2

1шт.

6

3132544R2

PLUG

1шт.
