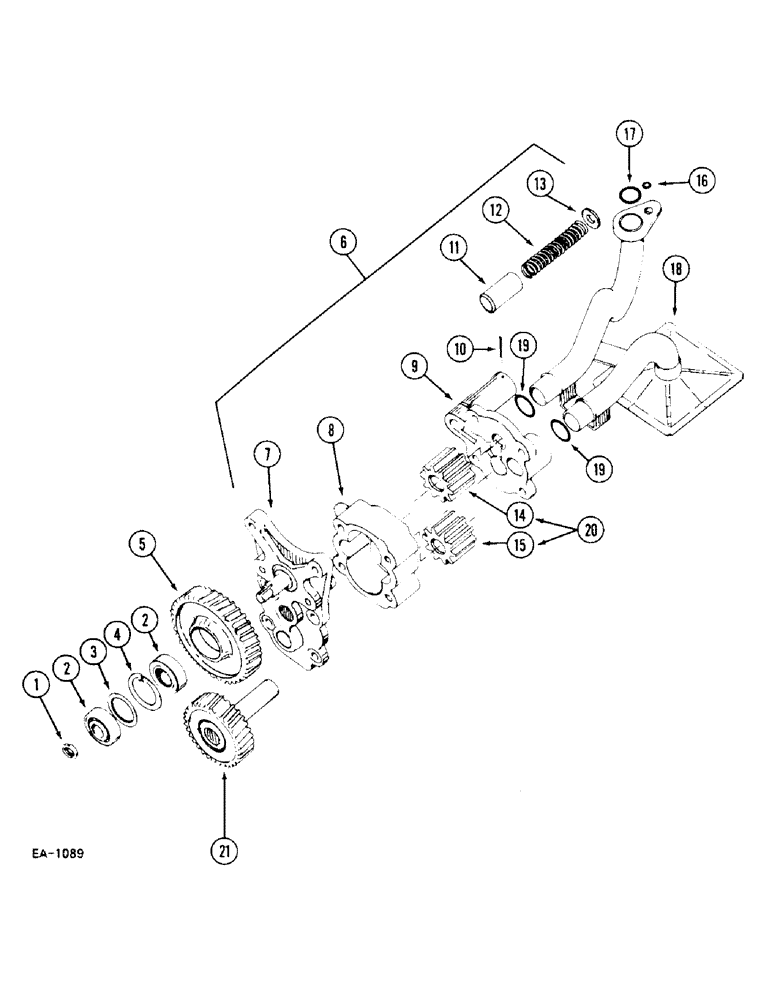

Запчасти Case IH 248 (2-092) - OIL PUMP (02) - ENGINE
№
Артикул
Название
Примечание
Количество
3136429R95
PUMP, ENGINE OIL
ASSEMBLY, models 248, 385, 485 tractor
1шт.
3136430R95
PUMP, ENGINE OIL
ASSEMBLY, consists of: Ref. 1 thru 15, model 258 and 585 tractor
1шт.
3050129R1
LOCK WASHER
WASHER, 5/16 inch
4шт.
21035R1
HEX SOC SCREW,5/16"-18 x 1"
4шт.
1
3228141R1
LOCK NUT
1шт.
2
3055294R91
TAPERED BEARING
2шт.
3
3055292R1
WASHER
WASHER
1шт.
4
933579R1
SNAP RING,M35, Int
1шт.
5
3055291R1
PINION
GEAR
1шт.
6
3136435R95
HOUSING ASSY.
CARRIER, models 248, 385, 485 tractor
1шт.
6
3136441R95
HOUSING ASSY.
CARRIER, consists of: Ref. 7 thru 13, model 258 and 585 tractor
1шт.
932597R1
LOCK PIN,M10 x 14, Slotted
Roll
3шт.
7
CARRIER
1шт.
3055297R5
AXLE
AXLE
1шт.
8
CASE
1шт.
9
cover
1шт.
179823
BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5
Models 248, 385, 485 tractor
4шт.
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
Model 258 and 585 tractor
4шт.
9635082
NUT,5/16" - 18, Gr 5
4шт.
3050129R1
LOCK WASHER
5/16 inch, model 258 and 585 tractor
4шт.
10
103387
COTTER PIN,1/8" x 1 1/2"
1шт.
11
3055202R2
VALVE
1шт.
12
3136264R1
SPRING
1шт.
13
3139620R1
SPRING WASHER
CAP
1шт.
14
GEAR idle, order: 3136440R91
1шт.
15
GEAR, order: 3136440R91
1шт.
16
717222R1
O-RING
1шт.
17
3228577R1
O-RING,3.1mm Thk x 24.5mm ID, Cl 7
1шт.
18
1806888C1
PIPE ASSY.
models 248, 385, 485 tractor
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Models 248, 385, 485 tractor
1шт.
3050129R1
LOCK WASHER
WASHER, 5/16 inch, models 248, 385, 485 tractor
1шт.
18
1806778C1
PIPE ASSY.
model 258 and 585 tractor
1шт.
24933R1
HEX SOC SCREW,7/16"-14 x 3 3/4"
Model 258 and 585 tractor
1шт.
3218543R1
LOCK WASHER
model 258 and 585 tractor
1шт.
19
3228577R1
O-RING,3.1mm Thk x 24.5mm ID, Cl 7
2шт.
20
3136440R91
GEAR-SET
models 248, 385, 485 tractor
1шт.
20
3132503R91
GEAR-SET
model 258 and 585 tractor
1шт.
21
3136437R91
PINION
GEAR, models 248, 385, 485 tractor
1шт.
21
3136442R91
PINION
GEAR, model 258 and 585 tractor
1шт.
