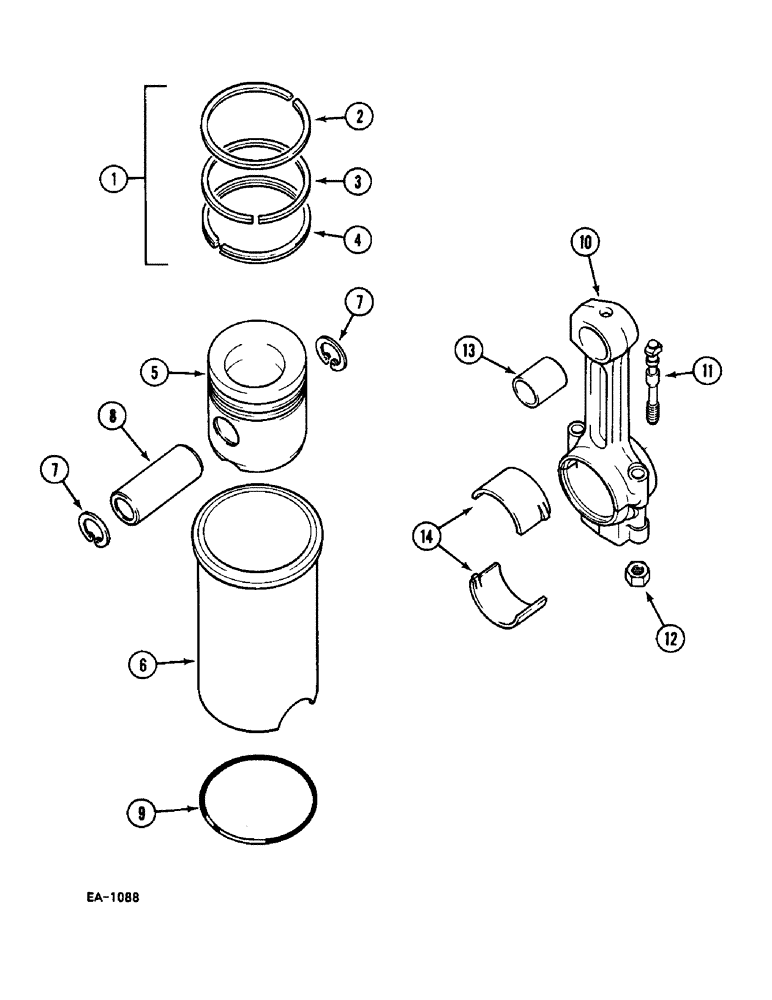

Запчасти Case IH 248 (2-090) - CONNECTING ROD, PISTONS AND SLEEVE (02) - ENGINE

1

3218416R92

PISTON RING SET

consists of: Ref. 2, 3 and 4, models 248, 385, 485 tractor

3шт.

1

3218416R92

PISTON RING SET

consists of: Ref. 2, 3 and 4, model 258 and 585 tractor

4шт.

2

RING

1шт.

3

RING

1шт.

4

RING

1шт.

5

3218759R95

SLEEVE ASSY

PISTON with Ref. 6, 7 and 8, model 248 and 485 tractor

3шт.

5

3218758R95

SLEEVE ASSY

PISTON with Ref. 6, 7 and 8, model 258 and 585 tractor

4шт.

5

3218758R95

SLEEVE ASSY

PISTON with Ref. 6, 7 and 8, model 385 tractor

3шт.

6

3139592R4

SLEEVE CYLINDER

model 248 and 485 tractor

3шт.

6

3139587R3

SLEEVE CYLINDER

model 258 and 585 tractor

4шт.

6

3139587R3

SLEEVE CYLINDER

model 385 tractor

3шт.

7

933327R1

SNAP RING,M36, Int

retaining, models 248, 385, 485 tractor

6шт.

7

933327R1

SNAP RING,M36, Int

retaining, model 258 and 585 tractor

8шт.

8

3055217R2

PISTON PIN

modles 248, 385, 485 tractor

3шт.

8

3055217R2

PISTON PIN

model 258 and 585 tractor

4шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

models 248, 385, 485 tractor

3шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

model 258 and 585 tractor

4шт.

10

3055030R24

ROD, CONNECTING

ASSEMBLY, model 248 and 485 tractor

3шт.

10

3055029R24

CONNECTING ROD

ASSEMBLY, model 258 and 585 tractor

4шт.

10

3055029R24

CONNECTING ROD

ASSEMBLY, model 385 tractor

3шт.

11

3055033R11

BOLT

2шт.

12

NUT

1шт.

13

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

1шт.

14

3055351R91

BEARING ASSY

standard, models 248, 385, 485 tractor

3шт.

14

3055351R91

BEARING ASSY

standard, model 258 and 585 tractor

4шт.

14

3056834R11

BEARING ASSY

0.25 mm undersize, models 248, 385, 485 tractor

3шт.

14

3056834R11

BEARING ASSY

0.25 mm undersize, model 258 and 585 tractor

4шт.
