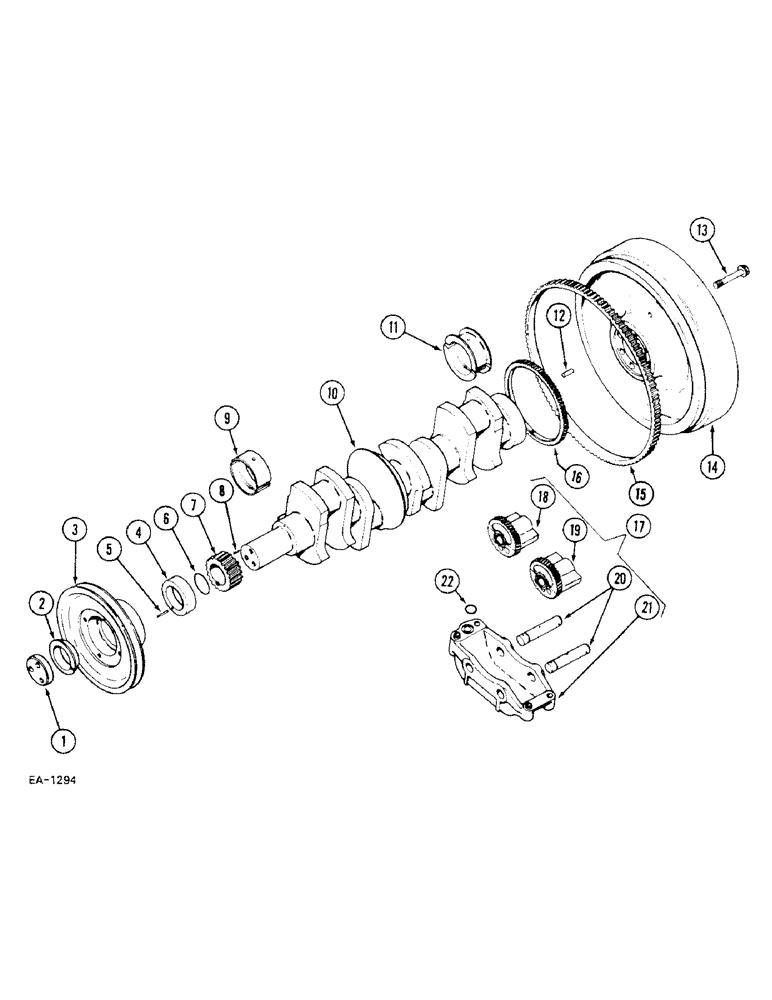

Запчасти Case IH 248 (2-084) - CRANKSHAFT, FLYWHEEL AND BEARINGS, 258, 585 (02) - ENGINE

1

3055154R1

WASHER

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3138874R1

BEARING WASHER

RING

1шт.

3

3138838R3

PULLEY

1шт.

4

3228258R91

O-RING

RING, order: P/N 3228133R93

1шт.

5

932681R1

DOWEL,4mm OD x 24mm L

Pin

1шт.

6

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

7

3055028R1

PINION

GEAR, 33 T

1шт.

8

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

9

3055130R21

CRANKSHAFT BEARING

standard

4шт.

9

3056832R21

BEARING ASSY

0.25 mm, undersize

4шт.

10

3132968R93

CRANKSHAFT BEARING

standard

1шт.

3055028R1

PINION

GEAR, 33 T

1шт.

3136237R1

PINION

GEAR

1шт.

37-2614

DOWEL,3/8" x 7/8"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

2шт.

3055129R21

CRANKSHAFT BEARING

1шт.

3055130R21

CRANKSHAFT BEARING

4шт.

3055351R91

BEARING ASSY

4шт.

10

3132969R93

CRANKSHAFT

0.25 mm, undersize

1шт.

3055028R1

PINION

GEAR, 33 T

1шт.

3136237R1

PINION

GEAR

1шт.

37-2614

DOWEL,3/8" x 7/8"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

3056820R11

BEARING ASSY

0.25 mm, undersize

1шт.

3056832R21

BEARING ASSY

0.25 mm, undersize

4шт.

3056834R11

BEARING ASSY

0.25 mm, undersize

4шт.

11

3055129R21

CRANKSHAFT BEARING

standard

1шт.

11

3056820R11

BEARING ASSY

0.25 mm undersize

1шт.

12

37-2614

DOWEL,3/8" x 7/8"

1шт.

13

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Used with 3136044R41

7шт.

13

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

Used with 1808412C91

7шт.

14

3136044R42

FLYWHEEL WITH GEAR

ASSEMBLY, for tractors with 11 inch clutch, with Ref. 15

1шт.

14

1808412C91

FLYWHEEL

ASSEMBLY, for tractors with 12 inch clutch

1шт.

15

60883H

RING GEAR

1шт.

16

3136237R1

PINION

GEAR

1шт.

17

3228366R91

BALANCER

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

BOLT, 7/16 x 21/4 inch

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

1шт.

3218543R1

LOCK WASHER

3шт.

3228372R91

BALANCING WEIGHT

PACKAGE, consists of: Ref. 18 and 19

1шт.

18

WEIGHT

1шт.

19

WEIGHT

1шт.

20

3132878R11

PIN,23mm OD x 93mm L

SHAFT ASSEMBLY

2шт.

21

HOUSING ASSEMBLY, order: P/N 3228366R91

1шт.

932229R1

SPLIT PIN/SAFETY PIN

roll, 4 x 20 mm

2шт.

932299R1

LOCK PIN,M2.5 x 20, Slotted

2шт.

3055174R1

BUSHING

2шт.

22

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

3228133R93

SEAL KIT

PACKAGE, crankshaft oil seal, consists of: 1 retainer and 1 seal, not illustrated

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

not illustrated

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

not illustrated, not illustrated

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin, Not Illustrated

1шт.

932224R1

DOWEL,M4 x 32, Oval

Not Illustrated

1шт.

932652R1

DOWEL,4mm OD x 28mm L

Not Illustrated

1шт.

MANUAL

1шт.
