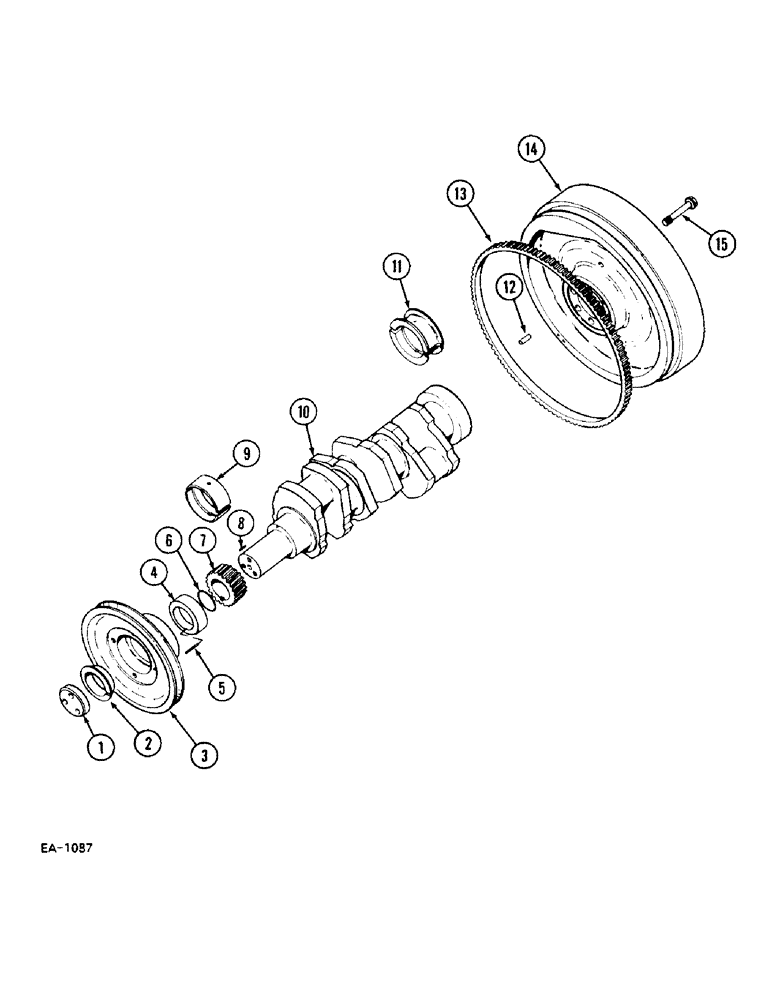

Запчасти Case IH 248 (2-080) - CRANKSHAFT, FLYWHEEL AND BEARINGS, 248, 485 (02) - ENGINE

1

3055154R1

WASHER

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3138874R1

BEARING WASHER

RING

1шт.

3

1808484C1

PULLEY

1шт.

4

3228133R93

SEAL KIT

RING ASSEMBLY

1шт.

5

932681R1

DOWEL,4mm OD x 24mm L

1шт.

6

713778R1

O-RING,3mm Thk x 55mm ID

PIN

1шт.

7

3055028R1

PINION

GEAR, 33 T

1шт.

8

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

9

3055130R21

CRANKSHAFT BEARING

standard

4шт.

9

3056832R21

BEARING ASSY

0.25 mm, undersize

4шт.

10

3055782R92

CRANKSHAFT BEARING

standard

1шт.

3055028R1

PINION

GEAR, 33 T

1шт.

37-2614

DOWEL,3/8" x 7/8"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

3055129R21

CRANKSHAFT BEARING

1шт.

3055130R21

CRANKSHAFT BEARING

3шт.

3055351R91

BEARING ASSY

3шт.

11

3055129R21

CRANKSHAFT BEARING

standard

1шт.

11

3056820R11

BEARING ASSY

0.25 mm, undersize

1шт.

12

37-2614

DOWEL,3/8" x 7/8"

1шт.

13

60883H

RING GEAR

1шт.

14

3144614R95

FLYWHEEL WITH GEAR

ASSEMBLY, with Ref. 13

1шт.

15

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

7шт.
