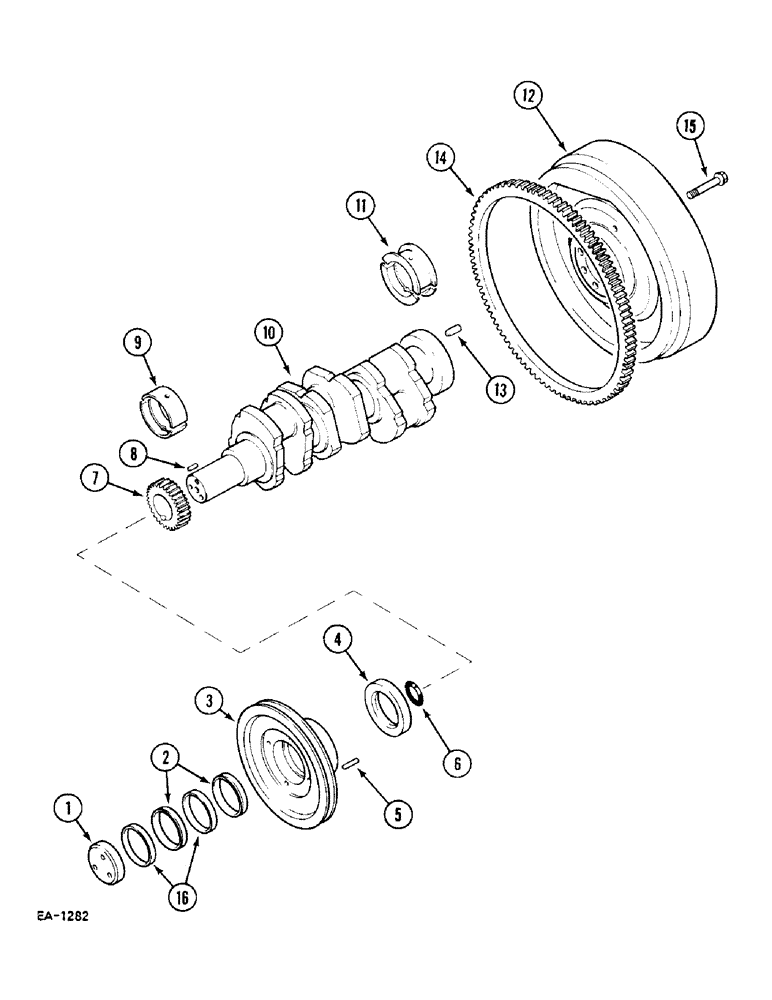

Запчасти Case IH 248 (2-072) - CRANKSHAFT, FLYWHEEL AND BEARINGS, 385 (02) - ENGINE

1

3055154R1

WASHER

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3055152R91

RING

SPRING

2шт.

3

1808494C1

PULLEY

1шт.

4

3228133R93

SEAL KIT

RING ASSEMBLY

1шт.

5

932681R1

DOWEL,4mm OD x 24mm L

Pin

1шт.

6

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

7

3055028R1

PINION

GEAR, 33 T

1шт.

8

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

9

3055130R21

CRANKSHAFT BEARING

3шт.

9

3056832R21

BEARING ASSY

0.25 mm, undersize

3шт.

10

3055746R92

CRANKSHAFT BEARING

1шт.

3055028R1

PINION

GEAR, 33 T

1шт.

37-2614

DOWEL,3/8" x 7/8"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

3055129R21

CRANKSHAFT BEARING

1шт.

3055130R21

CRANKSHAFT BEARING

3шт.

3055351R91

BEARING ASSY

3шт.

10

3055770R92

CRANKSHAFT

0.25 mm, undersize

1шт.

3055028R1

PINION

GEAR, 33 T

1шт.

37-2614

DOWEL,3/8" x 7/8"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

3056820R11

BEARING ASSY

1шт.

3056832R21

BEARING ASSY

3шт.

3056834R11

BEARING ASSY

3шт.

10

3055772R92

CRANKSHAFT

0.50 mm, undersize

1шт.

3055028R1

PINION

GEAR, 33 T

1шт.

37-2614

DOWEL,3/8" x 7/8"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

3056875R11

BEARING ASSY

1шт.

3056877R21

BEARING ASSY

3шт.

3056879R11

BEARING ASSY

3шт.

10

3055774R92

CRANKSHAFT

0.75 mm, undersize

1шт.

3055028R1

PINION

GEAR, 33 T

1шт.

37-2614

DOWEL,3/8" x 7/8"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

Dowel

1шт.

3055776R11

BEARING ASSY

1шт.

3055779R21

BEARING ASSY

3шт.

3055781R11

BEARING ASSY

3шт.

11

3055129R21

CRANKSHAFT BEARING

1шт.

11

3056820R11

BEARING ASSY

0.25 mm, undersize

1шт.

12

1808166C91

FLYWHEEL

1шт.

13

37-2614

DOWEL,3/8" x 7/8"

1шт.

14

60883H

RING GEAR

1шт.

15

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

7шт.

16

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

thrust

2шт.

3228133R93

SEAL KIT

PACKAGE seals, consists of retainer and seal, not illustrated

2шт.

713778R1

O-RING,3mm Thk x 55mm ID

not illustrated

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Not Illustrated

1шт.

932224R1

DOWEL,M4 x 32, Oval

Not Illustrated

1шт.

932652R1

DOWEL,4mm OD x 28mm L

Not Illustrated

1шт.

MANUAL

1шт.
