Запчасти Case IH 248 (9-936) - FRONT BOLSTER, FOR USE WITH CAMERON GARDNER LOADER, 248 (09) - CHASSIS

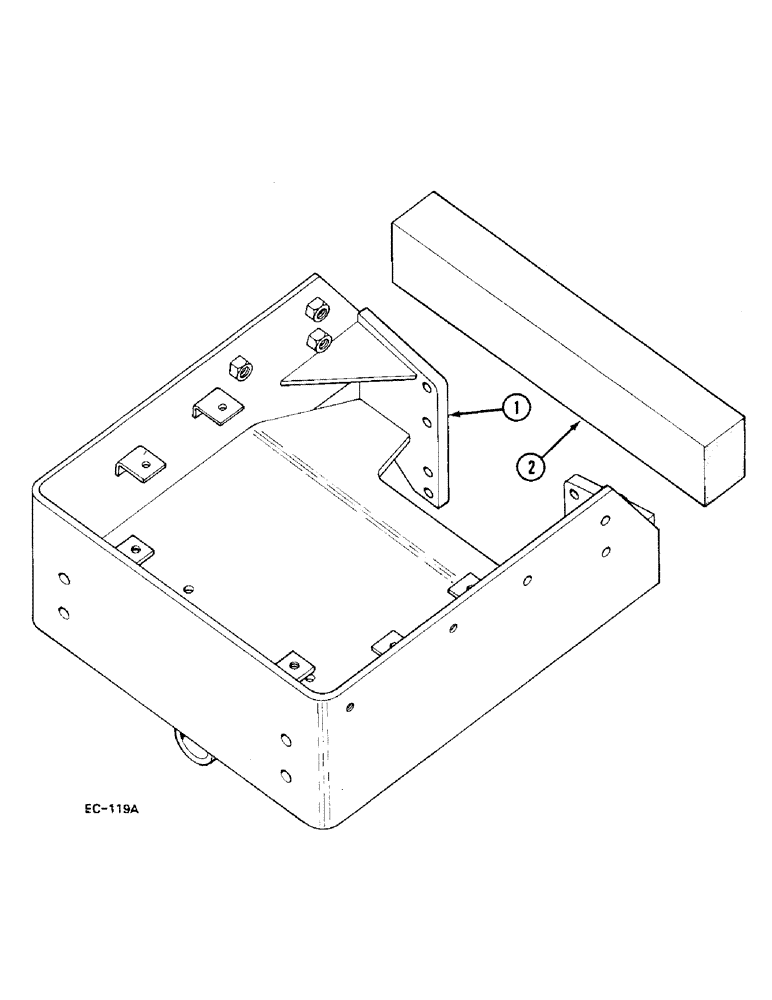

Схема запчастей Case IH 248 - (9-936) - FRONT BOLSTER, FOR USE WITH CAMERON GARDNER LOADER, 248 (09) - CHASSIS
1
2

Артикул

Название

Примечание

Количество

1

99758C1

SUPPORT

FRAME

1шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

6шт.

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

16шт.

25528R1

NUT,5/8"-11, G8

5/8 inch

6шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

2

397234R1

BAFFLE

SPARE PART

1шт.

70131C1

SUPPORT

left, not illustrated

1шт.

70132C1

SUPPORT

right, not illustrated

1шт.

Выбрано товаров: 9
