Запчасти Case IH 248 (2-058) - CYLINDER BLOCK AND RELATED PARTS, 248, 385, 485 (02) - ENGINE

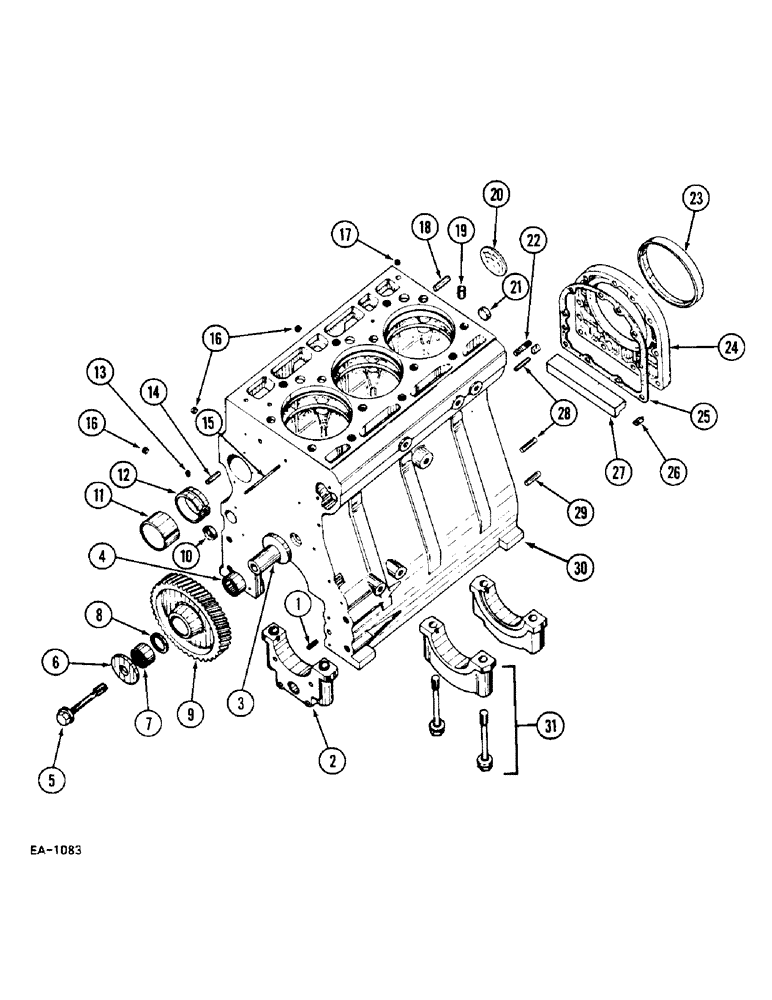

Схема запчастей Case IH 248 - (2-058) - CYLINDER BLOCK AND RELATED PARTS, 248, 385, 485 (02) - ENGINE
26
2
25
13
22
11
16
14
4
30
19
20
8
9
6
3
10
15
12
29
28
21
18
17
7
23
31
5
24
16
27
1

Артикул

Название

Примечание

Количество

1

37-2614

DOWEL,3/8" x 7/8"

1шт.

2

CAP

1шт.

3

3055373R1

CARRIER

1шт.

4

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

1шт.

4

3136515R91

BEARING

optional

1шт.

5

3055374R2

BOLT

1шт.

6

3055372R1

DISC

RING

1шт.

7

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

1шт.

7

3136515R91

BEARING

optional

1шт.

8

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING

1шт.

9

3055043R3

PINION

GEAR, 68 T

1шт.

10

933537R1

PLUG,M25, Conical

1шт.

11

3055008R2

CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W

1шт.

12

3055009R2

BEARING LINER

1шт.

13

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

2шт.

14

37-2614

DOWEL,3/8" x 7/8"

4шт.

15

3055989R1

STUD

1шт.

16

3144520R1

PLUG

1/4 inch

3шт.

17

3136004R1

COVER

1шт.

18

141284

PIN,25.4mm OD x 31.75mm L

2шт.

19

3055007R1

BUSHING

10шт.

20

41-3044

PLUG,Exp, 2 3/4"

1шт.

21

933537R1

PLUG,M25, Conical

1шт.

22

3055270R1

STUD

1шт.

23

3138701R91

SEAL

1шт.

24

3055216R1

RETAINER

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

5/16 inch

9шт.

25

3055215R1

GASKET

1шт.

26

714868R1

SEALING STRIP

2шт.

27

3055214R1

SUPPORT

1шт.

28

37-2614

DOWEL,3/8" x 7/8"

2шт.

29

141284

PIN,25.4mm OD x 31.75mm L

2шт.

30

3055001R37

CRANKCASE

BLOCK cylinder

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

2шт.

3144520R1

PLUG

1/4 inch

3шт.

37-2614

DOWEL,3/8" x 7/8"

4шт.

141284

PIN,25.4mm OD x 31.75mm L

2шт.

41-3044

PLUG,Exp, 2 3/4"

1шт.

933537R1

PLUG,M25, Conical

2шт.

3136004R1

COVER

PLUG

1шт.

3055270R1

STUD

1шт.

3055008R2

CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W

1шт.

1806820C1

CAMSHAFT BEARING,57.98mm ID x 63mm OD x 18mm W

3шт.

3055007R1

BUSHING

10шт.

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

8шт.

31

3144436R1

CAP

PACKAGE, consists of: 1 cap, 2 bolts and 1 manual

1шт.

32

3144438R91

BEARING ASSY

PACKAGE, consists of: 1 cap, 2 bolts and 1 manual

2шт.

33

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

8шт.

Выбрано товаров: 50
