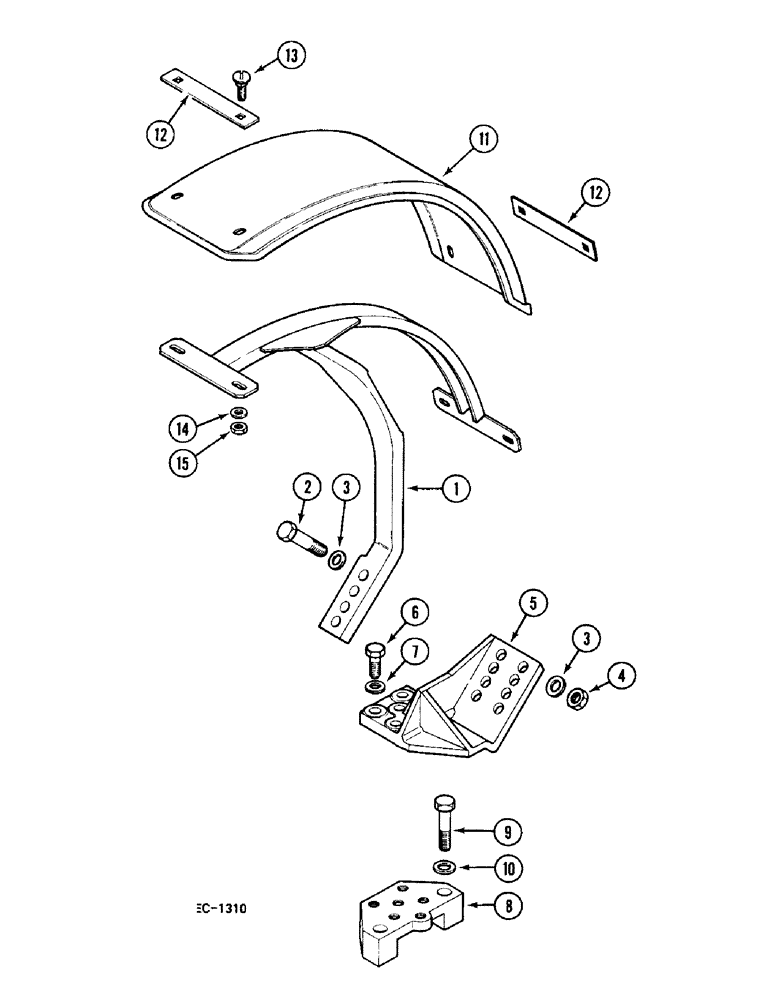

Запчасти Case IH 248 (9-930) - FRONT SPLASH SHIELDS - 4 WHEEL DRIVE, 258, 485, 585 (09) - CHASSIS

1

1956724C1

SUPPORT

1шт.

1

90007C1

HOLDER

SUPPORT right, model 258 and 585 tractor

1шт.

1

1956725C1

SUPPORT

1шт.

1

90008C1

HOLDER

SUPPORT left, model 258 and 585 tractor

1шт.

2

30071R1

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

Hex, M16 x 75, 10.9

4шт.

3

3141764R1

WASHER

8шт.

4

934773R1

NUT,M16, Cl 10

4шт.

5

89984C1

SUPPORT

BRACKET right

1шт.

5

89987C1

SUPPORT

BRACKET left

1шт.

6

30405R1

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

BOLT, M14 x 40 mm

6шт.

7

30408R1

WASHER,M12 x 28.5 x 3, HT

15 mm

6шт.

8

1328740C1

SUPPORT

2шт.

9

30071R1

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

Hex, M16 x 75, 10.9

4шт.

10

3141764R1

WASHER

4шт.

11

89990C1

FENDER

SHIELD splash

2шт.

11

89992C1

FENDER

SHIELD splash, model 258 and 585 tractor

2шт.

11

90002C1

FENDER

SHIELD splash, model 258 and 585 tractor

2шт.

12

89991C1

BAR

4шт.

12

90001C1

BAR

200 mm, model 258 and 585 tractor

4шт.

13

905159R1

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT, M8 x 25 mm

8шт.

14

3058250R1

WASHER

8 mm

8шт.

15

717457R1

NUT,M8 x 1.25, Thin

M8

8шт.
