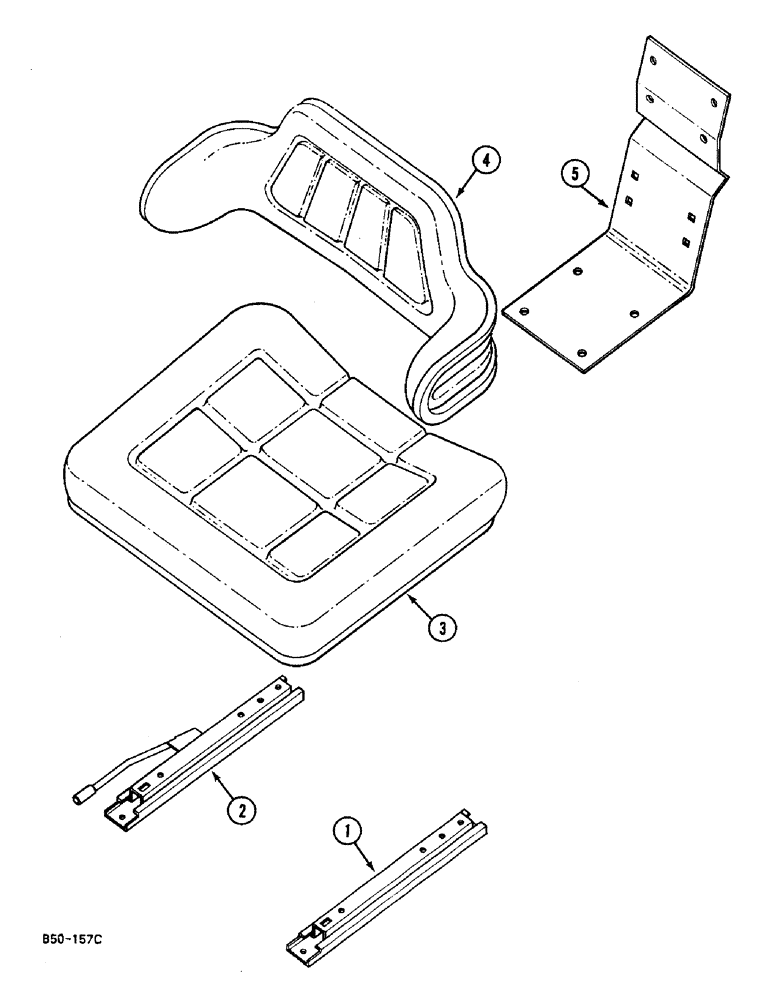

Запчасти Case IH 248 (9-920) - SEAT AND SLIDES - "GRAMMER" (09) - CHASSIS

3121423R92

SEAT

ASSEMBLY, 113182 P.V.C.

1шт.

3121424R92

SEAT ASSY.

cloth, 113183

1шт.

3123562R1

SPACER

4шт.

3123563R1

SCREW

4шт.

3123564R1

LOCK WASHER

4шт.

1

3224898R1

SLIDE GUIDE

RAIL

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

4шт.

934676R1

LOCK WASHER,M8

8 mm

4шт.

934894R1

SCREW,M8 x 20mm, Cl 8.8

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

2шт.

934674R1

WASHER,M10.5 x 30 x 2.5

2шт.

905424R1

WASHER,M10.5 x 25 x4

2шт.

2

3224897R1

RAIL

with handle

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

2шт.

934675R1

WASHER,M8 x 16 x 1.6

1шт.

934894R1

SCREW,M8 x 20mm, Cl 8.8

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

2шт.

934674R1

WASHER,M10.5 x 30 x 2.5

2шт.

3

3125997R1

CUSHION, SEAT

P.V.C.

1шт.

3

3125999R1

CUSHION, SEAT

cloth

1шт.

3125922R1

NUT

4шт.

4

3125996R1

BACKREST

P.V.C.

1шт.

4

3125998R1

BACKREST

cloth

1шт.

5

3125995R1

FRAME

1шт.
