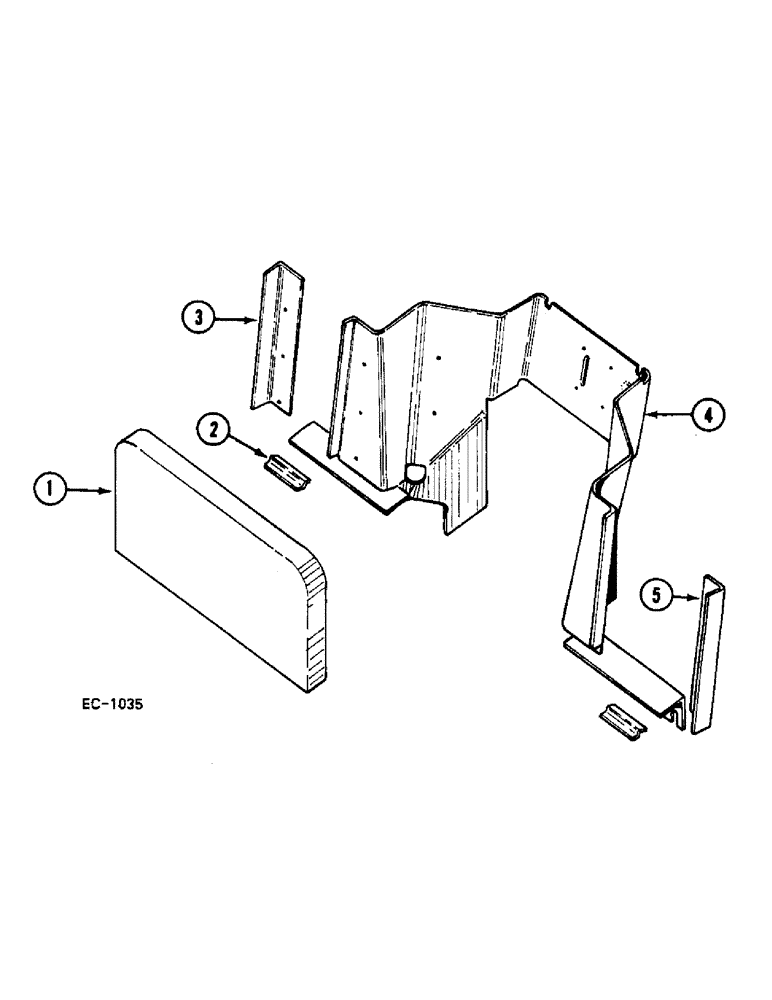

Запчасти Case IH 248 (9-904) - INSULATORS - SAFETY CAB (09) - CHASSIS

1

3118459R1

INSULATOR

1шт.

2

not used

1шт.

3

3123074R1

RETAINER

right

1шт.

3116384R1

SELF-TAP SCREW

3шт.

4

3123072R6

FLOOR MAT

INSULATOR

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

2шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

optional

2шт.

30481R1

WASHER,M5 x 10 x 1

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

120392

WASHER,1/4", SAE

4шт.

4

3123088R4

INSULATOR

version with Sekura roof heater

1шт.

167214

CHAIN

4шт.

5

3123073R1

RETAINER

SPARE PART left

1шт.

3116384R1

SELF-TAP SCREW

3шт.
