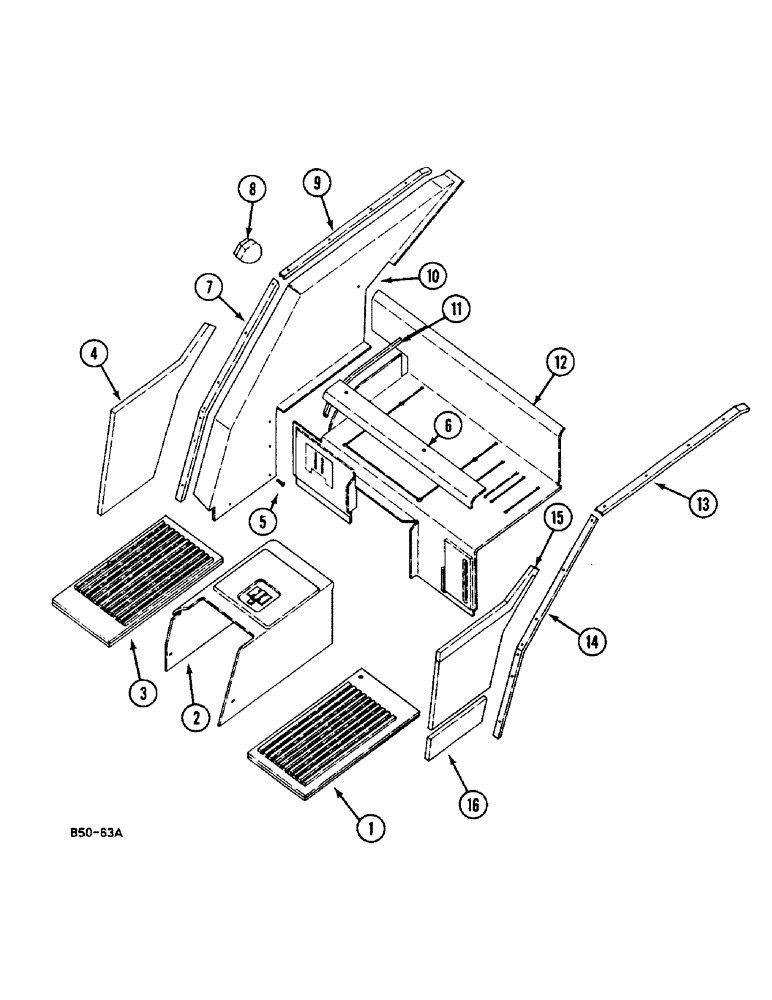

Запчасти Case IH 248 (9-900) - CAB INSULATION (09) - CHASSIS

1

3116832R2

INSULATOR

left

1шт.

2

3116843R2

INSULATOR

1шт.

22470R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

120392

WASHER,1/4", SAE

2шт.

3

3123069R3

INSULATOR

right

1шт.

4

3123079R1

INSULATOR

door, RH

1шт.

5

3118451R1

CLIP,ELECTRICAL

STUD

18шт.

6

3129275R1

RETAINER

1шт.

7

3118454R2

RETAINER

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

7шт.

8

3121165R1

PLUG

2шт.

9

3118452R3

RETAINER

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

4шт.

10

3118450R1

INSULATOR

right

1шт.

10

3129279R2

INSULATOR

left

1шт.

11

1265293C1

GASKET

MOLDING bulk length

1шт.

12

3129280R2

INSULATOR

1шт.

13

3118452R3

RETAINER

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

4шт.

14

3118454R2

RETAINER

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

7шт.

15

3123078R1

INSULATOR

door, LH

1шт.

16

3118457R1

INSULATOR

door, LH

1шт.
