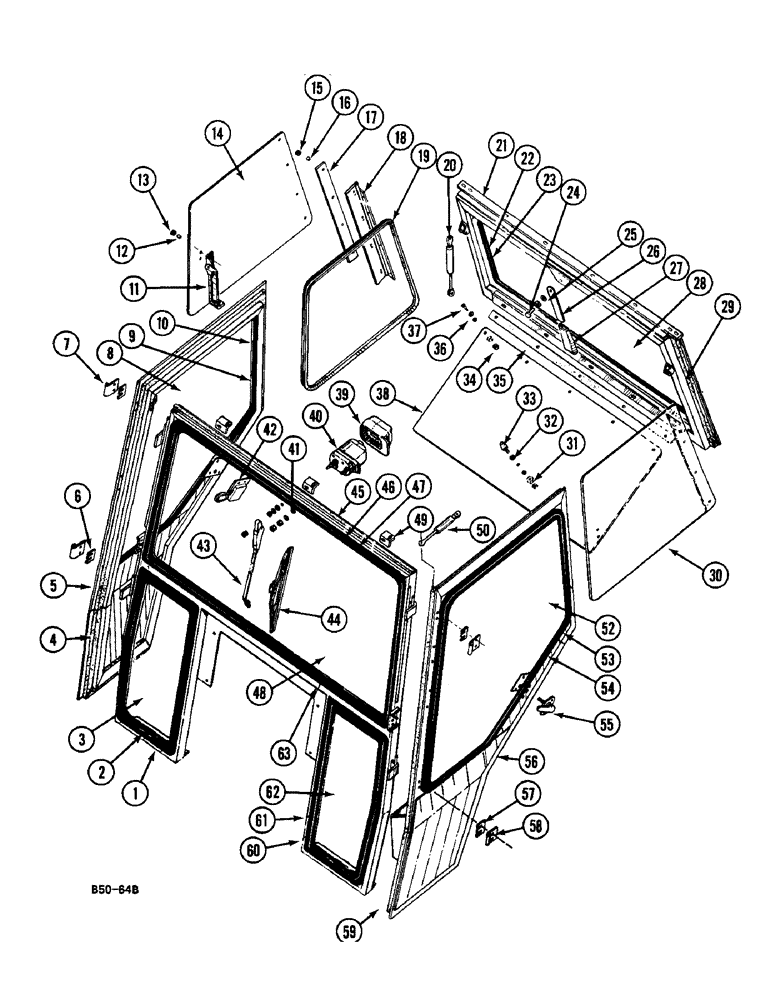

Запчасти Case IH 248 (9-884) - SAFETY CAB (09) - CHASSIS

1

3113560R1

SEAL

right

1шт.

2

1265295C1

GASKET

STRIP filling, bulk length

1шт.

3

3113558R1

GLASS

1шт.

4

3123064R1

SEAL

upper

1шт.

4

3123065R1

SEAL ASSY.

rear

1шт.

4

3123066R1

DOOR SEAL

lower

1шт.

4

3123067R1

SEAL

front

1шт.

3123024R95

DOOR ASSY.

right, consists of: Ref. 4, 5, 8, 9, 42, 54 and 55

1шт.

5

3123026R3

DOOR

1шт.

6

3116641R1

BAR

1шт.

7

3116642R1

SUPPORT

2шт.

120392

WASHER,1/4", SAE

4шт.

3116643R1

LOCK NUT

4шт.

179795

TILLAGE BLADE

4шт.

8

1500610C1

GLASS

1шт.

9

3123034R1

SEAL

1шт.

10

1265295C1

GASKET

STRIP filling, bulk length

1шт.

11

3123051R1

LEVER ASSY.

right

1шт.

11

3123050R1

LEVER ASSY.

left

1шт.

23927R1

SCREW

4шт.

120392

WASHER,1/4", SAE

4шт.

3116643R1

LOCK NUT

4шт.

12

3123049R1

SPACER

4шт.

13

3118661R1

GROMMET

4шт.

14

3123655R1

GLASS

1шт.

15

3118661R1

GROMMET

8шт.

16

3123047R1

SPACER

8шт.

17

3123048R1

RUBBER SEAL

2шт.

18

3123046R1

HINGE

right

1шт.

18

3123045R1

HINGE

left

1шт.

23927R1

SCREW

8шт.

120392

WASHER,1/4", SAE

16шт.

3116643R1

LOCK NUT

8шт.

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

10шт.

19

1265292C1

STRIP

SEAL, bulk length

1шт.

20

3123040R1

GAS STRUT,283.5mm Extended, 191.3mm Compressed

2шт.

3118431R1

CLEVIS PIN

2шт.

3123042R1

WAVE WASHER

2шт.

3053111R1

RING, SNAP,M10, Ext

RING SNAP retaining

4шт.

21

3123721R93

GLASS

WINDOW ASSEMBLY, models 385, 485, 585 tractor

1шт.

21

98603C91

GLASS

WINDOW ASSEMBLY, with Ref. 22, 23, 28 and 29, model 248 and 258 tractor

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

120393

BEARING WASHER,5/16", SAE

6шт.

103320

LOCK WASHER,5/16"

6шт.

22

3112496R2

SEAL

1шт.

23

1265295C1

GASKET

STRIP filling, bulk length

1шт.

24

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3121174R1

CAP

COVER

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

25

536847R1

BELLEVILLE WASHER

1шт.

26

3118655R1

HANDLE

1шт.

27

3118656R1

GRIP

1шт.

28

3112495R2

GLASS

models 385, 485, 585 tractor

1шт.

28

98604C91

GLASS

model 248 and 258 tractor

1шт.

29

3112498R1

SEAL, GLASS

2шт.

30

3123655R1

GLASS

1шт.

31

3118685R1

LOCK NUT

1шт.

32

3118659R1

GROMMET

1шт.

33

3118658R1

DAMPER

1шт.

120392

WASHER,1/4", SAE

1шт.

34

3119440R1

LOCK NUT

5шт.

35

3118662R1

RUBBER SEAL

1шт.

36

3118661R1

GROMMET

5шт.

37

3118660R1

BOLT

5шт.

120392

WASHER,1/4", SAE

5шт.

120394

WASHER,3/8", SAE

5шт.

38

3118657R1

GLASS

1шт.

39

1328081C1

GUARD

Protector

1шт.

40

1328080C91

WIPER MOTOR

MOTOR, WIPER MOTOR ASSEMBLY

1шт.

1328092C1

CABLE

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

1шт.

3125822R1

CABLE CLIP

SPARE PART

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

41

3112426R1

GROMMET

1шт.

42

3112461R91

HANDLE

ASSEMBLY, right

1шт.

42

3112460R91

HANDLE

ASSEMBLY, left

1шт.

178716

SCREW,#10 - 32 x 3/8"

8шт.

120391

WASHER,#10

8шт.

43

1328079C1

WIPER ARM

ARM, WIPER

1шт.

1328078C1

CONNECTION

1шт.

44

1328077C1

WIPER BLADE

BLADE, WIPER

1шт.

46

3113555R1

SEAL

1шт.

47

1265295C1

GASKET

bulk length

1шт.

48

3113554R1

GLASS

1шт.

49

3113566R1

ANGLE

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

6шт.

50

3123040R1

GAS STRUT,283.5mm Extended, 191.3mm Compressed

2шт.

3123042R1

WAVE WASHER

2шт.

3125246R1

RETAINER

2шт.

3053111R1

RING, SNAP,M10, Ext

RING SNAP retaining

2шт.

51

not used

1шт.

52

1500610C1

GLASS

1шт.

53

3123033R1

SEAL

1шт.

54

1265295C1

GASKET

STRIP filling, bulk length

1шт.

55

3113466R91

HANDLE

2шт.

3112458R1

SCREW

4шт.

120217

LOCK WASHER,#10

4шт.

3112459R1

NUT

4шт.

3123023R95

DOOR ASSY.

left, consists of: Ref. 42, 52-56, 59

1шт.

56

3123025R3

DOOR

1шт.

57

3116641R1

BAR

1шт.

58

3116642R1

SUPPORT

2шт.

120392

WASHER,1/4", SAE

1шт.

3116643R1

LOCK NUT

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

59

3123064R1

SEAL

upper

1шт.

3123065R1

SEAL ASSY.

rear

1шт.

59

3123066R1

DOOR SEAL

lower

1шт.

59

3123067R1

SEAL

front

1шт.

60

3113559R1

SEAL

left

1шт.

61

1265295C1

GASKET

STRIP filling, bulk length

1шт.

62

3113558R2

GLASS

1шт.

3123013R93

WINDSHIELD

screen, consists of: Ref. 1 thru 3, 41, 45 thru 48 and 60 thru 63

1шт.

63

3123014R1

FRAME

1шт.

NLS

NO LONGER SERVICED

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

4шт.

120394

WASHER,3/8", SAE

4шт.

3112426R1

GROMMET

2шт.

1092996R1

PRODUCT GRAPHIC

English

1шт.

1093010R1

DECAL

SPARE PART GRAPHIC product, Francais

1шт.

1093012R1

DECAL

GRAPHIC product, Espanol

1шт.

1093009R1

DECAL

GRAPHIC product, Deutsch

1шт.

1093013R1

PRODUCT GRAPHIC

Svenskt

1шт.

1093014R1

DECAL

GRAPHIC product, Suomi

1шт.

1093011R1

DECAL

GRAPHIC product, Norge

1шт.

1093015R1

PRODUCT GRAPHIC

Dansk, cab warning

1шт.

1093182R1

CAUTION DECAL

GRAPHIC product, English

1шт.

1093183R1

DECAL

GRAPHIC product, Francais

1шт.

1093184R1

PRODUCT GRAPHIC

Espanol

1шт.

1093185R1

DECAL

GRAPHIC product, Deutsch

1шт.

1093186R1

DECAL

GRAPHIC product, Svenskt

1шт.

1093187R1

DECAL

GRAPHIC product, Suomi

1шт.

1093188R1

DECAL

GRAPHIC product, Norge, caution

1шт.
